Product Details:
|
| Color: | White/Red/Black/Orange/Green/Blue | Material: | Nylon |
|---|---|---|---|
| Rated Power: | 100W/200W/300W/400W | Feature: | Low Start-up Wind Speed |
| Voltage: | 12V/24V | Product Name: | G Type Vertical Axis Wind Turbine Generator |
| High Light: | G Type VAWT Wind Turbine,200W vawt wind generator,24V vertical axis wind turbine |
||

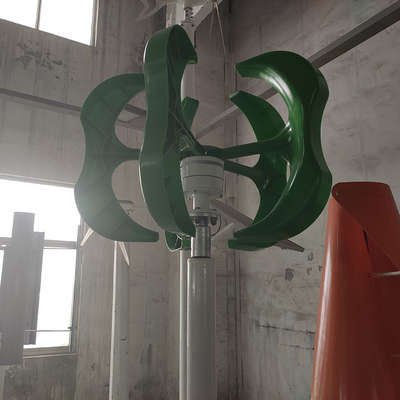

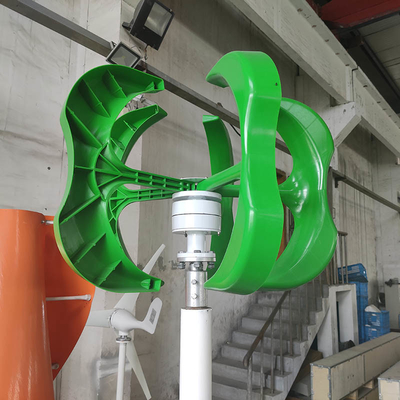

OEM ODM Flange Connection 50W 100W 200W 400W 12V 24V G Type Vertical Wind Turbine Generator for Home Use.
Focus on the development of solar power, wind-solar power generation system integration,the business consists of wind and solar monitoring system, Wind Turbine Grid and off-grid system PV system equipment design and procurement, complete sets, feasibility study and installation commissioning .
A vertical axis wind turbine (or VAWT) has a main rotor shaft arranged vertically. An advantage of this arrangement is that the turbine does not need to be pointed into the wind to be effective, which is an advantage in locations where the wind direction is highly variable. This is also an advantage when the turbine is integrated into a building, as it is inherently less maneuverable. Additionally, the generator and gearbox can be placed close to the ground, using direct drive from the rotor assembly to the ground gearbox, improving maintenance accessibility.
| Model | SH-G100 | SH-G200 | SH-G300 | SH-G400 |
| Rated Power | 100W | 200W | 300W | 400W |
| Maximum Power | 120W | 220W | 320W | 420W |
| Voltage | 12V/24V | 12V/24V | 12V/24V | 12V/24V |
| Rotor Diameter | 0.9m | 0.9m | 0.9m | 0.9m |
| Weight | 8kg | 8.5kg | 9kg | 9.5kg |
| Blade Quantity | 5 | 5 | 5 | 5 |
| Start-up Wind Speed | 2.5m/s | 2.5m/s | 2.5m/s | 2.5m/s |
| Rated Wind Speed | 12m/s | 12m/s | 12m/s | 12m/s |
| Survival Wind Speed | 45m/s | 45m/s | 45m/s | 45m/s |
| Blade Material | Nylon Fiber | Nylon Fiber | Nylon Fiber | Nylon Fiber |
| Generator Housing Material | Aluminum Alloy | |||
| Packing | Carton | |||
| Generator Type | Three phase AC permanent magnet | |||
| alnico magnet | NdFeB | |||
| Working Temperature | -40℃-80℃ | |||
1. Low Start-up Wind Speed
2. Flange Connection with easy installation
3. Three-phase Magnetic Levitation Generator
4. Factory Direct Supply
5. Nylon Blade With Optimized Curve Design
6. Low Start-up Wind Speed
1. Boat&Yacht
2. Wind&Solar Hybrid System
3. Water Pumping
4. Telecommunication Tower
5. Street Lamp
6. Household Use
FAQ
Q1. Can I have a sample order for wind turbine generator?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 7-10 days for Sample preparing ,15-20 working days for mass production.
Q3. Do you have any MOQ limit for order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline,train and sea shipping also optional.
Q5. How to proceed an order for wind turbine generator?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Then in the end we arrange the production.
Q6. Is it OK to print my logo on wind turbine product?
A: Yes. Please inform us formally before our production.
Q7: Do you offer warranty for the products?
A: Yes, we offer 5 years warranty to our products.
Q8:Customization available?
A:Yes,further requirement shall be confirmed before production.
