Product Details:
|
Product Name: | Wind Turbine Complete System | Rated Power: | 1KW-1MW |
---|---|---|---|
Rated Voltage: | 12V 24V 48V | Battery: | Lithium |
Warranty: | 5 Years | Protection: | IP54 |
High Light: | 220V Wind Turbine Complete System,Shenghuang Wind Turbine Complete System,IP54 complete wind generator system |
Factors to Consider
Hybrid solutions and meeting energy needs/can be achieved by adding wind or solar energy. Assess and future electricity needs in advance and should consider the following factors:
1. Various burdens: lighting, refrigeration, small appliances, etc.
2. Usage time: usage time, power level and frequency
3. Average time: Continuous load usually in use or standby
4. Minimal time consuming: always running continuously
5. Additional requirements may be required: (i.e. additional auxiliary components may be required)
Technical Parameter | ||
NO. | Item | Parameters |
1.Performance | Type | LiFePO4 Battery |
Nominal Voltage | 51.2V | |
Rated Capacity | 200Ah | |
Operating Voltage Range | 42V-57.0V(Typical:51.2V) | |
Charging Voltage | 57.0V | |
Discharge cut-off voltage | 42V | |
Charging Current(Max.) | 60A | |
Discharge Current(Max.) | 100A | |
Width | 435mm | |
Height | 875mm | |
Depth | 190mm | |
Weight | 102kg | |
2.Function | Installation Method | Wall-mounted |
Communication | RS485 | |
Terminal stud | M8 Bolt | |
Alarm&protection | Over voltage,under voltage,short circuit,over current,over temperature,low temperature protection,etc. | |
3.Working Condition | Cooling Mode | Automatic cold and hot |
Altitude | ≤4000m | |
Humidity | 15%-85% | |
Operating Temperature |
Charge 0℃-45℃ Discharge -10℃-60℃ |
|
Recommended charge temperature | 15℃-40℃ | |
Recommended discharge temperature | 15℃-40℃ | |
Recommended storage temperature | 0℃-35℃ |
Description of Product
1. What is wind&solar hybrid system?
Overview. The term wind hybrid system describes any combination of wind energy with one or more additional sources of electricity generation (e.g. biomass, solar or a generator using fossil fuels). Hybrid system are very often used for stand-alone applications at remote sites.

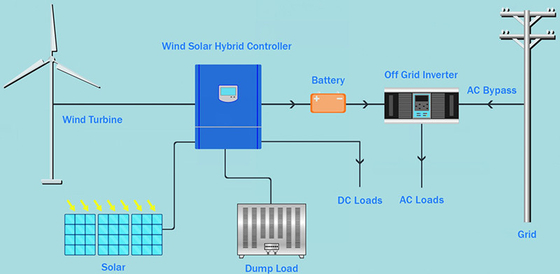

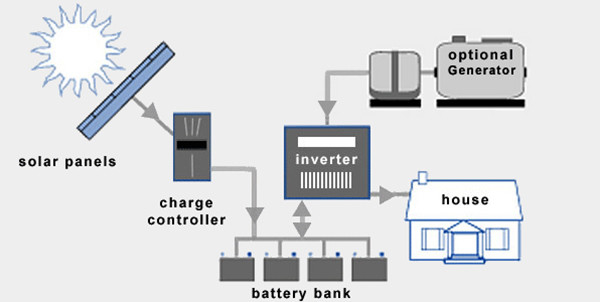

2. How does wind&solar hybrid system work?
A wind&solar hybrid power system uses solar insolation and wind energy to produce electricity. As both solar radiation and wind speed vary throughout the year, neither solar nor wind based system can provide reliable electricity individually.
3. Are residential wind turbines worth it?
Small wind turbines are a cost-effective way to generate electricity for your home. However, many homes are not suitable for installing wind turbines for several reasons. First, in order to generate enough power to make the upfront investment worthwhile, wind turbines need to be located in windy locations.
4. What are the advantages of hybrid system?
Hybrid systems provide increased flexibility by allowing you to select the specific instruments for your system regardless of the bus and to expand the system as system requirements change.
