Product Details:
|
| Type: | Vertical Axis Wind Power Generator | Material: | Aluminum Alloy |
|---|---|---|---|
| Rated Power: | 2000W | Rated Voltage: | 48V/96V/220V/380V |
| Color: | White/Red/Blue | Protection: | ≤50db |
| High Light: | 10kw vertical axis wind mill,10kw Vertical Axis Wind Turbine,Vertical Axis Wind Turbine For Home |
||
Aluminum Alloy 1kw 2kw 5kw 10kw 20kw 30kw H Type Vertical Wind Turbine Multiple Color For Home Use

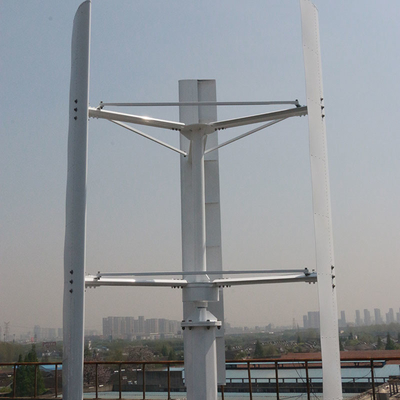

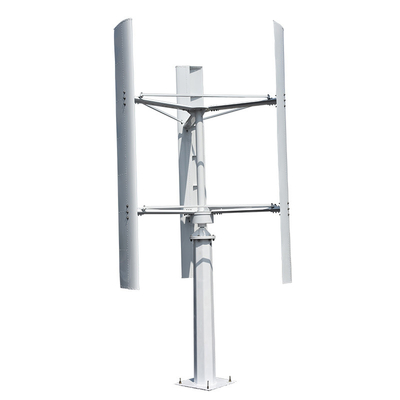

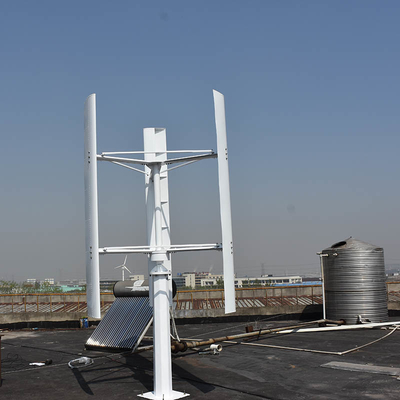

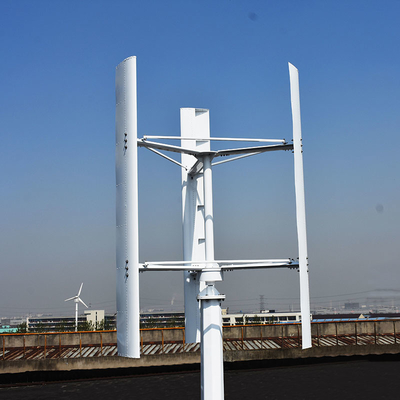

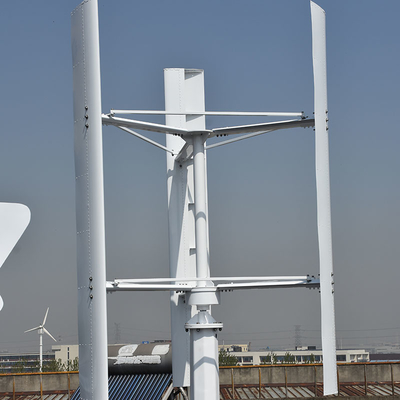

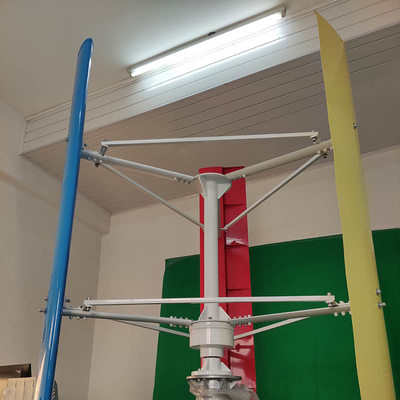

H Vertical Axis Wind Turbine Generator is a major type of vertical wind power generator products,for the H series,the output capacity covering 1kw-30kw,with voltage range of 12V/24V/48V/96V/120V/220V/380V.The default model has 3 blades which are made up of Aluminum Alloy,however,apart from the default blade options.Jiangsu Shenghuang is able to customize the blade quantity as per client's need.In addition,it adopts three-phase Coreless Permanent Magnet Syncronous Generator,which comes with low starting torgue.
| Model | SH-H1KW | SH-H2KW | SH-H3KW | SH-H5KW | SH-H10KW | SH-H20K | SH-H30K |
| Rated Power | 1000W | 2000W | 3000W | 5000W | 10kw | 20KW | 30KW |
| Maximum Power | 1200W | 2500W | 3500W | 5500W | 12kw | 22KW | 33KW |
| Rated Voltage | 24V/48V | 48V-220V | 48V-220V | 96V-220V | 220V-380V | 120v/220V/380V | 120V/220V/380V |
| Start-up Wind Speed | 2.3m/s | 2.3m/s | 2.3m/s | 2.3m/s | 2.3m/s | 2.3m/s | 2.3m/s |
| Rated Wind Speed | 11m/s | 11m/s | 11m/s | 12m/s | 12m/s | 12m/s | 12m/s |
| Rated RPM | 230 | 230 | 230 | 230 | 150 | 150 | 150 |
| Net Weight | 98kg | 170kg | 190kg | 250kg | 320kg | 390kg | 460kg |
| Wheel Diameter | 1.5m | 2m | 2.4m | 3m | 5m | 6m | 8m |
| Blades Height | 2m | 2.8m | 3.2m | 3.6m | 6m | 7m | 10m |
| Number of Blades | 3 Blades | ||||||
| Blades Material | Aluminum Alloy | ||||||
| Survival Wind Speed | 45m/s | ||||||
| Generator Type | 3 Phase Permanent Magnet AC Synchronous Generator | ||||||
| Magnet Material | NdFeB | ||||||
| Gegree of Protection | IP54 | ||||||
| Yaw Mode | Electromagnent | ||||||
| Work Temperature | -40℃-+80℃ | ||||||
| Design Life | 20 Years | ||||||
| Certification | CE | ||||||
Feature
1. Low Start-up Wind Speed
2. Three Blades
3. One year Warranty
4. Flange Connection with easy installation
5. Certified with:CE, RoHS and ISO 9001 2000
6. High-efficiency coreless disc generator
Application
1. Marine,&Boat
2. Streetlights
3. Home, Openning Plaza lighting.
4. Wind&Solar Hybrid System
5. Monitoring device
6. Factory
FAQ
Q1. Can I have a sample order for wind turbine generator?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 7-10 days for Sample preparing ,15-20 working days for mass production.
Q3. Do you have any MOQ limit for order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline,train and sea shipping also optional.
Q5. How to proceed an order for wind turbine generator?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Then in the end we arrange the production.
Q6. Is it OK to print my logo on wind turbine product?
A: Yes. Please inform us formally before our production.
Q7: Do you offer warranty for the products?
A: Yes, we offer 5 years warranty to our products.
Q8:Customization available?
A:Yes,further requirement shall be confirmed before production.
