Product Details:
|

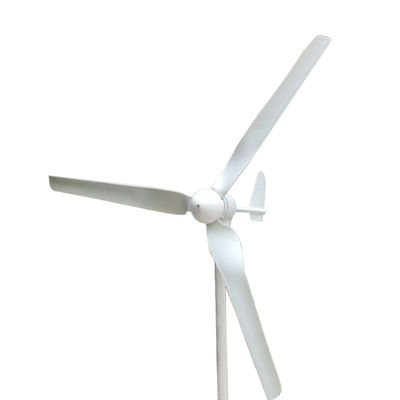

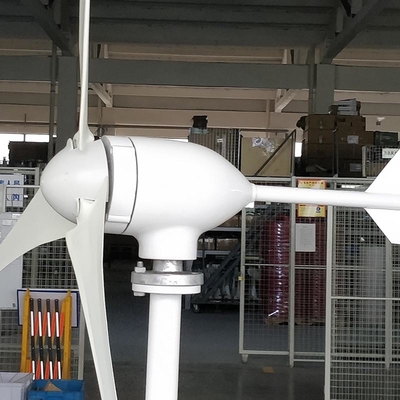

| Product Name: | Small Horizontal Wind Turbine | Rated Power: | 600W/800W/1000W/2000W |
|---|---|---|---|
| Blade Material: | Nylon/Glass Fibre | Generator Type: | Three Phase Permanent Magnet Generator |
| Rated Voltage: | 24V/48V/96V/220V | Starting Wind Speed: | 3m/s |
| High Light: | White Small Horizontal Wind Turbine,horizontal wind turbine design 600W,hawt wind turbine design 1000W |
||
Focus on the development of solar power, wind-solar power generation system integration,the business consists of wind and solar monitoring system, Wind Turbine Grid and off-grid system PV system equipment design and procurement, complete sets, feasibility study and installation commissioning .
A vertical axis wind turbine (or VAWT) has a main rotor shaft arranged vertically. An advantage of this arrangement is that the turbine does not need to be pointed into the wind to be effective, which is an advantage in locations where the wind direction is highly variable. This is also an advantage when the turbine is integrated into a building, as it is inherently less maneuverable. Additionally, the generator and gearbox can be placed close to the ground, using direct drive from the rotor assembly to the ground gearbox, improving maintenance accessibility.
Feature
1. Low Start-up Wind Speed
2. Flange Connection With Easy Installation
3. Certified with:CE, RoHS and ISO 9001 2000
4. High-efficiency generator
5. Blade Material:Nylon Fiber
6. Generator Type:Three phase AC Permanent Magnet Generator
Product Parameter
| Model | SH-A500 | SH-A600 | SH-A800 | SH-A1000 | SH-A2000 |
| Rated Power | 500W | 600W | 800W | 1000W | 2000W |
| Maximum Power | 530W | 630W | 830W | 1200W | 2200W |
| Rated Voltage | 24V/48V/96V | 24V/48V/96V | 48V/96V | 48V/96V | 48V/96V |
| Quantity of baldes | 3/5 piece | 3/5 piece | 3/5 piece | 3 piece | 3 piece |
| Packing | Carton | Wooden Box | Wooden Box | Wooden Box | Wooden Box |
| Start-up Wind Speed | 3m/s | ||||
| Rated Wind Speed | 11m/s | ||||
| Blade Material | Nylon Fiber | ||||
| Body Material | Carbon Steel | ||||
| Generator Type | Three-phase AC Permanent magnet generator | ||||
| Magnet Material | NdFeB | ||||
| Working temperature | -40℃-80℃ | ||||
Application
1. Marine,&Boat
2. Streetlights
3. Home, Openning Plaza lighting.
4. Wind&Solar Hybrid System
5. Monitoring device
6. Factory
FAQ
Q1. Can I have a sample order for wind turbine generator?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 7-10 days for Sample preparing ,15-20 working days for mass production.
Q3. Do you have any MOQ limit for order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline,train and sea shipping also optional.
Q5. How to proceed an order for wind turbine generator?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Then in the end we arrange the production.
Q6. Is it OK to print my logo on wind turbine product?
A: Yes. Please inform us formally before our production.
Q7: Do you offer warranty for the products?
A: Yes, we offer 5 years warranty to our products.
Q8:Customization available?
A:Yes,further requirement shall be confirmed before production.
