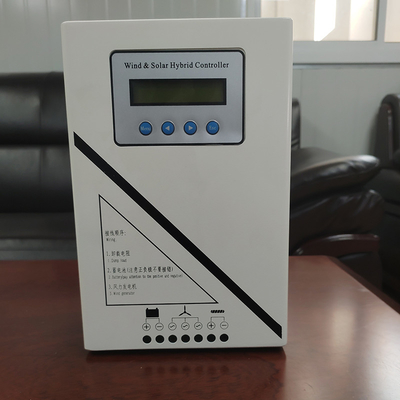

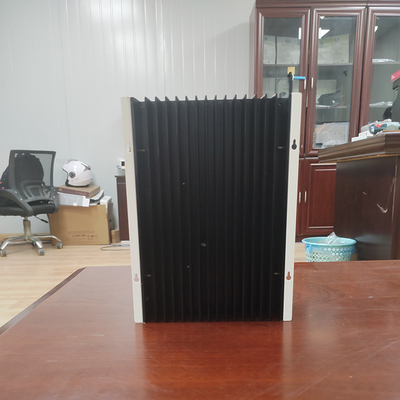

Modern Design 12V/24V/48V 400W 800W 1000W MPPT Wind Charge Controller For Home Use

Company Profile

Jiangsu Shenghuang New Energy Technology Co..Ltd. is located in Wuxi Liangxi district Jinshan North science and Technology Industrial Park, is a factory commitment to wind generators, solar monitoring system, wind and solar complementary monitoring system, photovoltaic system, wind and solar complementary controller,inverter,Gel battery, Lithium Battery Development and integrated application of green energy saving and environmental protection technology enterprises.

Focus on the development of solar power, wind-solar power generation system integration,the business consists of wind and solar monitoring system, Wind Turbine Grid and off-grid system PV system equipment design and procurement, complete sets, feasibility study and installation commissioning.

A vertical axis wind turbine (or VAWT) has a main rotor shaft arranged vertically. An advantage of this arrangement is that the turbine does not need to be pointed into the wind to be effective, which is an advantage in locations where the wind direction is highly variable. This is also an advantage when the turbine is integrated into a building, as it is inherently less maneuverable. Additionally, the generator and gearbox can be placed close to the ground, using direct drive from the rotor assembly to the ground gearbox, improving maintenance accessibility.

Product Feature

Functions and Features
BOOST and BUCK function in one
(If do not buy Boost & Buck Wind Solar Controller, there is no this function)

Once wind generator voltage is lower than battery voltage, controller starts boost module automatically. Wind generator voltage is increased to the charging voltage, and it is boost charging. When wind generator voltage is higher than battery voltage, in order to acquire max power, buck module of controller will be started, the generator is buck charging.Loads lower the revolution speed of wind generator, when it is breeze. That decreases the output power of wind generator. Through max current tracking (MCT) and max power point tracking (MPPT), output of wind generator is stabilized at the max balance of wind energy utilization. Combine with boost and buck function, wind energy utilization is increased.

BOOST function
(If do not buy Boost Wind Solar Controller, there is no this function)
Once wind generator voltage is lower than battery voltage, controller starts boost module automatically to charge to battery.

BUCK function
(If do not buy Buck Wind Solar Controller, there is no this function)
Once wind generator voltage is higher than battery voltage, controller starts buck module automatically to charge to battery.

Electrical Parameter

Electrical Parameter

Protect wind generator from over-current and speed

Once the wind current is over the setting max current and speed,PWM intelligent dumping will start automatically. That protect wind generator. > Intelligent limiting of batteries max current wind generator external dump load resistance

Battery Temperature Compensation Function

(This function is alternative)

RS232 or RS485 interface (This function needs additional payment)
By RS232 or RS485 serial interface communication, you could monitor the whole system, storage and analyze data. Program could be upgraded by serial interface. Connect PC and controller by serial interface. You could set the parameters on PC and controller simultaneously. Software is free,easy to operate and no need to be installed.

LCD display
1. Browse the parameters: charging state, wind generator parameters, battery parameters, etc.
2. Set parameters of wind generator and battery, over-voltage and under-voltage protection of battery,charging function and manual brake function of wind generator, etc.
