Product Details:
|
| Product Name: | On-grid/Off-grid Power System | Rated Power: | 1kw-1MW |
|---|---|---|---|
| Rated Voltage: | 12V/24V/48V/96V/220V/380V | Battery: | Lithium/Gel |
| Warranty: | 5 Years | Type: | On-grid/Off-grid/Wind&Solar Hybrid |
| High Light: | 96V On Grid Power System,On Grid Power System 200Ah,220V Off Grid Power Solutions |
||
Description of Product
1. What is wind&solar hybrid system?
Overview. The term wind hybrid system describes any combination of wind energy with one or more additional sources of electricity generation (e.g. biomass, solar or a generator using fossil fuels). Hybrid system are very often used for stand-alone applications at remote sites.
2. How does wind&solar hybrid system work?
A wind&solar hybrid power system uses solar insolation and wind energy to produce electricity. As both solar radiation and wind speed vary throughout the year, neither solar nor wind based system can provide reliable electricity individually.
3. What is hybrid solar system?
A hybrid solar system is grid-tied with battery storage. They come with a special 'smart' inverter that can transmit direct current (DC) power to and from your batteries, and channel alternating current (AC) power between the grid and your home when necessary.
4. What are the advantages of hybrid system?
Hybrid systems provide increased flexibility by allowing you to select the specific instruments for your system regardless of the bus and to expand the system as system requirements change.
5. What does a typical wind&solar hybrid system consist of?
Wind and solar resources are complimentary both seasonally and diurnally, and off-grid hybrid wind/solar systems provide better system reliability, more uniform power generation, and reduced depth of battery discharge. Resource and load matching is critical for off-grid system design.

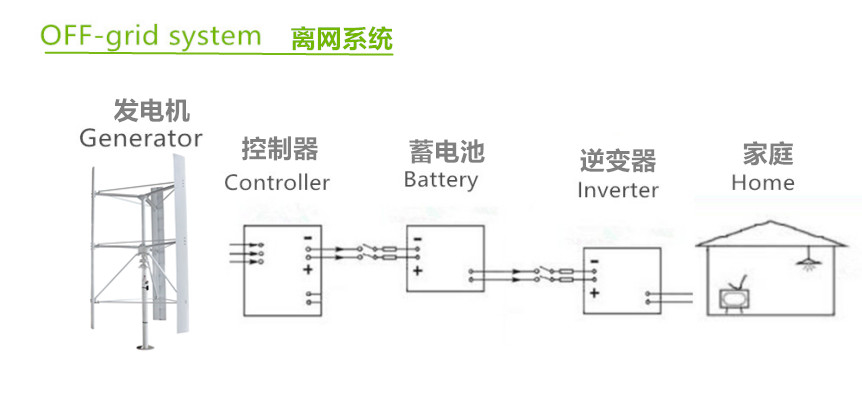

In addition to a sufficient wind resource, an off-grid distributed wind system typically consists of a wind turbine, tower,solar panels,mounting bracket for solar panels,charge controller, inverter and batteries.Each system should be uniquely designed for the particular application and load requirements.
6. Why would you need a battery bank for off-grid system?
As stated previously, wind turbines are generally used to charge battery banks or feed an electrical grid. Both of these applications required dump loads but let's examine the battery bank application in more detail. A wind turbine will continue to charge a battery a bank until the battery bank is fully charged.
| Technical Parameter | ||
| NO. | Item | Parameters |
| 1.Performance | Type | LiFePO4 Battery |
| Nominal Voltage | 51.2V | |
| Rated Capacity | 200Ah | |
| Operating Voltage Range | 42V-57.0V(Typical:51.2V) | |
| Charging Voltage | 57.0V | |
| Discharge cut-off voltage | 42V | |
| Charging Current(Max.) | 60A | |
| Discharge Current(Max.) | 100A | |
| Width | 435mm | |
| Height | 875mm | |
| Depth | 190mm | |
| Weight | 102kg | |
| 2.Function | Installation Method | Wall-mounted |
| Communication | RS485 | |
| Terminal stud | M8 Bolt | |
| Alarm&protection | Over voltage,under voltage,short circuit,over current,over temperature,low temperature protection,etc. | |
| 3.Working Condition | Cooling Mode | Automatic cold and hot |
| Altitude | ≤4000m | |
| Humidity | 15%-85% | |
| Operating Temperature |
Charge 0℃-45℃ Discharge -10℃-60℃ |
|
| Recommended charge temperature | 15℃-40℃ | |
| Recommended discharge temperature | 15℃-40℃ | |
| Recommended storage temperature | 0℃-35℃ | |
