Product Details:
|
| Type: | Vertical Axis Wind Power Generator | Material: | Aluminum Alloy |
|---|---|---|---|
| Rated Power: | 2000W | Rated Voltage: | 48V/96V/220V/380V |
| Blade Quantity: | 3 | Protection: | IP54 |
| High Light: | 5kw vertical axis wind turbine,Vertical Air Turbine 1kw,15KW vertical axis wind turbine generator |
||
Company Profile
Jiangsu Shenghuang New Energy Technology Co..Ltd. is located in Wuxi Liangxi district Jinshan North science and Technology Industrial Park, is a factory commitment to wind generators, solar monitoring system, wind and solar complementary monitoring system, photovoltaic system, wind and solar complementary controller,inverter,Gel battery, Lithium Battery Development and integrated application of green energy saving and environmental protection technology enterprises.

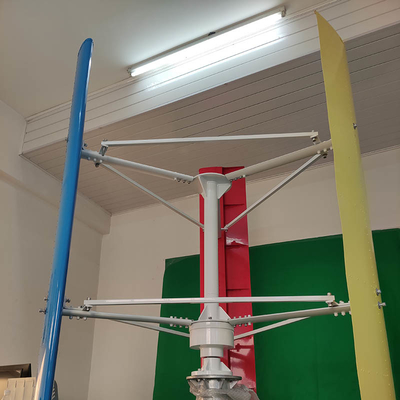

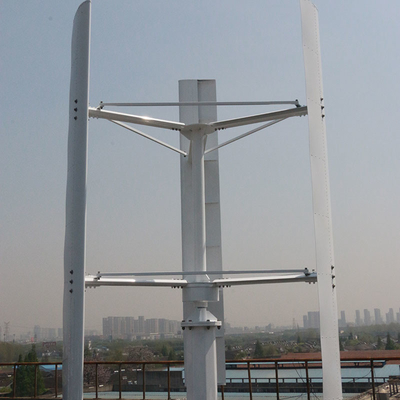

H Vertical Axis Wind Turbine Generator is a major type of vertical wind power generator products,for the H series,the output capacity covering 1kw-30kw,with voltage range of 12V/24V/48V/96V/120V/220V/380V.The default model has 3 blades which are made up of Aluminum Alloy,however,apart from the default blade options.Jiangsu Shenghuang is able to customize the blade quantity as per client's need.In addition,it adopts three-phase Coreless Permanent Magnet Syncronous Generator,which comes with low starting torgue.
| Model | SH-H1KW | SH-H2KW | SH-H3KW | SH-H5KW | SH-H10KW | SH-H20K | SH-H30K |
| Rated Power | 1000W | 2000W | 3000W | 5000W | 10kw | 20KW | 30KW |
| Maximum Power | 1200W | 2500W | 3500W | 5500W | 12kw | 22KW | 33KW |
| Rated Voltage | 24V/48V | 48V-220V | 48V-220V | 96V-220V | 220V-380V | 120v/220V/380V | 120V/220V/380V |
| Start-up Wind Speed | 2.3m/s | 2.3m/s | 2.3m/s | 2.3m/s | 2.3m/s | 2.3m/s | 2.3m/s |
| Rated Wind Speed | 11m/s | 11m/s | 11m/s | 12m/s | 12m/s | 12m/s | 12m/s |
| Rated RPM | 230 | 230 | 230 | 230 | 150 | 150 | 150 |
| Net Weight | 98kg | 170kg | 190kg | 250kg | 320kg | 390kg | 460kg |
| Wheel Diameter | 1.5m | 2m | 2.4m | 3m | 5m | 6m | 8m |
| Blades Height | 2m | 2.8m | 3.2m | 3.6m | 6m | 7m | 10m |
| Number of Blades | 3 Blades | ||||||
| Blades Material | Aluminum Alloy | ||||||
| Survival Wind Speed | 45m/s | ||||||
| Generator Type | 3 Phase Permanent Magnet AC Synchronous Generator | ||||||
| Magnet Material | NdFeB | ||||||
| Gegree of Protection | IP54 | ||||||
| Yaw Mode | Electromagnent | ||||||
| Work Temperature | -40℃-+80℃ | ||||||
| Design Life | 20 Years | ||||||
| Certification | CE | ||||||
Feature
1. Low Start-up Wind Speed
2. Three Blades
3. One year Warranty
4. Flange Connection with easy installation
5. Certified with:CE, RoHS and ISO 9001 2000
6. High-efficiency coreless disc generator
Application
1. Marine,&Boat
2. Streetlights
3. Home, Openning Plaza lighting.
4. Wind&Solar Hybrid System
5. Monitoring device
6. Factory
FAQ
Q1. What makes vertical axis wind turbines unique?
A: Vertical axis wind turbines (VAWTs) have very different shapes. The leaves are symmetrical and oriented vertically. This means they always capture the best possible wind without having to be artificially oriented to maximize power generation.
Q2. What about the lead time?
A: 7-10 days for Sample preparing ,15-20 working days for mass production.
Q3. Do you have any MOQ limit for order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline,train and sea shipping also optional.
