Product Details:
|
| Type: | Vertical Axis Wind Power Generator | Material: | Aluminum Alloy |
|---|---|---|---|
| Rated Power: | 2000W | Rated Voltage: | 48V/96V/220V/380V |
| Color: | White/Red/Blue | Protection: | ≤50db |
| High Light: | 2000w H Vertical Wind Turbine,vertical wind turbine 5kw,48v vertical axis wind turbine |
||

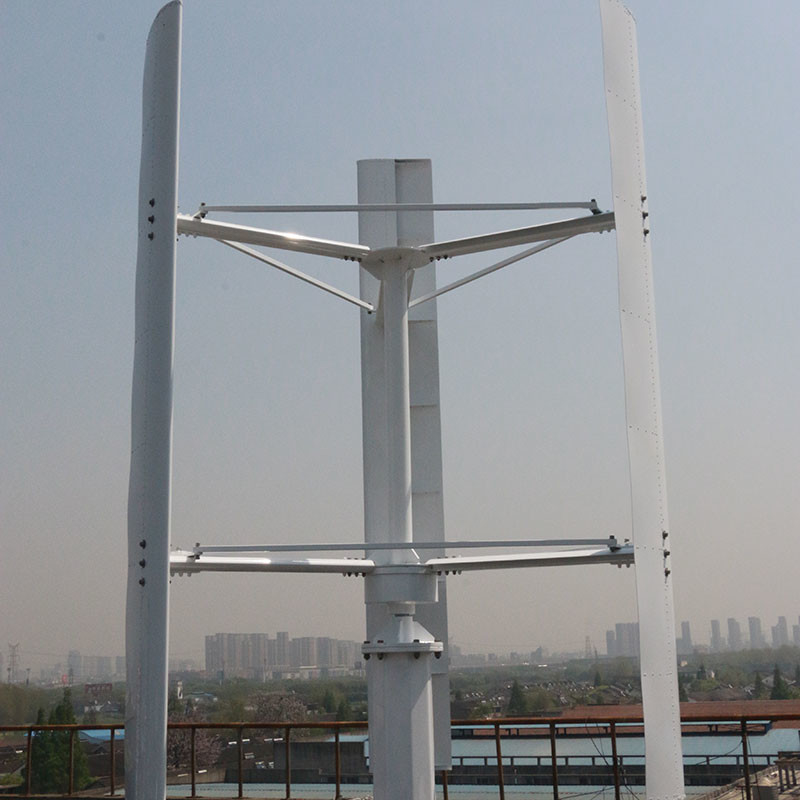

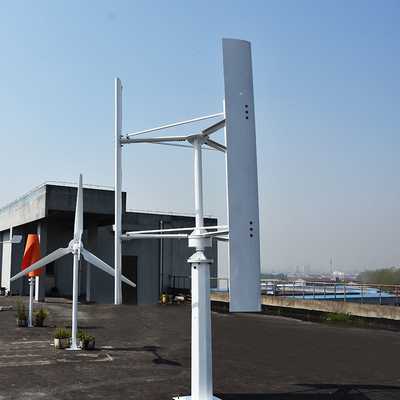

H Vertical Axis Wind Turbine Generator is a major type of vertical wind power generator products,for the H series,the output capacity covering 1kw-30kw,with voltage range of 12V/24V/48V/96V/120V/220V/380V.The default model has 3 blades which are made up of Aluminum Alloy,however,apart from the default blade options.Jiangsu Shenghuang is able to customize the blade quantity as per client's need.In addition,it adopts three-phase Coreless Permanent Magnet Syncronous Generator,which comes with low starting torgue.
Its design makes it need small space for installation,while still maintaining the capacity of wind power. Many wind turbines on the market will occupy several feet of space in diameter. When using such products, huge space area required to place a series of wind turbines.This model is not the case. Wind turbines will never interfere with the rotation of adjacent turbines.
| Model | SH-H1KW | SH-H2KW | SH-H3KW | SH-H5KW | SH-H10KW | SH-H20K | SH-H30K |
| Rated Power | 1000W | 2000W | 3000W | 5000W | 10kw | 20KW | 30KW |
| Maximum Power | 1200W | 2500W | 3500W | 5500W | 12kw | 22KW | 33KW |
| Rated Voltage | 24V/48V | 48V-220V | 48V-220V | 96V-220V | 220V-380V | 120v/220V/380V | 120V/220V/380V |
| Start-up Wind Speed | 2.3m/s | 2.3m/s | 2.3m/s | 2.3m/s | 2.3m/s | 2.3m/s | 2.3m/s |
| Rated Wind Speed | 11m/s | 11m/s | 11m/s | 12m/s | 12m/s | 12m/s | 12m/s |
| Rated RPM | 230 | 230 | 230 | 230 | 150 | 150 | 150 |
| Net Weight | 98kg | 170kg | 190kg | 250kg | 320kg | 390kg | 460kg |
| Wheel Diameter | 1.5m | 2m | 2.4m | 3m | 5m | 6m | 8m |
| Blades Height | 2m | 2.8m | 3.2m | 3.6m | 6m | 7m | 10m |
| Number of Blades | 3 Blades | ||||||
| Blades Material | Aluminum Alloy | ||||||
| Survival Wind Speed | 45m/s | ||||||
| Generator Type | 3 Phase Permanent Magnet AC Synchronous Generator | ||||||
| Magnet Material | NdFeB | ||||||
| Gegree of Protection | IP54 | ||||||
| Yaw Mode | Electromagnent | ||||||
| Work Temperature | -40℃-+80℃ | ||||||
| Design Life | 20 Years | ||||||
| Certification | CE | ||||||
Feature
1. Low Start-up Wind Speed
2. Three Blades
3. One year Warranty
4. Flange Connection with easy installation
5. Certified with:CE, RoHS and ISO 9001 2000
6. High-efficiency coreless disc generator
Application
1. Marine,&Boat
2. Streetlights
3. Home, Openning Plaza lighting.
4. Wind&Solar Hybrid System
5. Monitoring device
6. Factory
FAQ
Q1. How to proceed an order for wind turbine generator?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Then in the end we arrange the production.
Q2. Is it OK to print my logo on wind turbine product?
A: Yes. Please inform us formally before our production.
Q3: Do you offer warranty for the products?
A: Yes, we offer 5 years warranty to our products.
Q4:Customization available?
A:Yes,further requirement shall be confirmed before production.
