Product Details:
|
| Type: | Vertical Axis Wind Power Generator | Material: | Aluminum Alloy |
|---|---|---|---|
| Rated Power: | 3000W | Rated Voltage: | 96V/220V/380V |
| Logo: | Customization | Feature: | Low Start-up Wind Speed |
| High Light: | 6KW Vertical Wind Power Generator,5KW Vertical Wind Power Generator,wind turbine generator vertical axis |
||
By installing vertical axis wind turbines, hybrid grid battery inverters and small battery packs, existing grid-connected power systems are easily converted to silent wind-assisted hybrid systems.
Introduction Of Model

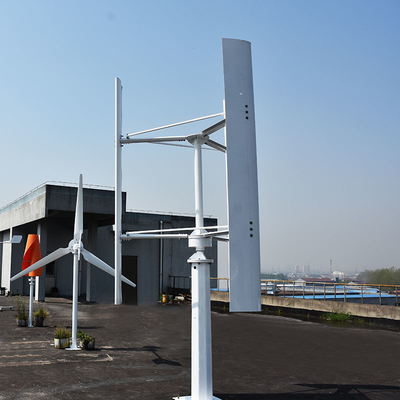

H Vertical Axis Wind Turbine Generator is a major type of vertical wind power generator products,for the H series,the output capacity covering 1kw-30kw,with voltage range of 12V/24V/48V/96V/120V/220V/380V.The default model has 3 blades which are made up of Aluminum Alloy,however,apart from the default blade options.
The main advantages of the H-series vertical axis wind turbine are:
1) Low Noise, Low speed.
2) Extremely low start-up torque
3) Safe in strong wind
4) Reliable and durable.
| Model | SH-H1KW | SH-H2KW | SH-H3KW | SH-H5KW | SH-H10KW | SH-H20K | SH-H30K |
| Rated Power | 1000W | 2000W | 3000W | 5000W | 10kw | 20KW | 30KW |
| Maximum Power | 1200W | 2500W | 3500W | 5500W | 12kw | 22KW | 33KW |
| Rated Voltage | 24V/48V | 48V-220V | 48V-220V | 96V-220V | 220V-380V | 120v/220V/380V | 120V/220V/380V |
| Start-up Wind Speed | 2.3m/s | 2.3m/s | 2.3m/s | 2.3m/s | 2.3m/s | 2.3m/s | 2.3m/s |
| Rated Wind Speed | 11m/s | 11m/s | 11m/s | 12m/s | 12m/s | 12m/s | 12m/s |
| Rated RPM | 230 | 230 | 230 | 230 | 150 | 150 | 150 |
| Net Weight | 98kg | 170kg | 190kg | 250kg | 320kg | 390kg | 460kg |
| Wheel Diameter | 1.5m | 2m | 2.4m | 3m | 5m | 6m | 8m |
| Blades Height | 2m | 2.8m | 3.2m | 3.6m | 6m | 7m | 10m |
| Number of Blades | 3 Blades | ||||||
| Blades Material | Aluminum Alloy | ||||||
| Survival Wind Speed | 45m/s | ||||||
| Generator Type | 3 Phase Permanent Magnet AC Synchronous Generator | ||||||
| Magnet Material | NdFeB | ||||||
| Gegree of Protection | IP54 | ||||||
| Yaw Mode | Electromagnent | ||||||
| Work Temperature | -40℃-+80℃ | ||||||
| Design Life | 20 Years | ||||||
| Certification | CE | ||||||
Feature
1. Low Start-up Wind Speed
2. Three Blades
3. One year Warranty
4. Flange Connection with easy installation
5. Certified with:CE, RoHS and ISO 9001 2000
6. High-efficiency coreless disc generator
Application
1. Marine,&Boat
2. Streetlights
3. Home, Openning Plaza lighting.
4. Wind&Solar Hybrid System
5. Monitoring device
6. Factory
Characteristics
1. Low start-up speeds,high wind energy utilization,attractive appearance and low vibration.
2. The blades are strong, with optimized aerodynamic profiles and structures, and the blades have high utilization of wind energy, which helps to increase the annual power generation.
3. The wind turbine has a patented permanent magnet rotor alternator with a special stator design that effectively reduces resistive torque. It matches the wind turbine's speed fairly well with the generator and improves its reliability.
4. A premium hybrid charge controller is included, with a digital display showing all instantaneous readings, including battery charge voltage and current produced. (see below for details)
5. Fully assembled and factory tested, then carefully packaged in plywood crates, protected with expandable bubble wrap.
