Product Details:
|
Type: | Vertical Axis Wind Power Generator | Material: | Aluminum Alloy |
---|---|---|---|
Rated Power: | 5000W | Rated Voltage: | 96V/220V/380V |
Logo: | Customization | Feature: | Low Start-up Torque |
High Light: | 500 watt vertical axis wind turbine,5KW Vertical Axis Wind Turbine,500w vertical axis wind turbine |
Although vertical-axis wind turbines produce less energy than horizontal turbines, they still generate electricity and, depending on the application, are a better choice. They are more suitable for places with limited space, maintenance challenges and less risk.
Introduction Of Model

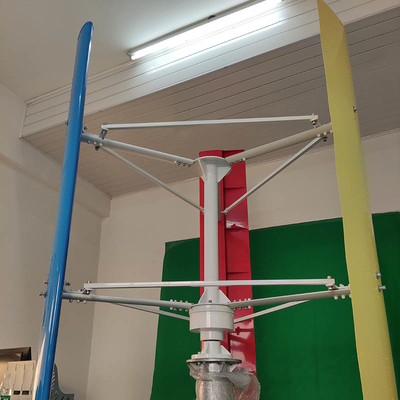

H Vertical Axis Wind Turbine Generator is a major type of vertical wind power generator products,for the H series,the output capacity covering 1kw-30kw,with voltage range of 12V/24V/48V/96V/120V/220V/380V.The default model has 3 blades which are made up of Aluminum Alloy,however,apart from the default blade options.
The main advantages of the H-series vertical axis wind turbine are:
1) Low Noise, Low speed.
2) Extremely low start-up torque
3) Safe in strong wind
4) Reliable and durable.
Model | SH-H1KW | SH-H2KW | SH-H3KW | SH-H5KW | SH-H10KW | SH-H20K | SH-H30K |
Rated Power | 1000W | 2000W | 3000W | 5000W | 10kw | 20KW | 30KW |
Maximum Power | 1200W | 2500W | 3500W | 5500W | 12kw | 22KW | 33KW |
Rated Voltage | 24V/48V | 48V-220V | 48V-220V | 96V-220V | 220V-380V | 120v/220V/380V | 120V/220V/380V |
Start-up Wind Speed | 2.3m/s | 2.3m/s | 2.3m/s | 2.3m/s | 2.3m/s | 2.3m/s | 2.3m/s |
Rated Wind Speed | 11m/s | 11m/s | 11m/s | 12m/s | 12m/s | 12m/s | 12m/s |
Rated RPM | 230 | 230 | 230 | 230 | 150 | 150 | 150 |
Net Weight | 98kg | 170kg | 190kg | 250kg | 320kg | 390kg | 460kg |
Wheel Diameter | 1.5m | 2m | 2.4m | 3m | 5m | 6m | 8m |
Blades Height | 2m | 2.8m | 3.2m | 3.6m | 6m | 7m | 10m |
Number of Blades | 3 Blades | ||||||
Blades Material | Aluminum Alloy | ||||||
Survival Wind Speed | 45m/s | ||||||
Generator Type | 3 Phase Permanent Magnet AC Synchronous Generator | ||||||
Magnet Material | NdFeB | ||||||
Gegree of Protection | IP54 | ||||||
Yaw Mode | Electromagnent | ||||||
Work Temperature | -40℃-+80℃ | ||||||
Design Life | 20 Years | ||||||
Certification | CE |
Feature
1. Low Start-up Wind Speed
2. Three Blades
3. One year Warranty

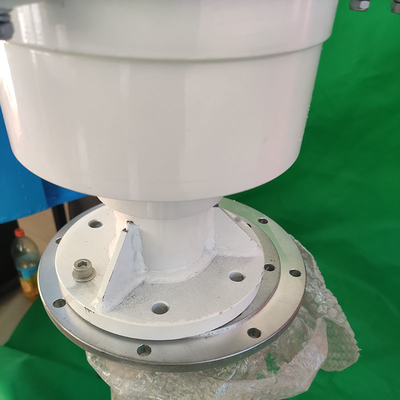

4. Flange Connection with easy installation
5. Certified with:CE, RoHS and ISO 9001 2000
6. High-efficiency coreless disc generator
Application
1. Marine,&Boat
2. Streetlights
3. Home, Openning Plaza lighting.
4. Wind&Solar Hybrid System
5. Monitoring device
6. Factory
Characteristics
1. The wind turbine has low starting speed,high wind energy utilization; beautiful appearance and small vibration. It features a creatively simple design that is easy to install, maintain and repair.
2. The blades are strong, with optimized aerodynamic profiles and structures, and the blades have high utilization of wind energy, which helps to increase the annual power generation.
3. The wind turbine has a patented permanent magnet rotor alternator with a special stator design that effectively reduces resistive torque. It matches the wind turbine's speed fairly well with the generator and improves its reliability.
4. A premium hybrid charge controller is included, with a digital display showing all instantaneous readings, including battery charge voltage and current produced.
5. These vertical axis wind turbines are fully factory tested before being carefully packaged in plywood crates and come with expanded foam wrap for full protection.Clear and understandable user manual detailing installation and safety procedures.
