Product Details:
|
| Type: | Vertical Axis Wind Power Generator | Material: | Aluminum Alloy |
|---|---|---|---|
| Rated Power: | 5000W | Rated Voltage: | 96V/220V/380V |
| Customization: | OEM/ODM | Advantage: | Low Start-up Torque |
| High Light: | 10kw Vertical Wind Turbine,IP54 vertical wind generator kit,5KW vertical wind generator kit |
||
A vertical axis wind turbine is a wind turbine in which the main rotor shaft is arranged transverse to the wind and the main components are located on the base of the turbine. This arrangement allows the generator and gearbox to be close to the ground for easy maintenance.
Generally speaking,the dynamic pressure of the wind on the blades pushes the rotor to spin. At the same time, the other side of the blade encounters aerodynamic drag or "drag" which is like what we experience when cycling or running: there is always an oncoming airflow.
Introduction Of Model

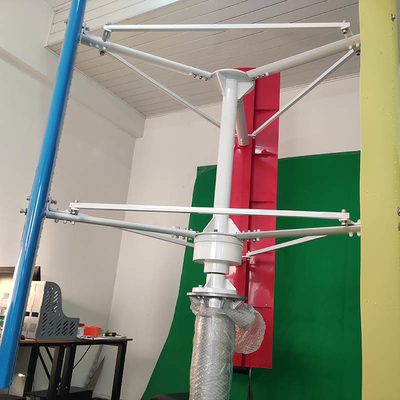

H Vertical Axis Wind Turbine Generator is a major type of vertical wind power generator products,for the H series,the output capacity covering 1kw-30kw,with voltage range of 12V/24V/48V/96V/120V/220V/380V.The default model has 3 blades which are made up of Aluminum Alloy,however,apart from the default blade options.Jiangsu Shenghuang is able to customize the blade quantity as per client's need.In addition,it adopts three-phase Coreless Permanent Magnet Syncronous Generator,which comes with low starting torgue.
| Model | SH-H1KW | SH-H2KW | SH-H3KW | SH-H5KW | SH-H10KW | SH-H20K | SH-H30K |
| Rated Power | 1000W | 2000W | 3000W | 5000W | 10kw | 20KW | 30KW |
| Maximum Power | 1200W | 2500W | 3500W | 5500W | 12kw | 22KW | 33KW |
| Rated Voltage | 24V/48V | 48V-220V | 48V-220V | 96V-220V | 220V-380V | 120v/220V/380V | 120V/220V/380V |
| Start-up Wind Speed | 2.3m/s | 2.3m/s | 2.3m/s | 2.3m/s | 2.3m/s | 2.3m/s | 2.3m/s |
| Rated Wind Speed | 11m/s | 11m/s | 11m/s | 12m/s | 12m/s | 12m/s | 12m/s |
| Rated RPM | 230 | 230 | 230 | 230 | 150 | 150 | 150 |
| Net Weight | 98kg | 170kg | 190kg | 250kg | 320kg | 390kg | 460kg |
| Wheel Diameter | 1.5m | 2m | 2.4m | 3m | 5m | 6m | 8m |
| Blades Height | 2m | 2.8m | 3.2m | 3.6m | 6m | 7m | 10m |
| Number of Blades | 3 Blades | ||||||

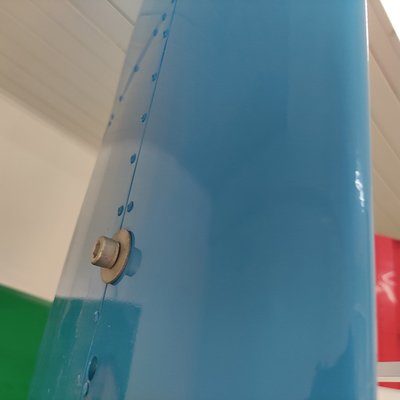

| Blades Material | Aluminum Alloy | ||||||
| Survival Wind Speed | 45m/s | ||||||
| Generator Type | 3 Phase Permanent Magnet AC Synchronous Generator | ||||||
| Magnet Material | NdFeB | ||||||
| Gegree of Protection | IP54 | ||||||
| Yaw Mode | Electromagnent | ||||||
| Work Temperature | -40℃-+80℃ | ||||||
| Design Life | 20 Years | ||||||
| Certification | CE | ||||||
Feature
1. Low Start-up Wind Speed
2. Three Blades
3. One year Warranty
4. Flange Connection with easy installation
5. Certified with:CE, RoHS and ISO 9001 2000
6. High-efficiency coreless disc generator
Application
1. Marine,&Boat
2. Streetlights
3. Home, Openning Plaza lighting.
4. Wind&Solar Hybrid System
5. Monitoring device
6. Factory
Characteristics
In addition to the obvious advantages of reducing energy bills, other advantages of choosing a vertical wind turbine include:
Compared to horizontal axis wind turbines, they are stronger, smaller, quieter, more economical, and omnidirectional.
1. They can be arranged close to each other (unlike horizontal turbines), saving even more space.
2. They do not place too much mechanical stress on the support structure.
3. They don't need high winds to generate electricity, so they can be placed closer to the ground.
4. Because they are closer to the ground and their design allows mechanical elements to sit on their bases, they are easy to maintain, less likely to kill birds, and do not hinder helicopter operations or radar.
5. Their noise level is very low. On the ground at a distance of 10 meters from the tower, the recorded value of the horizontal wind turbine is about 95 dB, while at the same distance, the recorded value of the vertical wind turbine is only 38 dB.
