Product Details:
|
| Product Name: | Lithium Ion Phosphate Battery | Rated Voltage: | 48V/96V/220V/380V/600V |
|---|---|---|---|
| Rated AH: | 100AH | Warranty: | 5 Year |
| Application: | Energy Storage/UPS | Cell Type: | Lithium Ion Phosphate |
| High Light: | Long Term Storage Lithium Ion Battery,150AH Lithium Ion Phosphate Battery,48V Lithium Ion Phosphate Battery |
||
Leading Technology 24V/48V/96V 100AH/150AH/200AH Lithium Ion Phosphate Battery With Remote Monitoring
Technologies with lithiated metal oxide cathodes and carbon anodes have high cell voltages (typically 3.6 V to 3.7 V) and correspondingly high energy densities. These technologies have very different life and safety characteristics. Batteries with lithium iron phosphate as the cathode material are inherently safer than metal oxide/carbon batteries, but have lower voltages (about 3.2V) and lower energy density. Designs using lithiated metal oxide cathodes and lithium titanate anodes have the lowest voltage (~2.5V) and low energy density, but offer higher power capacity and safety advantages.
The battery storage system is charged by clean electricity generated by solar or wind turbine.
STEP 2: DISCHARGE

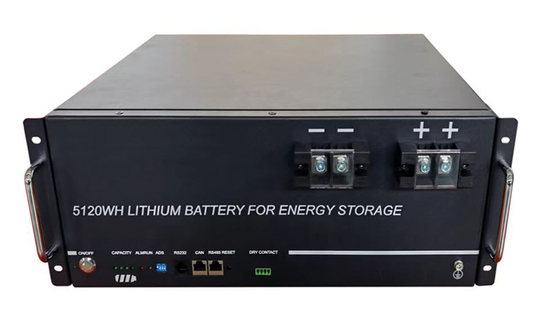

| Powerwall LiFePO4 Battery(48V 200Ah) | ||
| Technical Parameter | ||
| NO | Item | Parameters |
| 1.Performance | Type | LiFePO4 battery(CELL:3.2V100Ah) |
| Nominal Voltage | 51.2V | |
| Rated Capacity | 200Ah(0.2℃/25℃)(Min:198Ah) | |
| Operating Voltage Range | 42V-57.0V(Typical 51.2V) | |
| Charging Voltage | 57.0V | |
| Discharge Cut-off Voltage | 42V | |
| Charging Current(Max.) | 60A | |
| Discharge Current(Max.) | 100A | |
| Width | 435mm | |
| Height | 875mm | |
| Depth | 190mm | |
| Weight | 102Kg | |
| 2.Function | Installation Method | |
| Communication | RS485 | |
| Terminal Stud | M8 Bolt | |
| Alarm&Protection | Over Voltage,under Voltage,short circuit,over current,over temperature,low temperature protection etc. | |
| 3.Working Condition | Cooling Mode | Automatic Cold and hot |
| Altitude | ≤4000m | |
| Humidity | 15%-85% | |
| Operating Temperature |
Charge 0℃-45℃ Discharge -10℃-60℃ |
|
| Recommended Charge Temperature | 15℃-40℃ | |
| Recommended Discharge Temperature | 15℃-40℃ | |
| Recommended Storage Temperature | 0℃-35℃ | |
Product Feature
1. Lithium Ion Battery For Energy Storage
2. Rechargable
3. Over-charge,over-discharge and overload protections for batteries
4. Compatible with energy storage system
5. CE Certification
6. WIFI or Bluetooth communication is optional
Battery energy storage systems are rechargeable battery systems that store energy from solar arrays or wind turbine or the electric grid and provide that energy to a home or business. Because they contain advanced technology that regular batteries do not, they can easily perform certain tasks that used to be difficult or impossible.
The idea of combining solar panels and batteries is not new. Early solar pioneers often attached a series of oceanic deep cycle batteries to their solar arrays. Before net metering became commonplace, this was the only way to use stored solar energy at night. Modern battery energy storage systems are conceptually similar but more complex and powerful. If those old battery arrays were like flip phones, modern battery energy storage systems are like the latest smartphones—they have the same main functions, but everything else is worlds apart.
Modern battery energy storage systems often include built-in inverters and computer control systems. This means they are all-in-one turnkey systems that are simple to install, essentially maintenance-free, and require no effort or expertise from the owner. They are also weatherproof and safe for people and pets.
Q1 Is there an endless supply of lithium?
A1 The world's reserves of lithium is estimated at 38 million metric tons. So, there is probably enough lithium reserves to meet electric car batter needs for some time.
Q2. What is the advantage of Lithium Ion Phosphate Battery?
A2. Lithium iron phosphate batteries (LiFePO4 or LFP) have many advantages over lead-acid batteries and other lithium batteries. Longer life, maintenance free, extremely safe, light weight, improved discharge and charge efficiency, to name a few. LiFePO4 batteries aren't the cheapest on the market, but with their long life and zero maintenance, it's the best investment you can make in a while.
Q3. Can Lithium Batteries Power a House?
A8. A home needs several lithium-ion batteries to power it for a day or more. Lead-acid batteries have been around for decades, are less efficient, offer less storage space, are usually larger, and don't last as long. Lithium batteries can be partially charged without any adverse effects.
Q4. Are lithium-ion solar cells the best energy storage option?
A4:Lithium-ion solar cells are the best solar energy storage systems for everyday residential use because they take up little space but still store a lot of energy. Plus, their high mod means you can use more energy storage.
