Product Details:
|
| Product Name: | Wind Turbine Complete System | Rated Power: | Customized |
|---|---|---|---|
| CE Certification: | Yes | Battery: | Lithium |
| Warranty: | Yes | Type: | On-grid And Off-grid |
| High Light: | 220V Wind Turbine Complete System,IP54 low speed wind turbine,24V low speed wind generator |
||
A system that includes both wind and solar input will require a much smaller battery than a system where either option has only one power source. The hybrid system extends the life expectancy of a standard lead-acid battery pack because the energy flow is consistent and does not allow the system to drop below the recommended 50% depth of discharge. Battery technology is rapidly improving to extend product life and reduce major discharge issues. Other battery types to consider include lithium-ion, zinc bromide, and tank or flow batteries.
Distributed wind turbines are also used to reduce operating costs for off-grid cell sites. A properly sized wind and solar hybrid system can save 70-90% of diesel fuel consumption and reduce diesel run time from 100% to about 10%. Distributed wind power systems also save operating costs at many military sites around the world. These systems are particularly cost-effective when fuel is delivered by helicopter. Distributed wind systems at remote sites are also far less likely to be stolen than solar PV and provide additional system security and reliability.
| Technical Parameter | ||
| NO. | Item | Parameters |
| 1.Performance | Type | LiFePO4 Battery |
| Nominal Voltage | 51.2V | |
| Rated Capacity | 200Ah | |
| Operating Voltage Range | 42V-57.0V(Typical:51.2V) | |
| Charging Voltage | 57.0V | |
| Discharge cut-off voltage | 42V | |
| Charging Current(Max.) | 60A | |
| Discharge Current(Max.) | 100A | |
| Width | 435mm | |
| Height | 875mm | |
| Depth | 190mm | |
| Weight | 102kg | |
| 2.Function | Installation Method | Wall-mounted |
| Communication | RS485 | |
| Terminal stud | M8 Bolt | |
| Alarm&protection | Over voltage,under voltage,short circuit,over current,over temperature,low temperature protection,etc. | |
| 3.Working Condition | Cooling Mode | Automatic cold and hot |
| Altitude | ≤4000m | |
| Humidity | 15%-85% | |
| Operating Temperature |
Charge 0℃-45℃ Discharge -10℃-60℃ |
|
| Recommended charge temperature | 15℃-40℃ | |
| Recommended discharge temperature | 15℃-40℃ | |
| Recommended storage temperature | 0℃-35℃ | |
Description of Product
1. What is wind&solar hybrid system?
Overview. The term wind hybrid system describes any combination of wind energy with one or more additional sources of electricity generation (e.g. biomass, solar or a generator using fossil fuels). Hybrid system are very often used for stand-alone applications at remote sites.
2. How does wind&solar hybrid system work?
A wind&solar hybrid power system uses solar insolation and wind energy to produce electricity. As both solar radiation and wind speed vary throughout the year, neither solar nor wind based system can provide reliable electricity individually.
3. Are residential wind turbines worth it?
Small wind turbines are a cost-effective way to generate electricity for your home. However, many homes are not suitable for installing wind turbines for several reasons. First, in order to generate enough power to make the upfront investment worthwhile, wind turbines need to be located in windy locations.
4. What is an off-grid wind turbine?

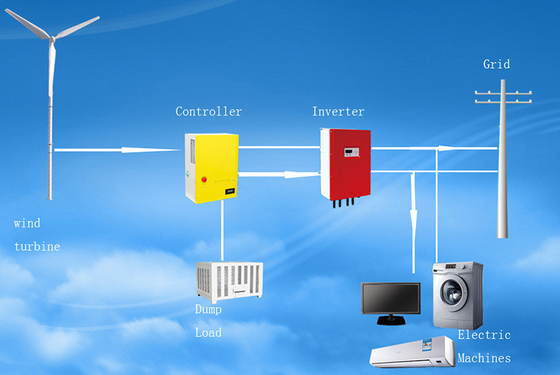

In addition to sufficient wind resources, an off-grid distributed wind system usually consists of wind turbines, towers, charge controllers, inverters, batteries, and system controls. Each system should be uniquely designed for specific application and load requirements.
