Product Details:
|
| Product Name: | Wind Turbine Complete System | Rated Power: | Customized |
|---|---|---|---|
| Hybrid System: | Yes | Battery: | Lithium/Lead-acid |
| Advantage: | Low Start-up Wind Speed | Type: | On-grid And Off-grid |
| High Light: | Low Noise low speed wind turbine generator,low cut in wind turbine 12V,low velocity wind turbine 220V |
||
Low Noise Wind Turbine Complete System With Battery Energy Storage 12V 24V 220V
Advantages of Distributed Wind Power Systems
1. Increase the share of renewable energy supply
2. Reduce backup generator operation and fuel consumption
3. Extended battery life; more renewable energy, less fuel and energy circulating through the battery
4. Benefit from a balanced battery with reliable, high energy output during nighttime, rainy season and winter to supplement available solar energy
What applications are they used for?
Distributed wind turbines are often used for rural electrification:
1. School
2. Clinic
3. Administrative office
4. Home
5. Farm
6. Village
7. Small industry
Description of Product
1. What is wind&solar hybrid system?
Overview. The term wind hybrid system describes any combination of wind energy with one or more additional sources of electricity generation (e.g. biomass, solar or a generator using fossil fuels). Hybrid system are very often used for stand-alone applications at remote sites.
2. How does wind&solar hybrid system work?
A wind&solar hybrid power system uses solar insolation and wind energy to produce electricity. As both solar radiation and wind speed vary throughout the year, neither solar nor wind based system can provide reliable electricity individually.
3. Are residential wind turbines worth it?
Small wind turbines are a cost-effective way to generate electricity for your home. However, many homes are not suitable for installing wind turbines for several reasons. First, in order to generate enough power to make the upfront investment worthwhile, wind turbines need to be located in windy locations.

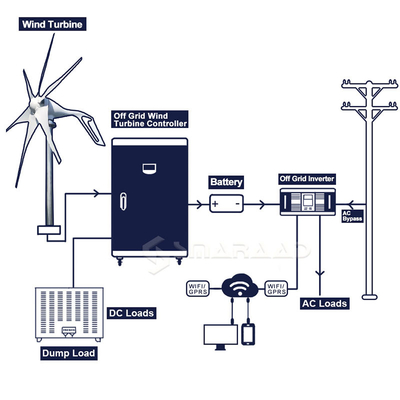

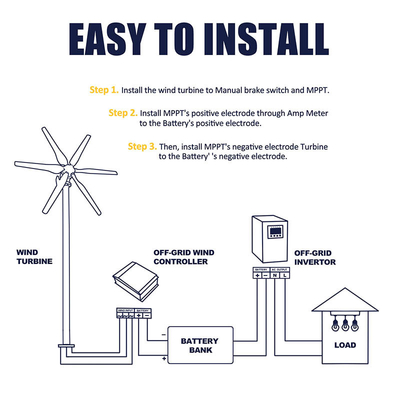

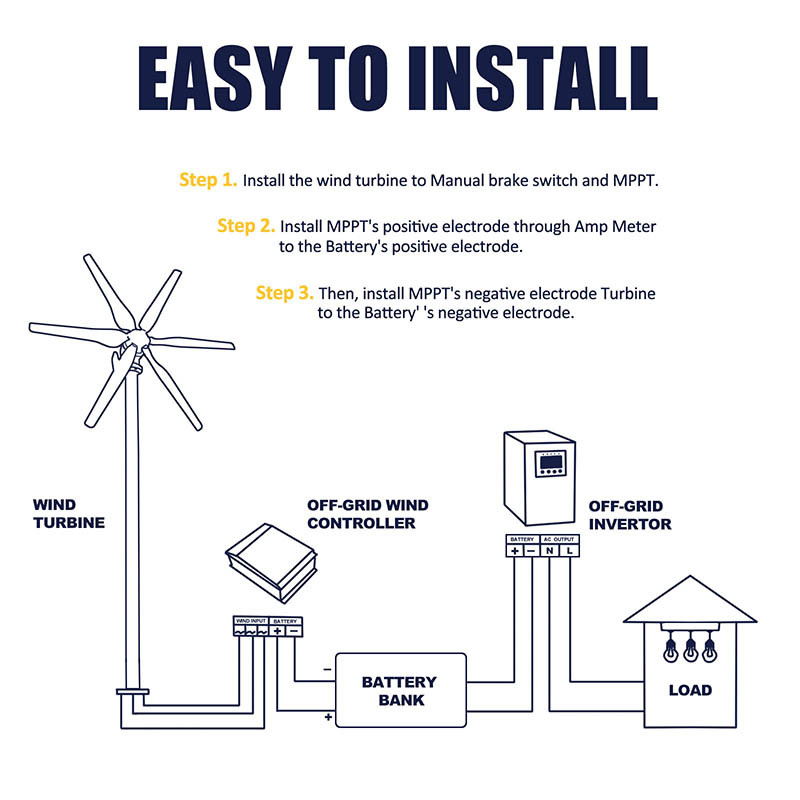

4. What is an off-grid wind turbine?
In addition to sufficient wind resources, an off-grid distributed wind system usually consists of wind turbines, towers, charge controllers, inverters, batteries, and system controls. Each system should be uniquely designed for specific application and load requirements.
| Technical Parameter | ||
| NO. | Item | Parameters |
| 1.Performance | Type | LiFePO4 Battery |
| Nominal Voltage | 51.2V | |
| Rated Capacity | 200Ah | |
| Operating Voltage Range | 42V-57.0V(Typical:51.2V) | |
| Charging Voltage | 57.0V | |
| Discharge cut-off voltage | 42V | |
| Charging Current(Max.) | 60A | |
| Discharge Current(Max.) | 100A | |
| Width | 435mm | |
| Height | 875mm | |
| Depth | 190mm | |
| Weight | 102kg | |
| 2.Function | Installation Method | Wall-mounted |
| Communication | RS485 | |
| Terminal stud | M8 Bolt | |
| Alarm&protection | Over voltage,under voltage,short circuit,over current,over temperature,low temperature protection,etc. | |
| 3.Working Condition | Cooling Mode | Automatic cold and hot |
| Altitude | ≤4000m | |
| Humidity | 15%-85% | |
| Operating Temperature |
Charge 0℃-45℃ Discharge -10℃-60℃ |
|
| Recommended charge temperature | 15℃-40℃ | |
| Recommended discharge temperature | 15℃-40℃ | |
| Recommended storage temperature |
0℃-35℃ |
|
