Product Details:
|
| Product Name: | Wind Turbine Complete System | Rated Power: | Customized |
|---|---|---|---|
| Type: | Hybrid System | Battery: | Lithium/Lead-acid |
| Advantage: | Flange Connection | Optional: | Remote Monitoring |
| High Light: | 100Ah off grid electrical systems,off grid wind turbine system 5KW,300Ah off grid wind electric system |
||
Free Renewable Energy Wind Turbine Complete System With 24V 48V 100Ah 200Ah 300Ah Remote Monitoring
If your system is on the grid, we still recommend designing because you're guessing or trusting the salesperson's estimate of performance, which is the key to calculating your payback period, and again, you're just guessing. A small underestimation or overestimation far exceeds the design cost. An undersized battery pack or inverter will significantly shorten the life of the battery system, leaving you with frequent power outages and damage to system components, leading to rapid degradation, while an oversized system will cost you more and be more efficient. Low.
If you don't have an wind meter, you can use the guide below to get a rough idea of wind speed.
0-1 MPH - Smoke rises vertically
2-3 MPH - Shows wind direction by plume, but not by wind vane.
4-7 MPH - Wind on face; rustling of leaves; normal weather vane movement
8-12 MPH - constant movement of leaves and branches; wind blows a light flag
13-18 MPH - dust, loose paper; moving small branches
19-24 MPH - trees in foliage begin to shake; crest wavelets form on water
25-31 MPH - big branch movement; whistles heard in wires
| Technical Parameter | ||
| NO. | Item | Parameters |
| 1.Performance | Type | LiFePO4 Battery |
| Nominal Voltage | 51.2V | |
| Rated Capacity | 200Ah | |
| Operating Voltage Range | 42V-57.0V(Typical:51.2V) | |
| Charging Voltage | 57.0V | |
| Discharge cut-off voltage | 42V | |
| Charging Current(Max.) | 60A | |
| Discharge Current(Max.) | 100A | |
| Width | 435mm | |
| Height | 875mm | |
| Depth | 190mm | |
| Weight | 102kg | |
| 2.Function | Installation Method | Wall-mounted |
| Communication | RS485 | |
| Terminal stud | M8 Bolt | |
| Alarm&protection | Over voltage,under voltage,short circuit,over current,over temperature,low temperature protection,etc. | |
| 3.Working Condition | Cooling Mode | Automatic cold and hot |
| Altitude | ≤4000m | |
| Humidity | 15%-85% | |
| Operating Temperature |
Charge 0℃-45℃ Discharge -10℃-60℃ |
|
| Recommended charge temperature | 15℃-40℃ | |
| Recommended discharge temperature | 15℃-40℃ | |
| Recommended storage temperature | 0℃-35℃ | |
Description of Product

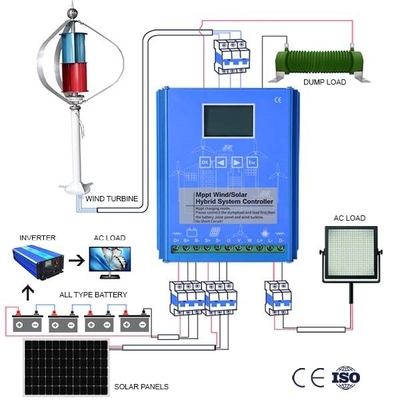

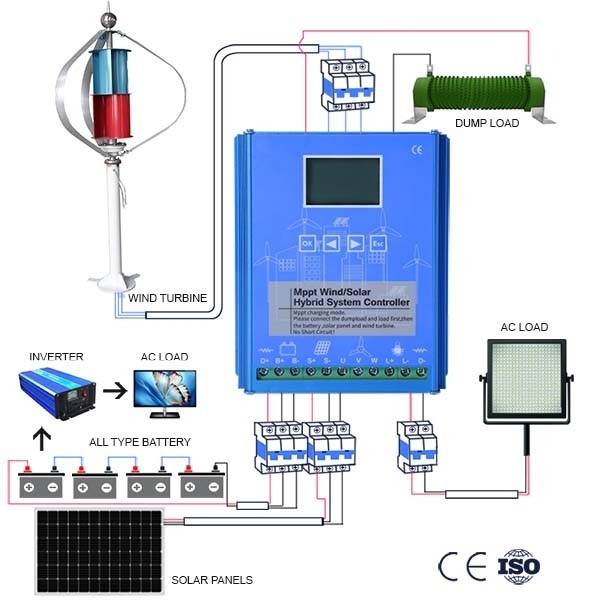

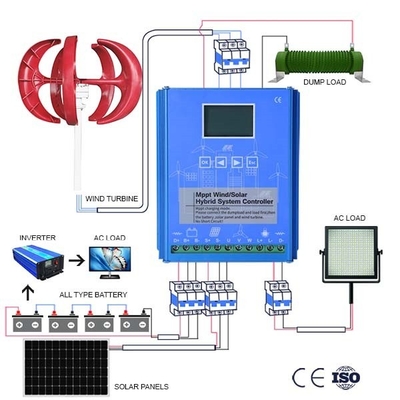

1. What is wind&solar hybrid system?
Overview. The term wind hybrid system describes any combination of wind energy with one or more additional sources of electricity generation (e.g. biomass, solar or a generator using fossil fuels). Hybrid system are very often used for stand-alone applications at remote sites.
2. What is the best off-grid power supply?
Here are five cutting-edge real-world off-grid power sources.
A. Solar roof tiles.
B. Residential wind turbines
C. Geothermal heat pump
D. Micro hydro
E. Solar/wind hybrid system
F. Off-grid power system
3. Are residential wind turbines worth it?
Small wind turbines are a cost-effective way to generate electricity for your home. However, many homes are not suitable for installing wind turbines for several reasons. First, in order to generate enough power to make the upfront investment worthwhile, wind turbines need to be located in windy locations.
4. What is an off-grid system?
Off-grid systems work independently of the grid, but have batteries to store the solar energy generated by the system. The system usually consists of solar panels, batteries, charge controller, grid box, inverter, mounting structure and system balance.
