Low Vibration Red Lantern Wind Turbine 100W 200W 12V 24V With Flange Connection

A vertical axis wind turbine (or VAWT) has a main rotor shaft arranged vertically. An advantage of this arrangement is that the turbine does not need to be pointed into the wind to be effective, which is an advantage in locations where the wind direction is highly variable. This is also an advantage when the turbine is integrated into a building, as it is inherently less maneuverable. Additionally, the generator and gearbox can be placed close to the ground, using direct drive from the rotor assembly to the ground gearbox, improving maintenance accessibility.

Wind turbines generate renewable energy when the forces acting on the turbine blades cause the generator to spin to produce clean electricity. Compared with traditional design models, this paper proposes a novel lantern-type wind turbine design. Coarse and fine mesh based simulations were compared and all results converged. The results show that the pressure differential across the surface of the newly designed lantern-shaped wind turbine is much higher than that of conventional wind turbines. Prototypes have been fabricated and experimental results will be discussed in another future publication

Product Characteristics

1. Low Start-up Wind Speed
2. Flange Connection with easy installation
3. Three-phase Magnetic Levitation Generator
4. Factory Direct Supply
5. Nylon Blade With Optimized Curve Design
6. Low Start-up Wind Speed


Applications Of Wind Generator

1. Boat&Yacht

2. Wind&Solar Hybrid System

3. Water Pumping

4. Telecommunication Tower

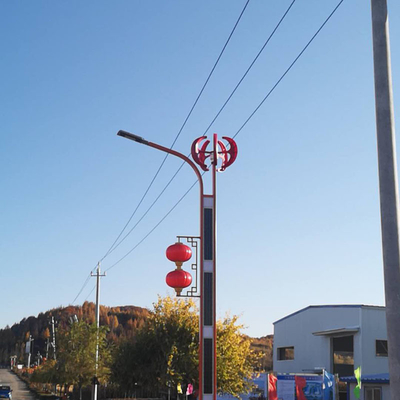

5. Street Lamp

6. Household Use

FAQ

Q1: Does the system install easy?
A1: Very easy.Every customer can do it by themselves.We will supply the components for installation and detailed manual.If you still have any confusion,our technician can support you by video to make sure there is no problem.

Q2: Distance between wind turbine,controller and battery?
A2: Normally,it will be better within 10 meters from wind turbine to controller,and controller to batteries.The distance between batteries and inverter is within 20-50 meters.

Q3: For horizontal wind turbines vs vertical wind turbines,which kind of efficiency is better?
A3: For same watts and same wind speed,the output of horizontal wind turbines is more efficient than that of vertical wind
turbines.But if the wind speed is very slowly,we suggest you to use our vertical SS type.If the wind speed is over 8 m/s,our wind turbine are also with around 80-90% efficiency.The popular points is there is no noise.

Q4: Does our wind is enough for a wind turbine?
A4: Please contact with our salesman


Q5. How to proceed an order for wind turbine generator?
A5: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
