100W Red Lantern Wind Turbine 12V 24V Low Speed Wind Turbine

China Shenghuang New Energy Technology Co.,Ltd certification
China Shenghuang New Energy Technology Co.,Ltd certification
Customer Reviews
Fasten packing!Thanks for the good service!I will place mass order soon!

—— Zenia

I bough this style before,but it cannot produce electricity.I try buy same style from this supplier.I am so luck,and it is higher quality.The best is that it can produce electricity.

—— Lena

I'm Online Chat Now

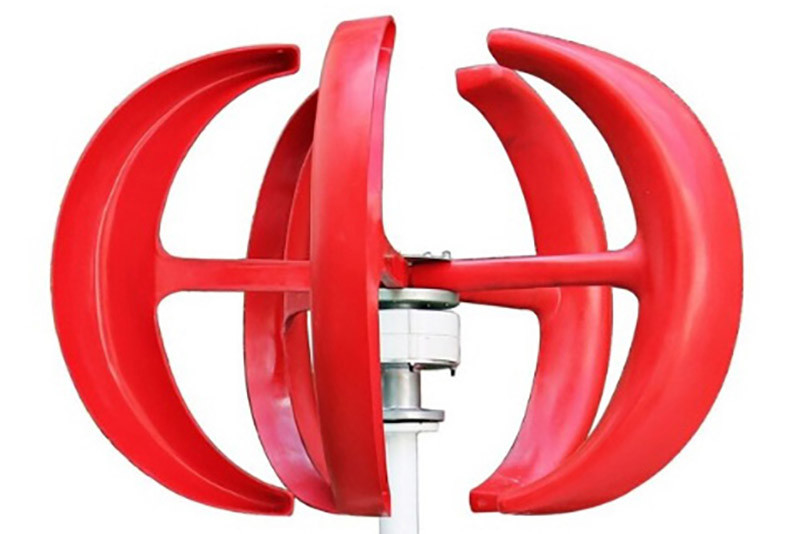

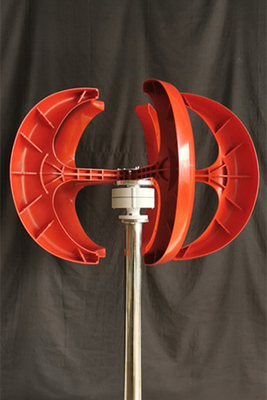

100W Red Lantern Wind Turbine 12V 24V Low Speed Wind Turbine

100W Red Lantern Wind Turbine 12V 24V Low Speed Wind Turbine
100W Red Lantern Wind Turbine 12V 24V Low Speed Wind Turbine 100W Red Lantern Wind Turbine 12V 24V Low Speed Wind Turbine

Large Image :  100W Red Lantern Wind Turbine 12V 24V Low Speed Wind Turbine

Product Details:
Place of Origin: China-Jiangsu
Brand Name: Jiangsu Shenghuang
Certification: CE
Model Number: R Type Vertical Wind Turbine Generator
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: To Be Negotiated
Packaging Details: Carton/Foam+plywooden case
Delivery Time: 10-25 Working Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 800 Sets Per Month

100W Red Lantern Wind Turbine 12V 24V Low Speed Wind Turbine

Color: White/Red/Black/Orange/Green/Blue Material: Nylon Blade
Rated Power: 50W 100W Product Name: Red Lantern Wind Turbine
Shape: Red Lantern Blade Quantity: 5
High Light:

100W Red Lantern Wind Turbine


24V Low Speed Wind Turbine


Low Speed Wind Turbine R Type

Free Renewable Energy Red Lantern Wind Turbine 100W 12V 24V With Low Start-up Wind Speed

Focus on the development of solar power, wind-solar power generation system integration,the business consists of wind and solar monitoring system, Wind Turbine Grid and off-grid system PV system equipment design and procurement, complete sets, feasibility study and installation commissioning .

A vertical axis wind turbine (or VAWT) has a main rotor shaft arranged vertically. An advantage of this arrangement is that the turbine does not need to be pointed into the wind to be effective, which is an advantage in locations where the wind direction is highly variable. This is also an advantage when the turbine is integrated into a building, as it is inherently less maneuverable. Additionally, the generator and gearbox can be placed close to the ground, using direct drive from the rotor assembly to the ground gearbox, improving maintenance accessibility.

High-quality sheet,the sheet is made of high-strength plastic with 30% carbon fiber element and anti-ultraviolet anti-corrosion material. At the same time, the wind turbine blade adopts new precision injection molding technology, combined with streamlined streamline design and structural design, which effectively reduces the resistance torque of the generator, so that the wind turbine and the generator have better combined characteristics.

Product Characteristics

1. Low Start-up Wind Speed
2. Flange Connection with easy installation
3. Three-phase Magnetic Levitation Generator
4. Factory Direct Supply

5. Nylon Blade With Optimized Curve Design
6. Low Start-up Wind Speed


Applications Of Wind Generator


2.Wind Solar Hybrid System

3.Water Pumping

4.Telecommunication Tower

5. Street Lamp

6. Household Use






Q1: Can I install a small wind turbine on my roof?

A1:  We strongly advise against installing turbines on roofs or buildings as they can only withstand weak turbulent winds. Several field trials have found that turbines installed on buildings perform poorly, producing only a fraction of the energy if installed in the right location.


Q2: Can I have a wind turbine in my backyard?

A2:  Most wind turbines are not small enough to fit in a backyard - because larger size means more energy, and a single blade can be longer than a football field. And, wind power is loud enough for neighbors to complain, even if the wind farm is miles away.


Q3: Do I need a permit to install a wind turbine?

A3:  The development of the first installation of any wind turbine will only be permitted if the property does not have an existing air source heat pump. Additional wind turbines or air source heat pumps within the same property require planning permission.


100W Red Lantern Wind Turbine 12V 24V Low Speed Wind Turbine 0


Model SH-R100 SH-R200 SH-R300 SH-R400
Rated Power 100W 200W 300W 400W
Maximum Power 120W 220W 320W 420W
Voltage 12V/24V 12V/24V 12V/24V 12V/24V
Rotor Diameter 0.9m 0.9m 0.9m 0.9m
Weight 8kg 8.5kg 9kg 9.5kg
Blade Quantity 5 5 5 5
Start-up Wind Speed 2.5m/s 2.5m/s 2.5m/s 2.5m/s
Rated Wind Speed 12m/s 12m/s 12m/s 12m/s
Survival Wind Speed 45m/s 45m/s 45m/s 45m/s
Blade Material Nylon Fiber Nylon Fiber Nylon Fiber Nylon Fiber
Generator Housing Material Aluminum Alloy
Packing Carton
Generator Type Three phase AC permanent magnet
alnico magnet NdFeB
Working Temperature -40℃-80℃



Company Profile

Jiangsu Shenghuang New Energy Technology Co..Ltd. is located in Wuxi Liangxi district Jinshan North science and Technology Industrial Park, is a factory commitment to wind generators, solar monitoring system, wind and solar complementary monitoring system, photovoltaic system, wind and solar complementary controller,inverter,Gel battery, Lithium Battery Development and integrated application of green energy saving and environmental protection technology enterprises.
