Product Details:
|
Product Name: | MPPT Wind Charge Controller | Rated Voltage: | 12V/24V/48V |
---|---|---|---|
Rated Power: | 400W/800W | Interface: | English |
Accessory: | User Manual | CE Certification: | Yes |
High Light: | 1000W MPPT Wind Charge Controller,Off Grid mppt wind controller,48V mppt wind controller |
Jiangsu Shenghuang New Energy Technology Co..Ltd. is located in Wuxi Liangxi district Jinshan North science and Technology Industrial Park, is a factory commitment to wind generators, solar monitoring system, wind and solar complementary monitoring system, photovoltaic system, wind and solar complementary controller,inverter,Gel battery, Lithium Battery Development and integrated application of green energy saving and environmental protection technology enterprises.
Supporting battery type: lead-acid, gel battery, ternary lithium battery, lithium iron phosphate battery
1. The wind turbine is charged in the breeze, and the MPPT boost is intelligently adjusted.
2. Wind turbine PWM stepless unloading, external unloading device, solar energy intelligent disconnection charging.
3. The LCD displays the voltage and current of the battery, fan, solar and load, and can set some parameters.
4. The load output can be adjusted in various working modes.
5. High performance and stable chip control.
6. The internal circuit board of the controller is sprayed with three-proof paint, which is dust-proof, moisture-proof and anti-static.
Wind charging mode | boosts bucks boost&buck MPPT | PWM | ||||
Rated system voltage | 12V | 24V | 48V | 12V | 24V | 48V |
Max wind power | 400W | 800W | 1KW | 500W | 800W | 2KW |
QTY of the external dump load | lpcs 0.5kw | 2pcs 0.5kw | lpcs 1kw | lpcs 0.5kw | 2pcs 0.5kw | 2pcs 1kw |
Max wind input voltage | 80V | 180V | 80V | 180V | ||
External dump load | YES | |||||
Wind protection | Wind over current,wind over voltage, over speedTmanual brake | |||||
Display | LCD display | |||||
Working temperature / humidity range | -20°CT5 °C『35~85%RH ( non-condensing ) | |||||
Battery Temperature Compensation Function | Alternative Do not purchase ,do not have this function | |||||
Battery | Lead-acid batteries, lithium batteries | |||||
Static Power Consumption | <1.8W | |||||
Communication function | RS232, RS485 (additional payment) |
Battery rated voltage | 12V | 24V | 48V |
Battery low voltage protection | 10.2V ( adjustable ) | 20.4V ( adjustable ) | 40.8V ( adjustable ) |
Battery low voltage recovery | 11.5V (adjustable) | 23.0V ( adjustable ) | 46.5V ( adjustable ) |
Battery over voltage protection | 14.7V ( adjustable ) | 29.4V ( adjustable ) | 58.8V ( adjustable ) |
Battery over voltage recovery | 13.2V (adjustable) | 26.4V ( adjustable ) | 52.8V ( adjustable ) |
Battery float voltage | 13.5V ( adjustable ) | 27.0V ( adjustable ) | 54.0V ( adjustable ) |
Protect wind generator from over-current and speed

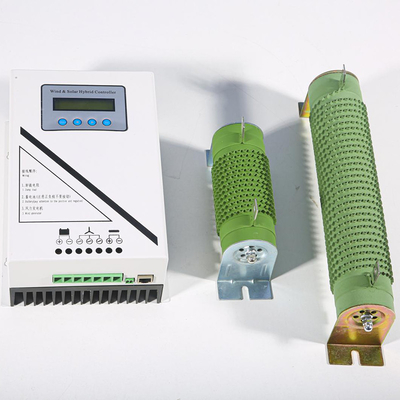

Once the wind current is over the setting max current and speed,PWM intelligent dumping will start automatically. That protect wind generator. > Intelligent limiting of batteries max current wind generator external dump load resistance
Battery Temperature Compensation Function
(This function is alternative)
RS232 or RS485 interface (This function needs additional payment)
By RS232 or RS485 serial interface communication, you could monitor the whole system, storage and analyze data. Program could be upgraded by serial interface. Connect PC and controller by serial interface. You could set the parameters on PC and controller simultaneously. Software is free,easy to operate and no need to be installed.
Q and A
Q1:Can MPPT be used for wind turbines?
A1: Solar charge controllers cannot be used for wind turbines, although both energy sources use the same type of controller, PWM and MPPT.
Q2: What is MPPT Wind Charge Controller?
A2: The wind MPPT controller charger is specially designed for wind turbines with power less than 1000W. MPPT charging enables the wind turbine to charge the battery even at low wind and rotor speeds, while at the same time Increase the utilization rate of wind power by 10%-15%.
Q3: What is a charge controller for a wind turbine?
A3: A wind charge controller is an electronic device that both ensures that the turbine does not overcharge the battery and also limits the speed at which the wind turbine blades can spin when the battery is full or in high winds.
