Off Grid Wind Turbine Complete System 48V 200Ah 300Ah Multi Application

Off Grid Wind Turbine Complete System 48V 200Ah 300Ah Multi Application
Off Grid Wind Turbine Complete System 48V 200Ah 300Ah Multi Application Off Grid Wind Turbine Complete System 48V 200Ah 300Ah Multi Application

Large Image :  Off Grid Wind Turbine Complete System 48V 200Ah 300Ah Multi Application

Product Details:
Place of Origin: China-Jiangsu Province
Brand Name: Jiangsu Shenghuang
Certification: CE
Model Number: On-grid or Off-grid
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: To Be Negotiated
Packaging Details: Wooden Box
Delivery Time: 30-60 Working Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 Sets Per Year

Off Grid Wind Turbine Complete System 48V 200Ah 300Ah Multi Application

Product Name: 48V 200Ah Wind Turbine Complete System Rated Power: Customized
Type: On-grid, Off-grid,Hybrid Battery: Lithium/Lead-acid
Application: Off-grid System Optional: Remote Monitoring
High Light:

Wind Turbine Complete System CE


solar wind power generator system 300Ah


complete wind generator system 48V 200Ah

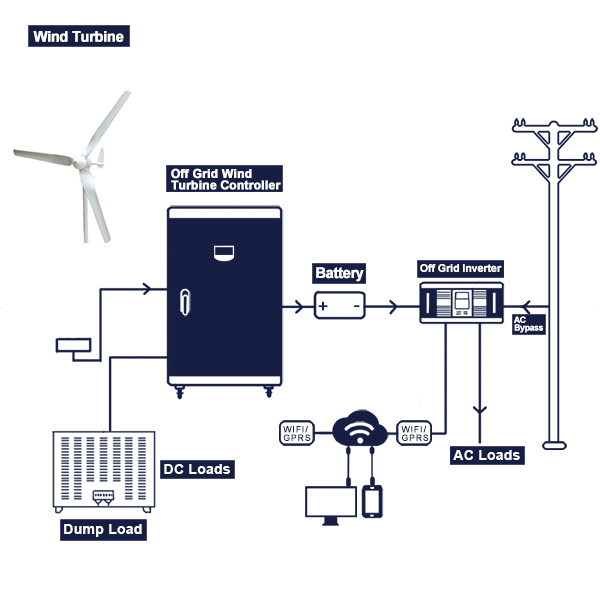

Off-grid Wind Turbine Complete System With 48V 200Ah 300Ah For Multi Applications



If your system is on the grid, we still recommend designing because you're guessing or trusting the salesperson's estimate of performance, which is the key to calculating your payback period, and again, you're just guessing. A small underestimation or overestimation far exceeds the design cost. An undersized battery pack or inverter will significantly shorten the life of the battery system, leaving you with frequent power outages and damage to system components, leading to rapid degradation, while an oversized system will cost you more and be more efficient. Low.


According to many renewable energy experts, a small "hybrid" power system that combines home wind and home solar (photovoltaic or PV) technologies offers several advantages over either single system.


1. Stable power supply

With wind turbines, solar panels, and battery packs, you'll be one of the few people in the world to have electricity 24/7, 365 days a year. The sun produces energy during the day and the wind at night, and batteries store it for up to five days.


2. Reliable energy supply

With a hybrid energy system, you are hedging your bet. If the sun doesn't shine, you have wind to lean on. If the wind stops, you can turn to a backup generator or battery pack to keep you going. By taking this hybrid approach, you can get a more reliable energy system than the U.S. grid.


3 Device-friendly energy supply

Charge controllers in hybrid solar-wind systems provide a properly managed and consistent energy flow that is not always possible with conventional energy sources.


4. Minimal life cycle and running costs

Renewable energy systems are easy to maintain and inexpensive. Hybrid energy systems are even more cost-effective because the pressure is shared between different power generation systems.


Off Grid Wind Turbine Complete System 48V 200Ah 300Ah Multi Application 0

Technical Parameter
NO. Item Parameters
1.Performance Type LiFePO4 Battery
Nominal Voltage 51.2V
Rated Capacity 200Ah
Operating Voltage Range 42V-57.0V(Typical:51.2V)
Charging Voltage 57.0V
Discharge cut-off voltage 42V
Charging Current(Max.) 60A
Discharge Current(Max.) 100A
Width 435mm
Height 875mm
Depth 190mm
Weight 102kg
2.Function Installation Method Wall-mounted
Communication RS485
Terminal stud M8 Bolt
Alarm&protection Over voltage,under voltage,short circuit,over current,over temperature,low temperature protection,etc.
3.Working Condition Cooling Mode Automatic cold and hot
Altitude ≤4000m
Humidity 15%-85%
Operating Temperature

Charge 0℃-45℃

Discharge -10℃-60℃

Recommended charge temperature 15℃-40℃
Recommended discharge temperature 15℃-40℃
Recommended storage temperature 0℃-35℃



































Description of Product


1. What is wind&solar hybrid system?

Overview. The term wind hybrid system describes any combination of wind energy with one or more additional sources of electricity generation (e.g. biomass, solar or a generator using fossil fuels). Hybrid system are very often used for stand-alone applications at remote sites.


2. What is the best off-grid power supply?

Here are five cutting-edge real-world off-grid power sources.

A.  Solar roof tiles.

B.  Residential wind turbines

C.  Geothermal heat pump

D.  Micro hydro

E.  Solar/wind hybrid system

F.  Off-grid power system


3. Are residential wind turbines worth it?

Small wind turbines are a cost-effective way to generate electricity for your home. However, many homes are not suitable for installing wind turbines for several reasons. First, in order to generate enough power to make the upfront investment worthwhile, wind turbines need to be located in windy locations.


4. What is an off-grid system?

Off-grid systems work independently of the grid, but have batteries to store the solar energy generated by the system. The system usually consists of solar panels, batteries, charge controller, grid box, inverter, mounting structure and system balance.
