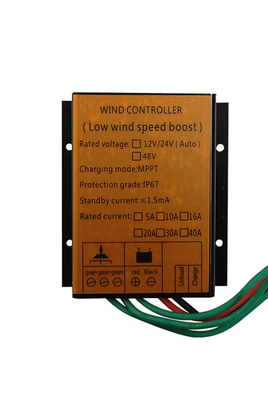

Modern Design OEM ODM MPPT Wind Charge Controller 12V 24V 48V 1000W With CE Certification

Jiangsu Shenghuang New Energy Technology Co..Ltd. is located in Wuxi Liangxi district Jinshan North science and Technology Industrial Park, is a factory commitment to wind generators, solar monitoring system, wind and solar complementary monitoring system, photovoltaic system, wind and solar complementary controller,inverter,Gel battery, Lithium Battery Development and integrated application of green energy saving and environmental protection technology enterprises.

Supporting battery type: lead-acid, gel battery, ternary lithium battery, lithium iron phosphate battery

Product Feature

1.Features
● Aluminum housing for better cooling, IP67 protection
● Over charge protection, electronic short circuit protection.
● The controller has high temperature protection function
● Indicator lights indicate the states of the system.
● Boost charging function. It can charging in the breeze.

2.Safety Information
1.Please do not immerse the controller in the corrosive liquid, which will damage the controller and produce harmful gas.
2.While connecting the system, the voltage may exceed human safety voltage, please use insulation tools, and keep your hands dry.
3.If battery is connected reversely, that will damage the controller’s fuse. Please avoid reverse the battery.
4.Battery storage a lot of energy, if battery is short circuited, that will be danger. It is recommended to connect fuse in series to prevent short circuit protection.
5.The battery may produce flammable gas, please stay away from the spark.

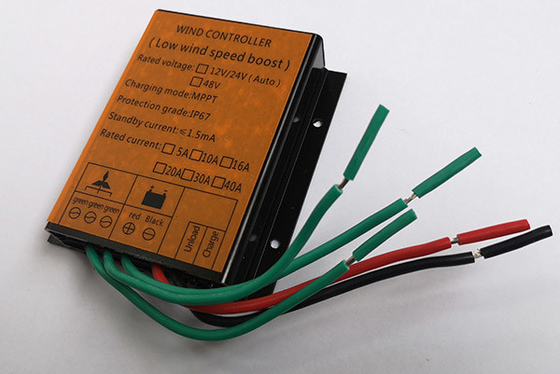

Please according to the following wiring
1.Connect the battery. From right to left, the fourth red cable connect positive pole of battery, the fifth black cable connect negative pole of battery.
2.Connect the wind generator. From right, the first, second and third green wires connect wind generator.

Electrical Parameter

=

Q and A

Q1:Can MPPT be used for wind turbines?

A1: Solar charge controllers cannot be used for wind turbines, although both energy sources use the same type of controller, PWM and MPPT.

Q2: What is MPPT Wind Charge Controller?

A2:  The wind MPPT controller charger is specially designed for wind turbines with power less than 1000W. MPPT charging enables the wind turbine to charge the battery even at low wind and rotor speeds, while at the same time Increase the utilization rate of wind power by 10%-15%.

Q3: What is a charge controller for a wind turbine?

A3:  A wind charge controller is an electronic device that both ensures that the turbine does not overcharge the battery and also limits the speed at which the wind turbine blades can spin when the battery is full or in high winds.
