220V 380V Horizontal Wind Turbine Three Phase Permanent Magnet Generator For Alternative Energy

China Shenghuang New Energy Technology Co.,Ltd certification
China Shenghuang New Energy Technology Co.,Ltd certification
Customer Reviews
Fasten packing!Thanks for the good service!I will place mass order soon!

—— Zenia

I bough this style before,but it cannot produce electricity.I try buy same style from this supplier.I am so luck,and it is higher quality.The best is that it can produce electricity.

—— Lena

I'm Online Chat Now

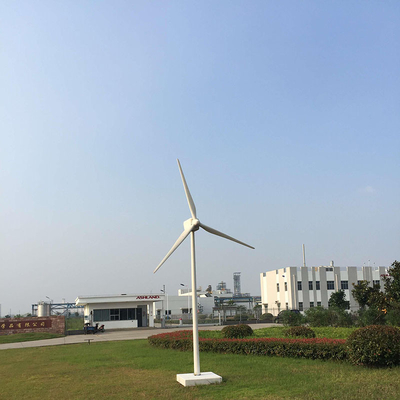

220V 380V Horizontal Wind Turbine Three Phase Permanent Magnet Generator For Alternative Energy

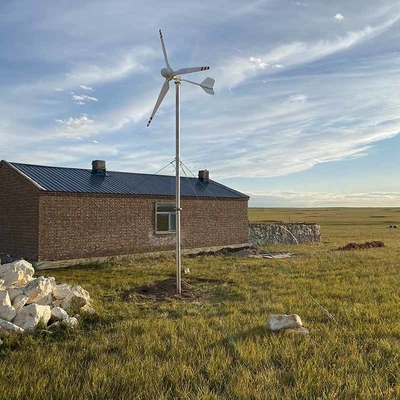

220V 380V Horizontal Wind Turbine Three Phase Permanent Magnet Generator For Alternative Energy
220V 380V Horizontal Wind Turbine Three Phase Permanent Magnet Generator For Alternative Energy 220V 380V Horizontal Wind Turbine Three Phase Permanent Magnet Generator For Alternative Energy

Large Image :  220V 380V Horizontal Wind Turbine Three Phase Permanent Magnet Generator For Alternative Energy

Product Details:
Place of Origin: China-Jiangsu Province
Brand Name: Jiangsu Shenghuang
Certification: CE
Model Number: SH-A5000W
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: $769-$839/Piece
Packaging Details: Wooden Box
Delivery Time: 10-25 working days
Payment Terms: Negotiated, L/C, D/A, D/P, T/T, Western Union
Supply Ability: 800 sets per month

220V 380V Horizontal Wind Turbine Three Phase Permanent Magnet Generator For Alternative Energy

Name: 5kw Horizonal Wind Turbine Rated Power: 1-20kw
Type: Horizontal Generator Type: Permanent Magnet Generator
Flange Connection/Customization: YES Phase: 3 Phase
High Light:

380V Horizontal Wind Turbine


Three Phase Permanent Magnet Generator


horizontal wind turbine design

220V 380V Modern Style Horizontal Wind Turbine Generator Three Phase Permanent Magnet Generator For Alternative Energy

Wind turbines work on a simple principle: instead of using electricity to make wind—like a fan—wind turbines use wind to make electricity. Wind turns the propeller-like blades of a turbine around a rotor, which spins a generator, which creates electricity.


The terms "wind energy" and "wind power" both describe the process by which the wind is used to generate mechanical power or electricity. This mechanical power can be used for specific tasks (such as grinding grain or pumping water) or a generator can convert this mechanical power into electricity.


With the development and utilization of new energy, traditional power generation methods are gradually reduced, replaced by mainstream power generation methods such as solar power generation and wind power generation. However, not all occasions are suitable for installation of wind turbines to achieve wind power generation. The installation of wind turbines seems to be very demanding on the surrounding space.


Before judging whether the environment is suitable for equipment installation, it is necessary to understand important factors such as the model of the wind turbine and the height of the tower, and then consider it on this basis. Under normal circumstances, the installation location of wind turbines will be selected in an open place where the main wind direction is less affected by surrounding trees and houses throughout the year. Another requirement is to maintain a certain distance from trees and buildings.


At the same time, the shape and location of the building should be considered to ensure that the installation site is wide. Also, since the entire power generation system will be equipped with some electrical equipment, there needs to be a power distribution room at the installation location. Combined with these requirements, a reasonable installation location can be selected to ensure that the capacity of the wind turbine is fully utilized.


1. Low Start-up Wind Speed
2. Three Blades
3. Flange Connection with easy installation
4. Certified with CE,ROHS and ISO 9001 2000
5. Customized Colors
6. High-efficiency Three Phase PMG Generator




1. Marine,&Boat

2. Streetlights

3. Home, Openning Plaza lighting.

4. Wind&Solar Hybrid System

5. Monitoring device

6. Factory



Product Parameter


Model SH-A1000 SH-A1500 SH-A2000 SH-A2500 SH-A3000 SH-A5000 SH-A10K SH-A15K SH-A20K
Rated Power 1KW 1.5KW 2KW 2.5KW 3KW 5KW 10KW 15KW 20KW
Maximum Power 1.2KW 1.7KW 2.2KW 2.7KW 3.2KW 5.5KW 11KW 17KW 22KW
Nominal Voltage 48V/96V 48V/96V 48V/96V 48V/96V 96V/120V/220V 120V/220V/380V 120V/220V/380V 120V/220V/380V 120V/220V/380V
Rotor Diameter 2.8m 3.2m 3.2m 3.6m 4.8m 5.6m 7m 8m 9.8m
Weight 60kg 70kg 70kg 80kg 160kg 150kg 260kg 320kg 380kg
Package Weight 70kg 80kg 88kg 95kg 176kg 310kg 400kg 390kg 440kg
Package Size(mm) 1660*380*420 1630*420*450 1630*420*450 1830*420*450 2550*480*500
Start-up Wind Speed 3m/s
Rated Wind Speed 11m/s
Survival Wind Speed 50m/s
Blade Quantity 3 piece
Blade Material FRP
Generator Housing Material Carbon Steel
Packing Wooden Box
Generator Type 3 Phase Permanent Magnet Generator
alnico magnet NdFeB
brake mode electromagnetism
The wind adjustment Automatically adjust to windward
Working temperature -40℃-80℃



220V 380V Horizontal Wind Turbine Three Phase Permanent Magnet Generator For Alternative Energy 0

What is the best material for wind turbine blades?

Most blades are made of glass fiber reinforced polyester or epoxy resin. Carbon fiber or Kevlar is also used as reinforcement. Nowadays, the possible use of wood compounds, such as wood epoxy or wood fiber epoxy, is being studied.



How many blades are best for a wind turbine?
Generally, most horizontal axis wind turbines have three blades. The decision to design a three blade turbine was a compromise. Due to its reduced resistance, the single blade design is the best number to achieve maximum efficiency,hwever,one-blade design makes the whole set of wind turbine generator not stable.



How can you increase the efficiency of a wind turbine?
Doubling the diameter of turbine blades will increase the available power of wind energy by four times. Therefore, if the wind speed is low, larger diameter turbine blades are needed to obtain the maximum wind power efficiency.



Why are 3 blade turbines preferred?
For three blades, the angular momentum remains constant, because when one blade is upward, the other two point to an angle. So the turbine can rotate with the wind.


What happens if a wind turbine spins too fast?

On the other hand, if the wind turbine rotates too fast, it may cause mechanical damage; And two create a "wall" to resist the wind to safely rotate the turbine to generate electricity. Most wind turbines have a maximum speed at which they can operate normally.



Will adding more blades to a windmill make it go faster?

Larger and longer turbine blades mean higher aerodynamic efficiency. Generating more electricity in a turbine means less energy is lost when it enters the transmission system and from there into the generator.



Why do some wind turbines not turn?
But why do you see that a stationary wind turbine may not turn? It is mainly for one of the following two reasons: they are being maintained or need to be maintained. The wind is not strong enough for them to operate, or the wind is too strong for them to operate


The scope of application continues to be expanded. In addition to the traditional application of small wind turbines for the purpose of powering TV for users in the vast agricultural and remote areas, due to the soaring prices of gasoline, diesel and other fuels, and the lack of smooth supply channels, users in inland area, rivers and lakes, fishing boats, border posts, troops, meteorology, microwave stations, etc who use diesel power generation will gradually switch to wind power generation or wind-solar hybrid power generation. In addition, small wind turbines are also installed in ecological parks, tree-lined paths, villa courtyards and other places as landscapes for people to enjoy leisurely.


Due to the improvement of the living standards of farmers and herdsmen and the continuous increase of electricity consumption, the power of single unit small wind turbines continues to increase,accounting for 80% of the total annual output. As the majority of farmers are eager to use electricity uninterrupted, the promotion and application of "wind-solar hybrid power generation system" has been significantly accelerated, and the development of multiple units has become the development direction for a period of time in the future.


Wind-solar hybrid multi-unit series power generation system is to install multiple low-power wind turbines in the same place, to charge multiple large-capacity battery packs at the same time, and control the output uniformly by a high-power control inverter. The advantage of this configuration is that:


(1) The technology of small wind turbines is mature, the structure is simple, the quality is stable, safe, reliable and economical

(2) Easy to assemble, disassemble, transport, maintain, and operate;

(3) If maintenance or shutdown is required, the rest of the units will generate electricity as usual, which will not affect the normal use of the system;

(4) Multiple wind-solar hybrid power generation systems in clusters naturally become a scenic spot and a green power station without environmental pollution.


Company Profile


Jiangsu Shenghuang New Energy Technology Co..Ltd. is located in Wuxi Liangxi district Jinshan North science and Technology Industrial Park, is a factory commitment to wind generators, solar monitoring system, wind and solar complementary monitoring system, photovoltaic system, wind and solar complementary controller,inverter,Gel battery, Lithium Battery Development and integrated application of green energy saving and environmental protection technology enterprises.


Focus on the development of solar power, wind-solar power generation system integration,the business consists of wind and solar monitoring system, Wind Turbine Grid and off-grid system PV system equipment design and procurement, complete sets, feasibility study and installation commissioning .
