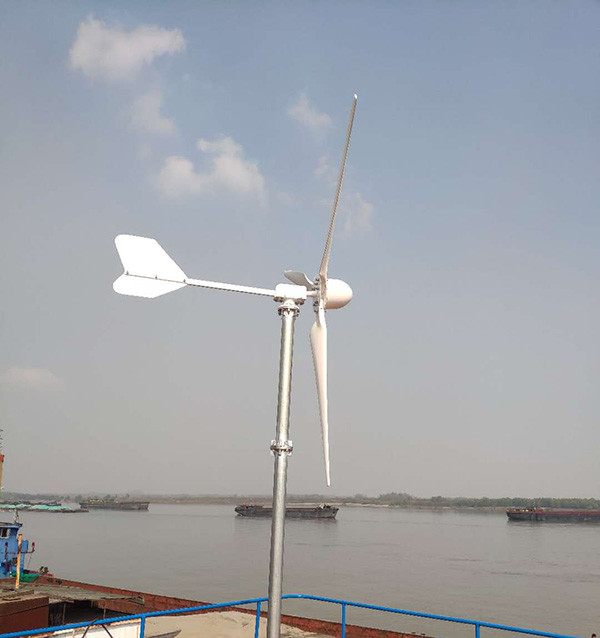

IP54 Horizontal Wind Turbine Residential Wind Power Low Vibration

IP54 Horizontal Wind Turbine Residential Wind Power Low Vibration
IP54 Horizontal Wind Turbine Residential Wind Power Low Vibration IP54 Horizontal Wind Turbine Residential Wind Power Low Vibration

Large Image :  IP54 Horizontal Wind Turbine Residential Wind Power Low Vibration

Product Details:
Place of Origin: China-Jiangsu Province
Brand Name: Jiangsu Shenghuang
Certification: CE
Model Number: SH-A3000
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: To Be Negotiated
Packaging Details: Wooden Box
Delivery Time: 10-25 working days
Payment Terms: Negotiated, L/C, D/A, D/P, T/T, Western Union
Supply Ability: 800 sets per month

IP54 Horizontal Wind Turbine Residential Wind Power Low Vibration

Name: 3KW 48V Horizonal Wind Turbine Rated Power: 3KW
Application: Home/Yacht/Remote Area/Communication Station/Street Lamp Colors: White
Design Life: 20 Years Protection: IP54
High Light:

IP54 Horizontal Wind Turbine


Horizontal Wind Turbine Residential


horizontal axis wind mill Low Vibration

IP54 Wind Power Horizontal Wind Turbine,Residential Wind Power With Low Vibration Home Wiring.

Wind turbines work on a simple principle: instead of using electricity to make wind—like a fan—wind turbines use wind to make electricity. Wind turns the propeller-like blades of a turbine around a rotor, which spins a generator, which creates electricity.


The terms "wind energy" and "wind power" both describe the process by which the wind is used to generate mechanical power or electricity. This mechanical power can be used for specific tasks (such as grinding grain or pumping water) or a generator can convert this mechanical power into electricity.


For permanent magnet excitation, the generator achieves maintenance-free operation and reduced failure rates by removing the external excitation slip rings. Since no external excitation system is required, the power generation efficiency is improved. By using water cooling and an internal fan cooling system, the generator does not draw air from the outside, which is suitable for environments with many fine particles in spaces or coastal/offshore areas.


Small wind turbines, sometimes called domestic wind turbines, are much smaller than the turbines you see at wind farms. While large wind turbines have blades that can span the length of a football field, smaller wind turbines are often up to 10 meters in diameter. Due to the smaller blades, the power output of these wind turbines is much smaller than that of larger turbines. This makes small wind turbines ideal for projects with smaller power demands, such as residential, portable or off-grid applications.


The best locations for small wind turbines are those that experience frequent, high wind speeds. Generally speaking, the taller the turbine, the stronger the ambient wind and the stronger the power generation capacity. The best locations for small wind turbines are mostly in rural areas, as these tend to have large spaces with few obstacles that would affect wind speed. In some cases, small wind turbines have the potential to offset 100% of household electricity bills.


1. Low Start-up Wind Speed
2. Three Blades
3. Flange Connection with easy installation
4. Certified with CE,ROHS and ISO 9001 2000
5. Customized Colors
6. High-efficiency Three Phase PMG Generator




1. Marine,&Boat

2. Streetlights

3. Home, Openning Plaza lighting.

4. Wind&Solar Hybrid System

5. Monitoring device

6. Factory



Product Parameter


Model SH-A1000 SH-A1500 SH-A2000 SH-A2500 SH-A3000 SH-A5000 SH-A10K SH-A15K SH-A20K
Rated Power 1KW 1.5KW 2KW 2.5KW 3KW 5KW 10KW 15KW 20KW
Maximum Power 1.2KW 1.7KW 2.2KW 2.7KW 3.2KW 5.5KW 11KW 17KW 22KW
Nominal Voltage 48V/96V 48V/96V 48V/96V 48V/96V











Rotor Diameter 2.8m 3.2m 3.2m 3.6m 4.8m 5.6m 7m 8m 9.8m
Weight 60kg 70kg 70kg 80kg 160kg 150kg 260kg 320kg 380kg
Package Weight 70kg 80kg 88kg 95kg 176kg 310kg 400kg 390kg 440kg
Package Size(mm) 1660*380*420 1630*420*450 1630*420*450 1830*420*450 2550*480*500
Start-up Wind Speed 3m/s
Rated Wind Speed 11m/s
Survival Wind Speed 50m/s
Blade Quantity 3 piece
Blade Material FRP
Generator Housing Material Carbon Steel
Packing Wooden Box
Generator Type 3 Phase Permanent Magnet Generator
alnico magnet NdFeB
brake mode electromagnetism
The wind adjustment Automatically adjust to windward
Working temperature -40℃-80℃



IP54 Horizontal Wind Turbine Residential Wind Power Low Vibration 0

What is the best material for wind turbine blades?

Most blades are made of glass fiber reinforced polyester or epoxy resin. Carbon fiber or Kevlar is also used as reinforcement. Nowadays, the possible use of wood compounds, such as wood epoxy or wood fiber epoxy, is being studied.



How many blades are best for a wind turbine?
Generally, most horizontal axis wind turbines have three blades. The decision to design a three blade turbine was a compromise. Due to its reduced resistance, the single blade design is the best number to achieve maximum efficiency,hwever,one-blade design makes the whole set of wind turbine generator not stable.


Which generator is used in Wind Turbine Generator?

Generally speaking,the most common type of generator that used is Permanent Magnet Generator,others can be Magnetic Levitation Type.


How big a wind turbine do we need to power a house?

A typical household uses about 10649 kwh, with an average of 877 kwh per month. According to the average wind speed in the region, a wind turbine with a rated power in the range of 5 to 15 kW is required to make a significant contribution to this demand.


Are Wind Turbine Generators AC or DC?

Wind Turbine Generator Produces AC,you need apply inverter to transfer the AC to DC.


How does the wind turbine generator work?

Wind turbines usually operate on a simple principle: instead of using electricity to generate wind (such as fans), wind turbines use wind to generate electricity. The wind rotates the propeller like blades of the turbine in the rotor, thereby turning the generator to generate electricity



Can I put a wind turbine in my back yard?

Most wind turbines are not small enough to be installed in the backyard - because larger size means more energy, and a single blade can be longer than a football field. Wind power is very noisy. Even if the wind farm is miles away, neighbors sometimes complain.


The scope of application continues to be expanded. In addition to the traditional application of small wind turbines for the purpose of powering TV for users in the vast agricultural and remote areas, due to the soaring prices of gasoline, diesel and other fuels, and the lack of smooth supply channels, users in inland area, rivers and lakes, fishing boats, border posts, troops, meteorology, microwave stations, etc who use diesel power generation will gradually switch to wind power generation or wind-solar hybrid power generation. In addition, small wind turbines are also installed in ecological parks, tree-lined paths, villa courtyards and other places as landscapes for people to enjoy leisurely.


Due to the improvement of the living standards of farmers and herdsmen and the continuous increase of electricity consumption, the power of single unit small wind turbines continues to increase,accounting for 80% of the total annual output. As the majority of farmers are eager to use electricity uninterrupted, the promotion and application of "wind-solar hybrid power generation system" has been significantly accelerated, and the development of multiple units has become the development direction for a period of time in the future.


Wind-solar hybrid multi-unit series power generation system is to install multiple low-power wind turbines in the same place, to charge multiple large-capacity battery packs at the same time, and control the output uniformly by a high-power control inverter. The advantage of this configuration is that:


(1) The technology of small wind turbines is mature, the structure is simple, the quality is stable, safe, reliable and economical

(2) Easy to assemble, disassemble, transport, maintain, and operate;

(3) If maintenance or shutdown is required, the rest of the units will generate electricity as usual, which will not affect the normal use of the system;

(4) Multiple wind-solar hybrid power generation systems in clusters naturally become a scenic spot and a green power station without environmental pollution.


Company Profile


Jiangsu Shenghuang New Energy Technology Co..Ltd. is located in Wuxi Liangxi district Jinshan North science and Technology Industrial Park, is a factory commitment to wind generators, solar monitoring system, wind and solar complementary monitoring system, photovoltaic system, wind and solar complementary controller,inverter,Gel battery, Lithium Battery Development and integrated application of green energy saving and environmental protection technology enterprises.


Focus on the development of solar power, wind-solar power generation system integration,the business consists of wind and solar monitoring system, Wind Turbine Grid and off-grid system PV system equipment design and procurement, complete sets, feasibility study and installation commissioning .
