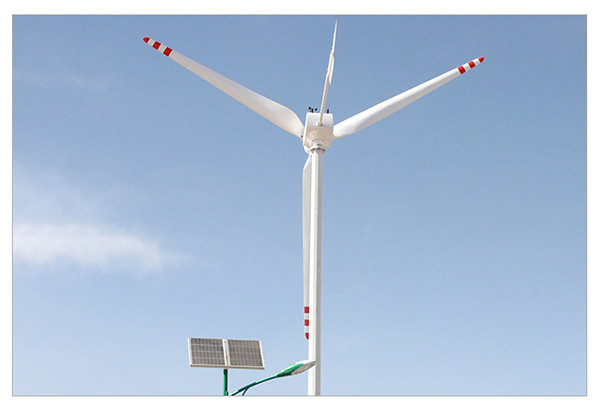

Flange Connection Horizontal Wind Turbine 10KW 220V Horizontal Wind Mill

Flange Connection Horizontal Wind Turbine 10KW 220V Horizontal Wind Mill
Flange Connection Horizontal Wind Turbine 10KW 220V Horizontal Wind Mill Flange Connection Horizontal Wind Turbine 10KW 220V Horizontal Wind Mill

Large Image :  Flange Connection Horizontal Wind Turbine 10KW 220V Horizontal Wind Mill

Product Details:
Place of Origin: China-Jiangsu Province
Brand Name: Jiangsu Shenghuang
Certification: CE
Model Number: SH-A10K
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: To Be Negotiated
Packaging Details: Wooden Box
Delivery Time: 10-25 working days
Payment Terms: Negotiated, L/C, D/A, D/P, T/T, Western Union
Supply Ability: 800 sets per month

Flange Connection Horizontal Wind Turbine 10KW 220V Horizontal Wind Mill

Name: 10KW Horizonal Wind Turbine Rated Power: 10KW
Application: Home/Yacht/Remote Area/Communication Station/Street Lamp Colors: White/Red/Customized
Design Life: 20 Years Phase: 3 Phase
High Light:

Flange Connection Horizontal Wind Turbine


Horizontal Wind Turbine 10KW


220V horizontal wind mill

Flange Connection Horizontal Wind Turbine 10KW 220V With Glass Fibre Blade

Wind turbines work on a simple principle: instead of using electricity to make wind—like a fan—wind turbines use wind to make electricity. Wind turns the propeller-like blades of a turbine around a rotor, which spins a generator, which creates electricity.


The terms "wind energy" and "wind power" both describe the process by which the wind is used to generate mechanical power or electricity. This mechanical power can be used for specific tasks (such as grinding grain or pumping water) or a generator can convert this mechanical power into electricity.


Wind turbines use wind power to generate electricity. When the wind blows, the blades are forced to spin, driving the turbine to generate electricity. The stronger the wind, the more electricity is produced.


There are two types of domestic wind turbines:


Pole Mounts – These poles are self-contained, mounted in appropriate exposed locations and have a generating capacity of approximately 6kW.

Building Mounts – These systems are smaller than mast mounted systems and can be installed on roofs with suitable wind resources. Typically these powers are around 2kW.


1. Low Start-up Wind Speed
2. Three Blades
3. Flange Connection with easy installation
4. Certified with CE,ROHS and ISO 9001 2000
5. Customized Colors
6. High-efficiency Three Phase PMG Generator




1. Marine,&Boat

2. Streetlights

3. Home, Openning Plaza lighting.

4. Wind&Solar Hybrid System

5. Monitoring device

6. Factory



Product Parameter


Model SH-A1000 SH-A1500 SH-A2000 SH-A2500 SH-A3000 SH-A5000 SH-A10K SH-A15K SH-A20K
Rated Power 1KW 1.5KW 2KW 2.5KW 3KW 5KW 10KW 15KW 20KW
Maximum Power 1.2KW 1.7KW 2.2KW 2.7KW 3.2KW 5.5KW 11KW 17KW 22KW
Nominal Voltage 48V/96V 48V/96V 48V/96V 48V/96V











Rotor Diameter 2.8m 3.2m 3.2m 3.6m 4.8m 5.6m 7m 8m 9.8m
Weight 60kg 70kg 70kg 80kg 160kg 150kg 260kg 320kg 380kg
Package Weight 70kg 80kg 88kg 95kg 176kg 310kg 400kg 390kg 440kg
Package Size(mm) 1660*380*420 1630*420*450 1630*420*450 1830*420*450 2550*480*500
Start-up Wind Speed 3m/s
Rated Wind Speed 11m/s
Survival Wind Speed 50m/s
Blade Quantity 3 piece
Blade Material FRP
Generator Housing Material Carbon Steel
Packing Wooden Box
Generator Type 3 Phase Permanent Magnet Generator
alnico magnet NdFeB
brake mode electromagnetism
The wind adjustment Automatically adjust to windward
Working temperature -40℃-80℃



Flange Connection Horizontal Wind Turbine 10KW 220V Horizontal Wind Mill 0

What is the best material for wind turbine blades?

Most blades are made of glass fiber reinforced polyester or epoxy resin. Carbon fiber or Kevlar is also used as reinforcement. Nowadays, the possible use of wood compounds, such as wood epoxy or wood fiber epoxy, is being studied.



How many blades are best for a wind turbine?
Generally, most horizontal axis wind turbines have three blades. The decision to design a three blade turbine was a compromise. Due to its reduced resistance, the single blade design is the best number to achieve maximum efficiency,hwever,one-blade design makes the whole set of wind turbine generator not stable.


Which generator is used in Wind Turbine Generator?

Generally speaking,the most common type of generator that used is Permanent Magnet Generator,others can be Magnetic Levitation Type.


How big a wind turbine do we need to power a house?

A typical household uses about 10649 kwh, with an average of 877 kwh per month. According to the average wind speed in the region, a wind turbine with a rated power in the range of 5 to 15 kW is required to make a significant contribution to this demand.


Are Wind Turbine Generators AC or DC?

Wind Turbine Generator Produces AC,you need apply inverter to transfer the AC to DC.


How does the wind turbine generator work?

Wind turbines usually operate on a simple principle: instead of using electricity to generate wind (such as fans), wind turbines use wind to generate electricity. The wind rotates the propeller like blades of the turbine in the rotor, thereby turning the generator to generate electricity



Can I put a wind turbine in my back yard?

Most wind turbines are not small enough to be installed in the backyard - because larger size means more energy, and a single blade can be longer than a football field. Wind power is very noisy. Even if the wind farm is miles away, neighbors sometimes complain.


The scope of application continues to be expanded. In addition to the traditional application of small wind turbines for the purpose of powering TV for users in the vast agricultural and remote areas, due to the soaring prices of gasoline, diesel and other fuels, and the lack of smooth supply channels, users in inland area, rivers and lakes, fishing boats, border posts, troops, meteorology, microwave stations, etc who use diesel power generation will gradually switch to wind power generation or wind-solar hybrid power generation. In addition, small wind turbines are also installed in ecological parks, tree-lined paths, villa courtyards and other places as landscapes for people to enjoy leisurely.


Due to the improvement of the living standards of farmers and herdsmen and the continuous increase of electricity consumption, the power of single unit small wind turbines continues to increase,accounting for 80% of the total annual output. As the majority of farmers are eager to use electricity uninterrupted, the promotion and application of "wind-solar hybrid power generation system" has been significantly accelerated, and the development of multiple units has become the development direction for a period of time in the future.


Wind-solar hybrid multi-unit series power generation system is to install multiple low-power wind turbines in the same place, to charge multiple large-capacity battery packs at the same time, and control the output uniformly by a high-power control inverter. The advantage of this configuration is that:


(1) The technology of small wind turbines is mature, the structure is simple, the quality is stable, safe, reliable and economical

(2) Easy to assemble, disassemble, transport, maintain, and operate;

(3) If maintenance or shutdown is required, the rest of the units will generate electricity as usual, which will not affect the normal use of the system;

(4) Multiple wind-solar hybrid power generation systems in clusters naturally become a scenic spot and a green power station without environmental pollution.
