Product Details:
|
| Rated Power: | 600W-6KW | Color: | White/Red/Blue/Green/Customized |
|---|---|---|---|

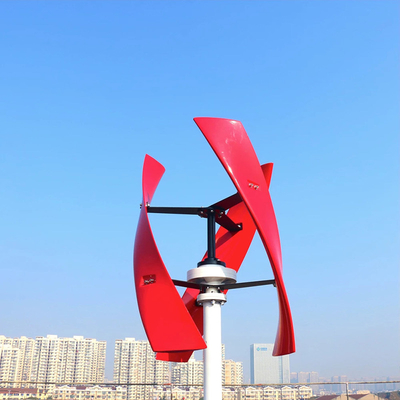

| Blade Material: | Glass Fibre | Name: | 2000W X Type Vertical Axis Wind Turbine Generator |
| Voltage: | 24V/48V | Phase: | 3 |
| High Light: | Permanent Magnet Vertical Axis Wind Turbine,vertical helix wind turbine,2kw vertical axis wind turbine |
||
Vertical axis wind turbine is a kind of wind turbine. Its main rotor shaft is set vertically, and the main components are located at the bottom of the turbine. This arrangement allows the generator and gearbox to be located close to the ground for easy service and maintenance. Vawts do not need to point to the wind, which eliminates the need for wind sensing and orientation mechanisms. The main disadvantages of the early design include the significant torque changes during each rotation and the huge bending moment on the blade.
The torque problem was solved by later design with providing helical torsion in the blades. VAWT tilts sideways and its axis is perpendicular to the air flow line, with similar functions. A more general term that includes this option is "horizontal axis wind turbine".
| Model | SH-X600 | SH-X800 | SH-X1000 | SH-X1500 |
| Rated Power | 600W | 800W | 1000W | 1500W |
| Maximum Power | 650W | 850W | 1150W | 1650W |
| Rated Voltage | 12V/24V | 12V/24V/48V | 24V/48V/96V | 48V/96V/120V |
| Start-up Wind Speed | 2.0m/s | 2.0m/s | 2.0m/s | 2.0m/s |
| Rated Wind Speed | 10m/s | 10m/s | 10m/s | 12m/s |
| Survival Wind Speed | 40m/s | 40m/s | 40m/s | 40m/s |
| Number of Blades | 3 | 3 | 3 | 3 |
| Blade Height | 0.8m | 1.4m | 1.8m | 1.8m |
| Blade Material | Glass Fibre | |||
| Type of Generator | Three-phase AC Permanent Magnet Generator | |||
| Magnetic Steel Material | NdFeB | |||
| Control System | Electromagnet | |||
| Working Temperature | -40℃-80℃ | |||
| Design Life | 20 Years | |||
| Model | SH-X2000 | SH-X3000 | SH-X5000 | SH-X10000 |
| Rated Power | 2000W | 3000W | 5000W | 10KW |
| Maximum Power | 2200W | 3200W | 5500W | 11KW |
| Rated Voltage | 48V/96V/120V/220V | 96V/120V/220V | 96V/120V/220V/380V |
96V/120V/220V/380V |
| Start-up Wind Speed | 2.0m/s | 2.0m/s | 2.0m/s | 2.0m/s |
| Rated Wind Speed | 12m/s | 12m/s | 12m/s | 13m/s |
| Survival Wind Speed | 40m/s | 40m/s | 40m/s | 40m/s |
| Number of Blades | 3 | 3 | 3 | 3 |
| Blade Height | 2.1m | 2.1m | 2.8m | 3.6m |
| Blade Material | Glass Fiber | |||
| Type of Generator | Three-phase AC Permanent Magnet Generator | |||
| Magnetic Steel Material | NdFeB | |||
| Control System | Electromagnet | |||
| Working Temperature | -40℃-80℃ | |||
| Design Life | 20 Years | |||
Product Feature
1. Low start-up wind speed and operating vibration
2. Adopting Flange connection, convenient installation and maintenance
3. Low Noise Level
4. Can be installed on roof top
5. High Efficiency
6. Workable to do hybrid with solar panel.
FAQ
1.Q:Does our wind is enough for a wind turbine?
-- A:Please contact with our salesman with the following points:
2.Q:Can i buy full wind and solar system from you?
-- A:Of course.Jiangsu Shenghuang New Energy Technology Co.,Ltd,can supply one-stop energy solution.We have our own technician team to supply technical support.You just need to ask a technican to install it for you.
3.Q:The delivery date for each type?
--A:Normally for wind turbine below 1kw,they are under producing all the time,and can be shipped any time.For other watts,it is around 7-14 days,and it can be negotiated according to the quantity.
4.Q:If we could be your agent or distributor?
-- A:Our company welcome more partners to joint us,but you need to double to check with us,because some area have agents alreay.Thanks for your understanding
