Product Details:
|
| Rated Power: | 600W-6KW | Customization: | Logo |
|---|---|---|---|
| Blade Material: | Glass Fibre | Name: | 3000W X Type Vertical Axis Wind Turbine Generator |
| Voltage: | 48V/96V/220V | Generator Type: | Permanent Magnet Generator |
| High Light: | vertical wind turbine 3kw,wind turbine vertical design,Vertical Wind Generator For Home |
||

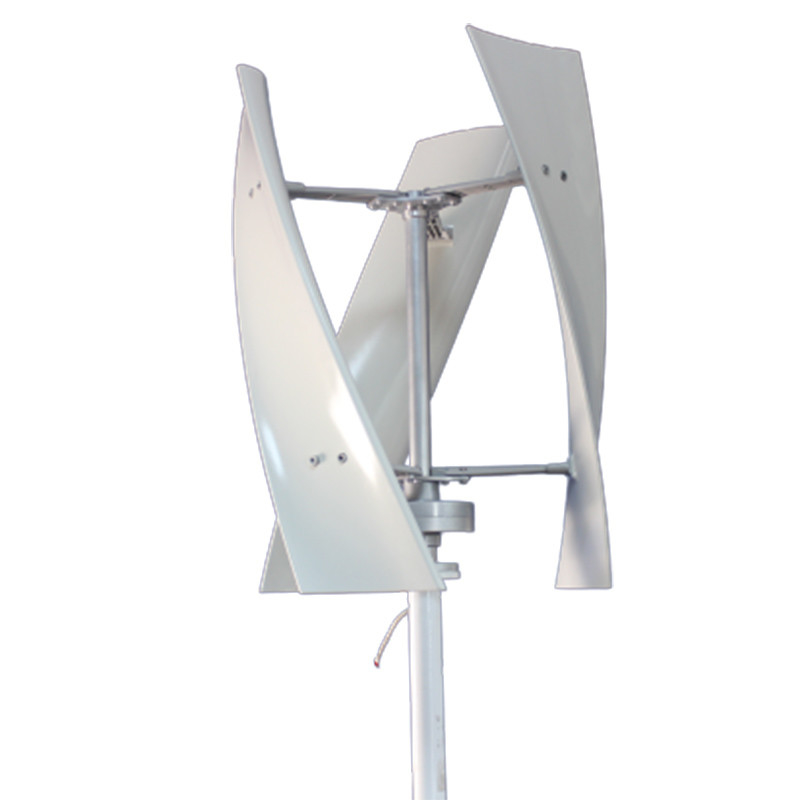

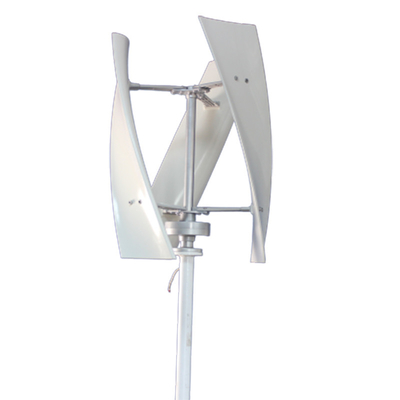

Glass Fibre Vertical Axis Turbine 3KW 48V-220V, Vertical Wind Turbine With Flange Connection For Home Use
In the wind turbine business, there are basically two types of turbines to choose from, vertical axis wind turbines and horizontal axis wind turbines. They all have their pros and cons, and the purpose of this article is to help you choose the right system for your application.
Horizontal axis wind turbines dominate the wind power industry. The horizontal axis means that the rotational axis of the wind turbine is horizontal or parallel to the ground. In high wind applications, transverse axis wind turbines are pretty much all you can see. However, vertical axis turbines have their place in small wind power and residential wind power applications. The advantage of horizontal wind is that it is able to generate more power from a given wind. So if you want to generate as much wind as possible at any one time, the horizontal axis might be your choice. However, the horizontal axis has the disadvantage that it is usually heavier and does not produce good results in turbulent winds.
| Model | SH-X2000 | SH-X3000 | SH-X5000 | SH-X10000 |
| Rated Power | 2000W | 3000W | 5000W | 10KW |
| Maximum Power | 2200W | 3200W | 5500W | 11KW |
| Rated Voltage | 48V/96V/120V/220V | 96V/120V/220V | 96V/120V/220V/380V |
96V/120V/220V/380V |
| Start-up Wind Speed | 2.0m/s | 2.0m/s | 2.0m/s | 2.0m/s |
| Rated Wind Speed | 12m/s | 12m/s | 12m/s | 13m/s |
| Survival Wind Speed | 40m/s | 40m/s | 40m/s | 40m/s |
| Number of Blades | 3 | 3 | 3 | 3 |
| Blade Height | 2.1m | 2.1m | 2.8m | 3.6m |
| Blade Material | Glass Fiber | |||
| Type of Generator | Three-phase AC Permanent Magnet Generator | |||
| Magnetic Steel Material | NdFeB | |||
| Control System | Electromagnet | |||
| Working Temperature | -40℃-80℃ | |||
| Design Life | 20 Years | |||
| Model | SH-X600 | SH-X800 | SH-X1000 | SH-X1500 |
| Rated Power | 600W | 800W | 1000W | 1500W |
| Maximum Power | 650W | 850W | 1150W | 1650W |
| Rated Voltage | 12V/24V | 12V/24V/48V | 24V/48V/96V | 48V/96V/120V |
| Start-up Wind Speed | 2.0m/s | 2.0m/s | 2.0m/s | 2.0m/s |
| Rated Wind Speed | 10m/s | 10m/s | 10m/s | 12m/s |
| Survival Wind Speed | 40m/s | 40m/s | 40m/s | 40m/s |
| Number of Blades | 3 | 3 | 3 | 3 |
| Blade Height | 0.8m | 1.4m | 1.8m | 1.8m |
| Blade Material | Glass Fibre | |||
| Type of Generator | Three-phase AC Permanent Magnet Generator | |||
| Magnetic Steel Material | NdFeB | |||
| Control System | Electromagnet | |||
| Working Temperature | -40℃-80℃ | |||
| Design Life | 20 Years | |||
Some features of VAWT make people choose it over HAWT for residential and commercial use. Let's see what benefits VAWT can bring to your home or office.
1. You don't need to set the turbine too high off the ground. Even if you don't have the proper roof placement, you can easily build the turbine close to the ground. Just make sure the area is clear of any obstructions.
2. The maintenance cost of such turbines is much lower than that of horizontal turbines. Due to the close proximity of the turbine to the ground, necessary maintenance is easy and safe.
3. If you're an animal lover, you'll love the fact that vertical axis wind turbines are bird friendly and won't harm wildlife.
4. These turbines don't make as much noise as the HAWT. Operating noise is much lower than conventional turbines.
5. You don't need to point the turbine towards the wind. They work well even when exposed to different wind directions.
6. No additional mechanism is required to operate.
7. You can set up multiple VAWTs close to each other. It is not necessary to have large fields and farms.
8. Suitable for areas where towering structures are not allowed.
9. You can easily transport turbines from one place to another.
10.Vertical axis wind turbines are very economical and suitable for small residential energy production. Great for urban areas.
Compared to horizontal turbines, their cost is much lower.
Many of these turbines are resistant to various weather elements. You can easily choose a unit that best suits your local environment.
Product Feature
1. Low start-up wind speed and operating vibration
2. Adopting Flange connection, convenient installation and maintenance
3. Low Noise Level
4. Can be installed on roof top
5. High Efficiency
6. Workable to do hybrid with solar panel.
FAQ
1.Q:Does the system install easy?
--A:Very easy.Every customer can do it by themselves.We will supply the components for installation and detailed manual.If you still have any confusion,our technician can support you by video to make sure there is no problem.
2. Q:Distance between wind turbine,controller and battery?
--A:Normally,it will be better within 10 meters from wind turbine to controller,and controller to batteries.The distance between batteries and inverter is within 20-50 meters.
3.Q:For horizontal wind turbines vs vertical wind turbines,which kind of efficiency is better?
--A:For same watts and same wind speed,the output of horizontal wind turbines is more efficient than that of vertical wind turbines.But if the wind speed is very slowly,we suggest you to use our vertical SS type.If the wind speed is over 8 m/s,our wind turbine are also with around 80-90% efficiency.The popular points is there is no noise.
