Product Details:
|
| Product Name: | Lithium Ion Phosphate Battery | Rated Voltage: | 12V/24V/48V/96V/220V |
|---|---|---|---|
| Rated AH: | 50AH/100AH/150AH/200AH | Warranty: | 5 Year |
| Application: | Energy Storage | Cell Type: | LiFePO4 Rechargeable Battery Cell |
| High Light: | 24 Volt Lithium Storage Battery,Lithium Ion Phosphate Battery Parallel Connection,lithium battery energy storage Wind Turbine |
||
Since their introduction in 1991, lithium-ion batteries remain popular among small and large companies due to their long life and light weight design. Today, we use it as the primary power source for smartphones, laptops, tablets, military drones, and even electric vehicles. However, if lithium batteries are not stored properly, they can be very dangerous. In this article, we will provide some advice on how to store lithium batteries.
Lithium battery storage buildings are 100% customizable and can be equipped with charging stations for safe convenience.

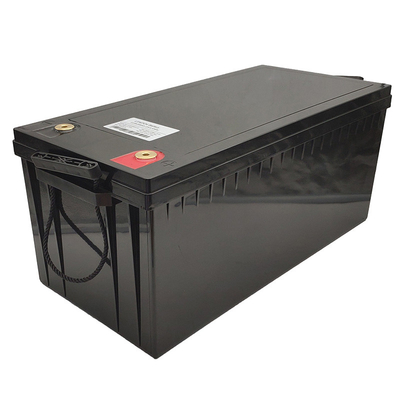

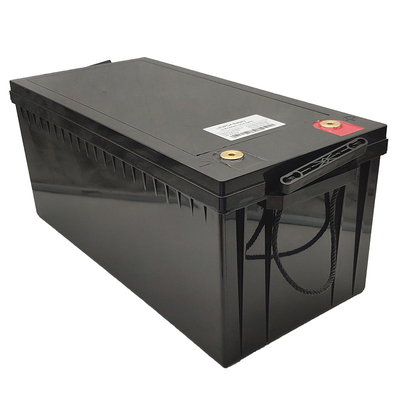

| Powerwall LiFePO4 Battery(48V 200Ah) | ||
| Technical Parameter | ||
| NO | Item | Parameters |
| 1.Performance | Type | LiFePO4 battery(CELL:3.2V100Ah) |
| Nominal Voltage | 51.2V | |
| Rated Capacity | 200Ah(0.2℃/25℃)(Min:198Ah) | |
| Operating Voltage Range | 42V-57.0V(Typical 51.2V) | |
| Charging Voltage | 57.0V | |
| Discharge Cut-off Voltage | 42V | |
| Charging Current(Max.) | 60A | |
| Discharge Current(Max.) | 100A | |
| Width | 435mm | |
| Height | 875mm | |
| Depth | 190mm | |
| Weight | 102Kg | |
| 2.Function | Installation Method | |
| Communication | RS485 | |
| Terminal Stud | M8 Bolt | |
| Alarm&Protection | Over Voltage,under Voltage,short circuit,over current,over temperature,low temperature protection etc. | |
| 3.Working Condition | Cooling Mode | Automatic Cold and hot |
| Altitude | ≤4000m | |
| Humidity | 15%-85% | |
| Operating Temperature |
Charge 0℃-45℃ Discharge -10℃-60℃ |
|
| Recommended Charge Temperature | 15℃-40℃ | |
| Recommended Discharge Temperature | 15℃-40℃ | |
| Recommended Storage Temperature | 0℃-35℃ | |
The battery storage system is charged by clean electricity generated by solar or wind turbine.
STEP 2: DISCHARGE
Product Feature
1.Lithium Ion Battery For Energy Storage
2.Rechargable
3.Over-charge,over-discharge and overload protections for batteries
4.Compatible with energy storage system
5.CE Certification
6.WIFI or Bluetooth communication is optional
Battery energy storage systems are rechargeable battery systems that store energy from solar arrays or wind turbine or the electric grid and provide that energy to a home or business. Because they contain advanced technology that regular batteries do not, they can easily perform certain tasks that used to be difficult or impossible.
The idea of combining solar panels and batteries is not new. Early solar pioneers often attached a series of oceanic deep cycle batteries to their solar arrays. Before net metering became commonplace, this was the only way to use stored solar energy at night. Modern battery energy storage systems are conceptually similar but more complex and powerful. If those old battery arrays were like flip phones, modern battery energy storage systems are like the latest smartphones—they have the same main functions, but everything else is worlds apart.
Modern battery energy storage systems often include built-in inverters and computer control systems. This means they are all-in-one turnkey systems that are simple to install, essentially maintenance-free, and require no effort or expertise from the owner. They are also weatherproof and safe for people and pets.
FAQ
1. Q:Can I buy full wind and solar system from you?
A: Sure, Smaraad is a one stop energy solution provider, we have qualified technician team to design for your system, including wind turbine,solar panel system and storage system, we will provide clear installation instruction and you only need to ask a technician to install it for you. And most of parts, we have warehouse in Poand, Russian, Spain and USA.
2. Q: Do your products have CE certification
A: Sure, our products have sold to more than 40 countries and our products have been approved by local rules and test very good function.
3. Q: The delivery date for each type?
A:Normally for wind turbine below 1kw, we have stock in China or in Our warehouse in EU, Russian, so it could delivery within 1-3days after payment received
4. Q: If we could be your agent or distributor?
A: Pls talk with our sales for this, our company are warmly welcome more partner to join us, but you have to double check for some area we have agents already.
