Product Details:
|
| Product Name: | Lithium Ion Phosphate Battery | Rated Voltage: | 12V/24V/48V/96V/220V |
|---|---|---|---|
| Rated AH: | 50AH/150AH/200AH | Warranty: | 5 Year |
| Application: | Energy Storage | Cell Type: | LiFePO4 Rechargeable Battery Cell |
| High Light: | Lithium Battery Energy Storage System,96V lithium energy storage,48V lithium ion energy storage |
||

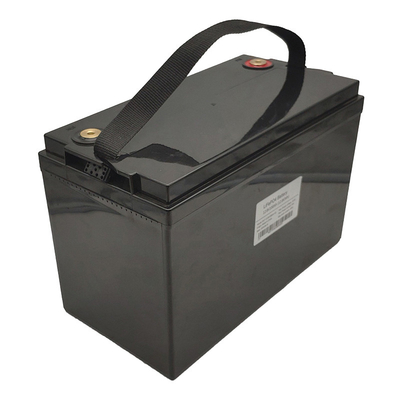

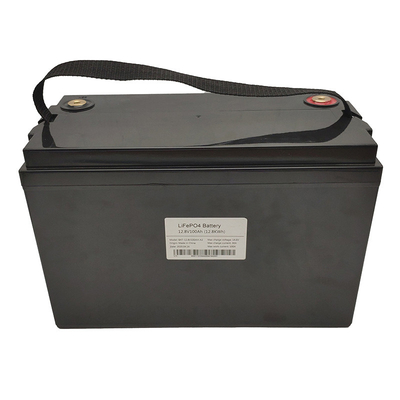

Alternative Energy 48V 96V 200AH Lithium Battery Energy Storage Systems Logo Customization For Clean Electricity
Temperature is a key factor in ensuring safe battery storage, which is why we offer climate control options for your storage building, including accessible controls and thermostats, to keep your operations smooth. Fire suppression systems are essential equipment for storing hazardous materials, so we offer a variety of fire suppression options, including dry chemical storage fire suppression, sprinklers, and fire extinguishers for safety. Our buildings also feature mechanical ventilation, fiberglass grating floors and a variety of entry and exit styles.
| Powerwall LiFePO4 Battery(48V 200Ah) | ||
| Technical Parameter | ||
| NO | Item | Parameters |
| 1.Performance | Type | LiFePO4 battery(CELL:3.2V100Ah) |
| Nominal Voltage | 51.2V | |
| Rated Capacity | 200Ah(0.2℃/25℃)(Min:198Ah) | |
| Operating Voltage Range | 42V-57.0V(Typical 51.2V) | |
| Charging Voltage | 57.0V | |
| Discharge Cut-off Voltage | 42V | |
| Charging Current(Max.) | 60A | |
| Discharge Current(Max.) | 100A | |
| Width | 435mm | |
| Height | 875mm | |
| Depth | 190mm | |
| Weight | 102Kg | |
| 2.Function | Installation Method | |
| Communication | RS485 | |
| Terminal Stud | M8 Bolt | |
| Alarm&Protection | Over Voltage,under Voltage,short circuit,over current,over temperature,low temperature protection etc. | |
| 3.Working Condition | Cooling Mode | Automatic Cold and hot |
| Altitude | ≤4000m | |
| Humidity | 15%-85% | |
| Operating Temperature | Charge 0℃-45℃ Discharge -10℃-60℃ | |
| Recommended Charge Temperature | 15℃-40℃ | |
| Recommended Discharge Temperature | 15℃-40℃ | |
| Recommended Storage Temperature | 0℃-35℃ | |
The battery storage system is charged by clean electricity generated by solar or wind turbine.
STEP 2: DISCHARGE
Product Feature
1.Lithium Ion Battery For Energy Storage
2.Rechargable
3.Over-charge,over-discharge and overload protections for batteries
4.Compatible with energy storage system
5.CE Certification
6.WIFI or Bluetooth communication is optional
Battery energy storage systems are rechargeable battery systems that store energy from solar arrays or wind turbine or the electric grid and provide that energy to a home or business. Because they contain advanced technology that regular batteries do not, they can easily perform certain tasks that used to be difficult or impossible.
The idea of combining solar panels and batteries is not new. Early solar pioneers often attached a series of oceanic deep cycle batteries to their solar arrays. Before net metering became commonplace, this was the only way to use stored solar energy at night. Modern battery energy storage systems are conceptually similar but more complex and powerful. If those old battery arrays were like flip phones, modern battery energy storage systems are like the latest smartphones—they have the same main functions, but everything else is worlds apart.
Modern battery energy storage systems often include built-in inverters and computer control systems. This means they are all-in-one turnkey systems that are simple to install, essentially maintenance-free, and require no effort or expertise from the owner. They are also weatherproof and safe for people and pets.
1. Monitor battery state of charge while charging
2. Make sure the temperature control is set to the specified temperature
3. Observe the runtime of fully charged Li-ion batteries stored on the shelf
4. Make sure the battery is self-discharging
5. Before storing the battery, check the battery for abnormal state of charge
6. Avoid Excessive Vibration of Li-Ion Batteries
7. Do not expose the battery to high or low temperatures
8. Always handle batteries with care
9. After the building reaches the required temperature level, the battery is placed in the warehouse
10. Do not use damaged batteries
11. Do not rub eyes if in contact with liquid. Rinse eyes immediately at eyewash station
Wash hands after handling batteries
