Product Details:
|
| Product Name: | Lithium Ion Phosphate Battery | Rated Voltage: | 48V 96V 220V 380V 600V |
|---|---|---|---|
| Rated AH: | 100AH 200AH 300AH | Warranty: | 5 Year |
| Application: | UPS Energy Storage Communication Base | Option: | Bluetooth WIFI Remote Monitoring |
| High Light: | 100AH Lithium Ion Battery Battery,50AH Lithium Ion Battery Battery,24V Lithium Storage Battery |
||

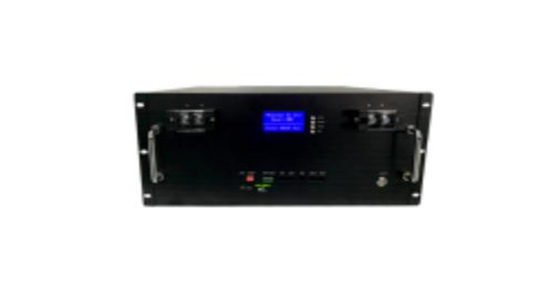

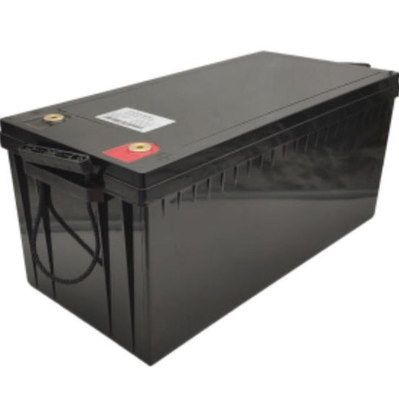

Customized 12V 24V 50AH 100AH Lithium Ion Battery, Battery Storage System With Optional Bluetooth For Green Clean Energy
Company Profile
Jiangsu Shenghuang New Energy Technology Co..Ltd. is located in Wuxi Liangxi district Jinshan North science and Technology Industrial Park, is a factory commitment to wind generators, solar monitoring system, wind and solar complementary monitoring system, photovoltaic system, wind and solar complementary controller,inverter,Gel battery, Lithium Battery Development and integrated application of green energy saving and environmental protection technology enterprises.
processing and use
• Handle batteries and/or battery-operated equipment with care to avoid damage to the battery case or connections.
• Protect the battery from contact with conductive materials, water, seawater, strong oxidants and strong acids.
• Do not place the battery in direct sunlight, hot surfaces or high temperature locations.
• Inspect the battery for signs of damage before use. Do not use and promptly dispose of damaged or swollen batteries.
• Keep all flammable materials away from the operating area.
STEP 1: CHARGE
The battery storage system is charged by clean electricity generated by solar or wind turbine.
STEP 2: DISCHARGE
Energy is discharged from the battery storage system during times of high usage, reducing or eliminating demand charges.
Product Feature
1.Lithium Ion Battery For Energy Storage
2.Rechargable
3.Over-charge,over-discharge and overload protections for batteries
4.Compatible with energy storage system
5.CE Certification
6.WIFI or Bluetooth communication is optional
Battery energy storage systems are rechargeable battery systems that store energy from solar arrays or wind turbine or the electric grid and provide that energy to a home or business. Because they contain advanced technology that regular batteries do not, they can easily perform certain tasks that used to be difficult or impossible.
The idea of combining solar panels and batteries is not new. Early solar pioneers often attached a series of oceanic deep cycle batteries to their solar arrays. Before net metering became commonplace, this was the only way to use stored solar energy at night. Modern battery energy storage systems are conceptually similar but more complex and powerful. If those old battery arrays were like flip phones, modern battery energy storage systems are like the latest smartphones—they have the same main functions, but everything else is worlds apart.
Modern battery energy storage systems often include built-in inverters and computer control systems. This means they are all-in-one turnkey systems that are simple to install, essentially maintenance-free, and require no effort or expertise from the owner. They are also weatherproof and safe for people and pets.
|
Powerwall LiFePO4 Battery(48V 200Ah) |
||
| Technical Parameter | ||
| NO | Item | Parameters |
| 1.Performance | Type | LiFePO4 battery(CELL:3.2V100Ah) |
| Nominal Voltage | 51.2V | |
| Rated Capacity | 200Ah(0.2℃/25℃)(Min:198Ah) | |
| Operating Voltage Range | 42V-57.0V(Typical 51.2V) | |
| Charging Voltage | 57.0V | |
| Discharge Cut-off Voltage | 42V | |
| Charging Current(Max.) | 60A | |
| Discharge Current(Max.) | 100A | |
| Width | 435mm | |
| Height | 875mm | |
| Depth | 190mm | |
| Weight | 102Kg | |
| 2.Function | Installation Method | |
| Communication | RS485 | |
| Terminal Stud | M8 Bolt | |
| Alarm Protection | Over Voltage,under Voltage,short circuit,over current,over temperature,low temperature protection etc. | |
| 3.Working Condition | Cooling Mode | Automatic Cold and hot |
| Altitude | ≤4000m | |
| Humidity | 15%-85% | |
| Operating Temperature |
Charge 0℃-45℃ Discharge -10℃-60℃ |
|
| Recommended Charge Temperature | 15℃-40℃ | |
| Recommended Discharge Temperature | 15℃-40℃ | |
| Recommended Storage Temperature | 0℃-35℃ | |
Q1 What are the three types of energy storage?
A1 Storage options include battery, thermal or mechanical systems. All of these techniques can be used in conjunction with software that controls the charging and discharging of energy.
Q2 What is an energy storage system?
A2 An energy storage system is a set of methods and technologies for storing energy. The stored energy can be utilized later to perform useful operations. For example, many renewable energy sources (such as wind, solar or solar, tidal) are intermittent
Q3 What is the voltage of battery?
A3 The operating voltage (V) range of a single cell Li-Ion battery (also known as a battery) is 3.6–4.2V. Lithium ions move from the anode to the cathode during discharge. ion inversion Orientation during charging. The lithiated metal oxide or phosphate coating on the cathode defines the
The "chemistry" of the battery.
Q4 Why do we need energy storage?
A4 At its simplest, energy storage saves electricity for later use when and where it is needed most. This creates efficiencies and capacity for the grid, including the ability to reduce greenhouse gas emissions.
