Product Details:
|
| Product Name: | 200W Q Wind Turbine | Voltage: | 12V/24V/48V/96V |
|---|---|---|---|
| Rated Power: | 200W | Feature: | Flange Connection |
| Noise: | ≤50db | ||
| High Light: | Q Wind Turbine 12V,clean energy turbine 24V,24Volt renewable energy turbines |
||
Company Profile
Jiangsu Shenghuang New Energy Technology Co..Ltd. is located in Wuxi Liangxi district Jinshan North science and Technology Industrial Park, is a factory commitment to wind generators, solar monitoring system, wind and solar complementary monitoring system, photovoltaic system, wind and solar complementary controller,inverter,Gel battery, Lithium Battery Development and integrated application of green energy saving and environmental protection technology enterprises.

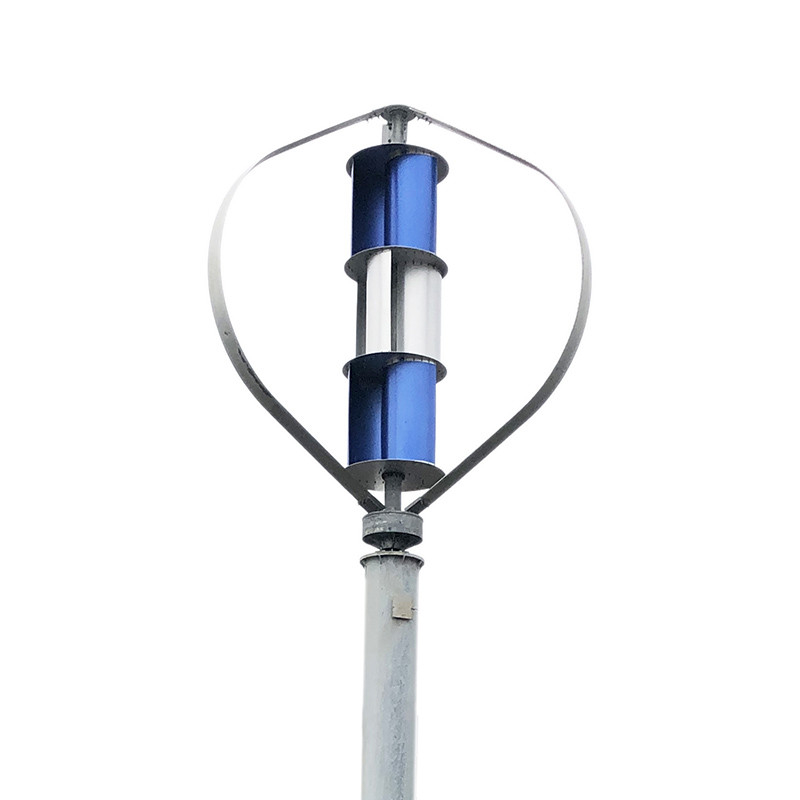

A vertical axis wind turbine (or VAWT) has a main rotor shaft arranged vertically. An advantage of this arrangement is that the turbine does not need to be pointed into the wind to be effective, which is an advantage in locations where the wind direction is highly variable. This is also an advantage when the turbine is integrated into a building, as it is inherently less maneuverable. Additionally, the generator and gearbox can be placed close to the ground, using direct drive from the rotor assembly to the ground gearbox, improving maintenance accessibility.
Vertical axis wind turbines have low start-up speeds, high wind energy utilization, aesthetics and low vibration.This model features an innovative simple design, easy installation and very low maintenance.The blades are strong, with optimized aerodynamic profile and structure, and the blades have high wind energy utilization, which helps to obtain high annual power generation in good wind conditions.
This model of wind turbine has a patented permanent magnet rotor alternator with a special stator design that effectively reduces resistive torque. It allows the speed of the wind turbine to be fairly matched to the generator and increases its reliability.
Feature
1.Low Start-up Wind Speed
2.Three Blades
3.One year Warranty
4.Flange Connection with easy installation
5.Certified with:CE, RoHS and ISO 9001 2000
6.High-efficiency coreless disc generator
Application
1.Marine,&Boat
2.Streetlights
3.Home, Openning Plaza lighting.
4.Wind&Solar Hybrid System
5.Monitoring device
6.Factory
| Model | SH-Q100 | SH-Q200 | SH-Q300 | SH-Q400 | SH-Q500 |
| Rated Power | 100W | 200W | 300W | 400W | 500W |
| Maximum Power | 120W | 220W | 320W | 420W | 520W |
| Nominal Voltage | 12V/24V | 12V/24V | 12V/24V | 12V/24V | 12V/24V |
| Weight | 12kg | 12.5kg | 13kg | 18kg | 19kg |
| Package Size(mm) | 950*350*360 | 950*350*360 | 950*350*360 | 1060*415*425 | 1060*415*425 |
| Package Weight | 15kg | 15.5kg | 16kg | 17kg | 19kg |
| Start-up Wind Speed | 2.5m/s | ||||
| Rated Wind Speed | 12m/s | ||||
| Survival Wind Speed | 45m/s | ||||
| Blade Material | Aluminum Alloy | ||||
| Generator Housing Material | Aluminum Alloy | ||||
| Packing | Carton | ||||
| Generator Type | Three Phase AC Permanent Magnet Generator | ||||
| Alnico magent | NdFeB | ||||
| Working Temperature | -40℃-80℃ | ||||
| Model | SQ-1000 | SQ-2000 | SQ-3000 | SQ-5000 | SQ-10000 |
| Rated Power | 1000W | 2000W | 3000W | 5000W | 10000W |
| Maximum Power | 1050W | 2100W | 3100W | 5500W | 11000W |
| Nominal Voltage | 48V-96V | 48-96V | 96V-380V | 120V-380V | 380V |
| Rotor Diameter | 1.5m | 1.8m | 2.5m | 3m | 4.5m |
| Weight | 110kg | 170kg | 300kg | 500kg | 1000kg |
| Start-up Wind Speed | 2.5m/s | ||||
| Rated Wind Speed | 12m/s | ||||
| Blade Material | Aluminum Alloy | ||||
| Generator Housing Material | Aluminum Alloy | ||||
| Packing | Carton/Wooden Case | ||||
| Generator Type | Three Phase AC Permanent Magnet Generator | ||||
| Alnico Magnet | NdFeB | ||||
| Working Temerature | -40℃-80℃ | ||||
