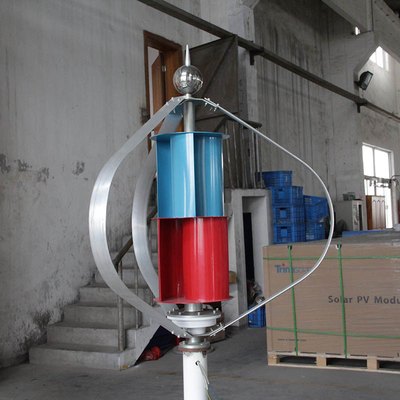

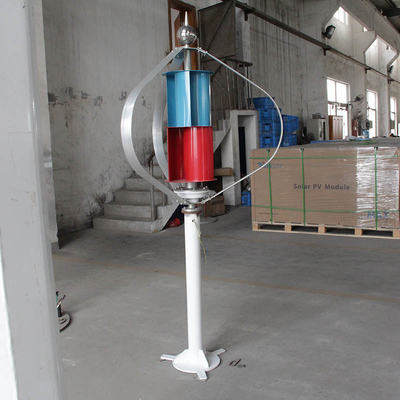

Product Details:
|
| Product Name: | 400W Q Wind Turbine | Voltage: | 12V/24V |
|---|---|---|---|
| Rated Power: | 200W | Blade Material: | Aluminum Alloy |
| Protection: | IP54 | ||
| High Light: | Q Wind Turbine IP54,200W Vertical Wind Turbine Generator,Vertical Wind Turbine Generator Curved Blade |
||
Company Profile
Jiangsu Shenghuang New Energy Technology Co..Ltd. is located in Wuxi Liangxi district Jinshan North science and Technology Industrial Park, is a factory commitment to wind generators, solar monitoring system, wind and solar complementary monitoring system, photovoltaic system, wind and solar complementary controller,inverter,Gel battery, Lithium Battery Development and integrated application of green energy saving and environmental protection technology enterprises.
A vertical axis wind turbine (or VAWT) has a main rotor shaft arranged vertically. An advantage of this arrangement is that the turbine does not need to be pointed into the wind to be effective, which is an advantage in locations where the wind direction is highly variable. This is also an advantage when the turbine is integrated into a building, as it is inherently less maneuverable. Additionally, the generator and gearbox can be placed close to the ground, using direct drive from the rotor assembly to the ground gearbox, improving maintenance accessibility.
Since voltage is related to rotational speed, at low wind speeds the wind turbine will provide a smaller output, but the voltage may be lower than your battery charging voltage. This means that very little charging current is available until the wind speed increases to provide enough speed to reach the battery voltage.
We offer a range of high-quality hybrid charge controllers to suit your specific type of battery and usage pattern, with a digital display showing all instant readouts, including battery charge voltage and current produced. (see below for details)
Fully assembled and factory tested, then carefully packaged in plywood crates, protected with expandable bubble wrap.Clear and understandable user manual, detailed installation instructions and safety procedures.
Feature
1.Low Start-up Wind Speed
2.Three Blades
3.One year Warranty
4.Flange Connection with easy installation
5.Certified with:CE, RoHS and ISO 9001 2000
6.High-efficiency coreless disc generator
Application
1.Marine,&Boat
2.Streetlights
3.Home, Openning Plaza lighting.
4.Wind&Solar Hybrid System
5.Monitoring device
6.Factory
| Model | SH-Q100 | SH-Q200 | SH-Q300 | SH-Q400 | SH-Q500 |
| Rated Power | 100W | 200W | 300W | 400W | 500W |
| Maximum Power | 120W | 220W | 320W | 420W | 520W |
| Nominal Voltage | 12V/24V | 12V/24V | 12V/24V | 12V/24V | 12V/24V |
| Weight | 12kg | 12.5kg | 13kg | 18kg | 19kg |
| Package Size(mm) | 950*350*360 | 950*350*360 | 950*350*360 | 1060*415*425 | 1060*415*425 |
| Package Weight | 15kg | 15.5kg | 16kg | 17kg | 19kg |
| Start-up Wind Speed | 2.5m/s | ||||
| Rated Wind Speed | 12m/s | ||||
| Survival Wind Speed | 45m/s | ||||
| Blade Material | Aluminum Alloy | ||||
| Generator Housing Material | Aluminum Alloy | ||||
| Packing | Carton | ||||
| Generator Type | Three Phase AC Permanent Magnet Generator | ||||
| Alnico magent | NdFeB | ||||
| Working Temperature | -40℃-80℃ | ||||
| Model | SQ-1000 | SQ-2000 | SQ-3000 | SQ-5000 | SQ-10000 |
| Rated Power | 1000W | 2000W | 3000W | 5000W | 10000W |
| Maximum Power | 1050W | 2100W | 3100W | 5500W | 11000W |
| Nominal Voltage | 48V-96V | 48-96V | 96V-380V | 120V-380V | 380V |
| Rotor Diameter | 1.5m | 1.8m | 2.5m | 3m | 4.5m |
| Weight | 110kg | 170kg | 300kg | 500kg | 1000kg |
| Start-up Wind Speed | 2.5m/s | ||||
| Rated Wind Speed | 12m/s | ||||
| Blade Material | Aluminum Alloy | ||||
| Generator Housing Material | Aluminum Alloy | ||||
| Packing | Carton/Wooden Case | ||||
| Generator Type | Three Phase AC Permanent Magnet Generator | ||||
| Alnico Magnet | NdFeB | ||||
| Working Temerature | -40℃-80℃ | ||||
