Product Details:
|

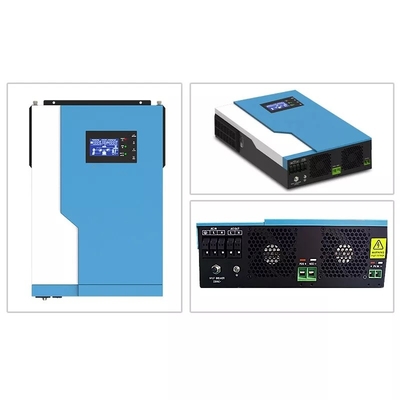

Product Name: | 5.5KW Hybrid Solar Inverter | Rated Power: | 5.5KW |
---|---|---|---|
Rated Voltage: | 24V/48V | Communication: | USB/RS232/GPRS/WIFI |
Wave Form: | PWM | Output Current: | 0-80A |
High Light: | 100 Amp Hybrid Solar Inverter,Hybrid Solar Inverter 5.5KW,48V on off grid hybrid inverter |
Description of Product
1 What is a solar inverter and how does it work?
A solar inverter is a component in a solar panel system that converts the direct current (DC) captured by the solar panels into alternating current (AC). AC current is the standard current required to power your home appliances and connect them to the national grid. It is usually equal to 120 volts or 240 volts, depending on the country. If you don't have a solar inverter in your system, you won't be able to safely power your home with solar power.
2.What does a solar inverter do?
The ability to convert Direct Current to Alternative Current
Maximizing Power Output
Connecting With National Current
Feedbacking information about power production
Ensuring that your Solar Panel is operating safely

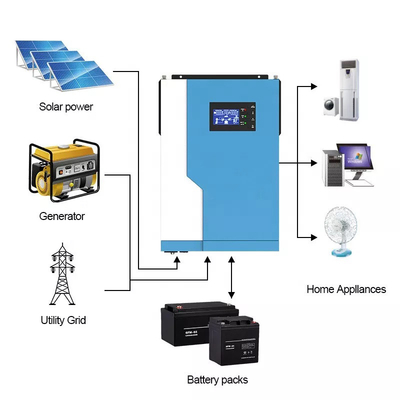

3.What is solar hybrid inverter?
Solar panels generate direct current, we know that inverters must convert the energy to alternating current to power your home appliances. However, solar cells store electricity in the form of direct current. Hybrid solar inverters are capable of converting direct current to alternating current, while also storing any excess direct current in solar cells or selling it to the grid. When you need stored energy, the electricity can be converted to AC power for your home to use.
4.What size of inverter do I need for solar?
Generally speaking,your size of wattage for inverter shall be at least equal to the wattage of your load capacity on user end,say if you have 10kw requirement on user end,then you need 10kw inverter.
5.Can solar inverter run without batteries.
Hybrid Solar Inverter can do,this type of system is attached to solar panels and to the power grid which supplies power from both.
Rated Power | 3500W | 5500W |
Voltage | 230VAC | |
Voltage Range | 170-280VAC | |
90-280VAC | ||
Frequency Range | 50hz/60hz(Auto sensing) | |
AC Voltage Regulation | 230V AC±5% | |
Surge Power | 7000W | 11000W |
Efficiency(peak)PV to inverter | 97% | |
Efficiency(peak)Battery to inverter | 94% | |
Transfer Time | 10ms/20ms | |
Battery Voltage | 24VDC | 48VDC |
Floating Charge Voltage | 27VDC | 54VDC |
Overcharge Protection | 33VDC | 63VDC |
Maximum Charge Current | 80A | 80A |
Maximum PV Array Power | 5000W | 6000W |
MPPT Range@Operating Voltage | 120-450VDC | |
Maximum PV Array Open Circuit Voltage | 500VDC | |
Maximum Charging Current | 100A | 100A |
Maximum Efficiency | 98% | |
Dimension D*W*H(mm) | 100*300*440 | |
Net Weight(kgs) | 11 | 12 |
Communication Interface | USB/RS232/GPRS/WIFI(Optional) | |
Humidity | 5%-95% Relative Humidity(Non-condensing) | |
Operating Temperature | 0℃-55℃ |
