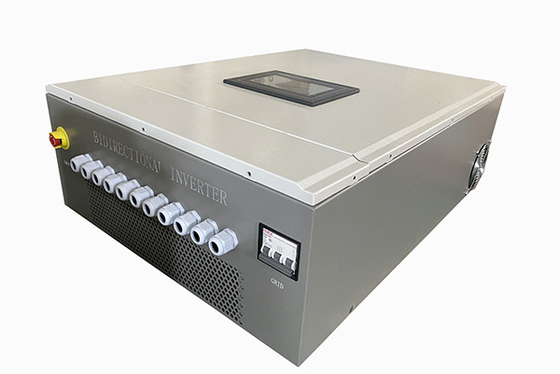

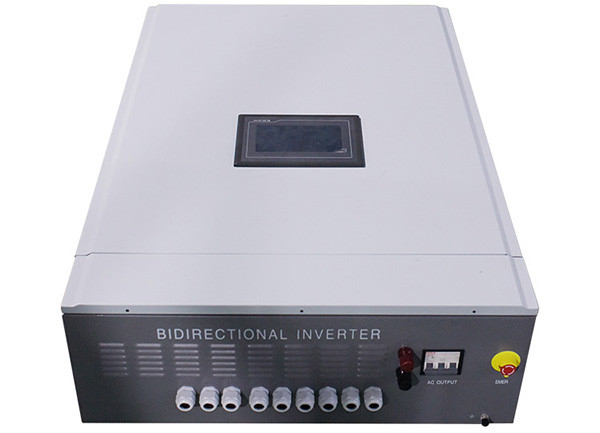

240Volt Hybrid Solar Inverter Hybrid Inverter Off Grid 10KW USB

240Volt Hybrid Solar Inverter Hybrid Inverter Off Grid 10KW USB
240Volt Hybrid Solar Inverter Hybrid Inverter Off Grid 10KW USB 240Volt Hybrid Solar Inverter Hybrid Inverter Off Grid 10KW USB

Large Image :  240Volt Hybrid Solar Inverter Hybrid Inverter Off Grid 10KW USB

Product Details:
Place of Origin: China-Jiangsu Province
Brand Name: Jiangsu Shenghuang
Certification: CE ISO
Model Number: DMPCS-10KW
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: To Be Negotiated
Packaging Details: Carton Packaging
Delivery Time: 15-20 Working Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 800 Sets Per Month

240Volt Hybrid Solar Inverter Hybrid Inverter Off Grid 10KW USB

Product Name: 10KW Hybrid Solar Inverter Rated Power: 10KW
Rated Voltage: 24V/48V Communication: USB/RS232/GPRS/WIFI
Wave Form: MPPT Output Current: 0-80A
High Light:

240Volt Hybrid Solar Inverter


hybrid inverter off grid


inverter off grid 10kw

Modern Design 10KW 240V Hybrid Inverter Power Convsersion Wind And Solar Hybrid System



Off-grid systems are built using AC or DC coupled power supplies. AC-coupled power supplies include common solar inverters, wind turbines, or backup generators (gensets), while DC-coupled power supplies include MPPT solar charge controllers or micro-hydro systems.


Small scale off grid solar systems and DIY systems for caravans, boats, small homes and cabins use MPPT solar charge controllers, also known as solar regulators, connected between the solar panels and the batteries. The job of the charge controller is to make sure the battery is charged properly and, more importantly, not overcharged. Most small 12V/24V solar charge controllers also have load output terminals, usually for simple DC lighting circuits. In small DIY systems, simple "plug-in" inverters are used to provide 240V or 120V AC power. These inverters come in many different sizes, from tiny 150W inverters to 3000W and beyond.


The energy storage converter (PCS) can control the charging and discharging process of the battery, perform AC-DC conversion, and can directly supply power to the AC load when there is no power grid. PCS consists of DC/AC bidirectional converter, control unit, etc. The PCS controller receives the background control commands through communication, and controls the converter to charge or discharge the battery according to the symbol and size of the power command, so as to realize the adjustment of the active power and reactive power of the grid. The PCS controller communicates with the BMS through the CAN interface. Obtaining the status information of the battery pack can realize the protective charging and discharging of the battery and ensure the safe operation of the battery.


  • It is specially designed for smart grid and smart micro-grid, accepting grid dispatching, shaving peaks and filling valleys
  • It can meet the access of different energy storage forms such as lead-acid batteries, lithium batteries, super capacitors, vanadium batteries, etc., and has a wide range of applications
  • Bidirectional inverter, to meet a variety of battery charge and discharge modes optional
  • It has the function of setting the working mode of the time period, and sets a reasonable working mode according to the characteristics of the local power grid



Description of Product


1. What is a solar inverter and how does it work?

A solar inverter is a component in a solar panel system that converts the direct current (DC) captured by the solar panels into alternating current (AC). AC current is the standard current required to power your home appliances and connect them to the national grid. It is usually equal to 120 volts or 240 volts, depending on the country. If you don't have a solar inverter in your system, you won't be able to safely power your home with solar power.


2. What does a solar inverter do?

  • The ability to convert Direct Current to Alternative Current

  • Maximizing Power Output

  • Connecting With National Current

  • Feedbacking information about power production

  • Ensuring that your Solar Panel is operating safely


3. What is solar hybrid inverter?

Solar panels generate direct current, we know that inverters must convert the energy to alternating current to power your home appliances. However, solar cells store electricity in the form of direct current. Hybrid solar inverters are capable of converting direct current to alternating current, while also storing any excess direct current in solar cells or selling it to the grid. When you need stored energy, the electricity can be converted to AC power for your home to use.


4. What size of inverter do I need for solar?

Generally speaking,your size of wattage for inverter shall be at least equal to the wattage of your load capacity on user end,say if you have 10kw requirement on user end,then you need 10kw inverter.


5. Can solar inverter run without batteries.

Hybrid Solar Inverter can do,this type of system is attached to solar panels and to the power grid which supplies power from both.



AC Side Parameters
Operation Mode  Continuous
Rated Output Power 10KW 20KW 30KW
Output Overload Capacity 11KW 22KW 33KW
DC Side Parameters
Maximum DC Power 11KW 22KW 33KW
DC Voltage Range Vdc 200-700vdc
Recommended battery nominal voltage  240V 384V 420V 480V
Rated Charge Current 50A 100A 150A
Max Input Current 55A 110A 165A
Voltage accuracy 1%
Steady Flow Accuracy  1%
On Grid Charging and Discharging Mode
Rated Output Voltage(AC) 220V/380V/440V±1%
Grid Voltage Range ±20%
Independent Inverter Mode
Rated Output Voltage(AC) 220V/380V/440V±1%
Output Voltage Distortion  <3%(resistive load)
Rated Output Frequency 50Hz/60Hz±1%
System Parameters
On/off grid switching time 0ms
Max Conversion Efficiency 97%
Noise <60dB
Protection Degree IP21
Working Temperature -25℃-45℃
Cooling Method Air Cooling
Working Humidity 0-95%
Working altitude ≤6000m
Emergency Stop Yes

Touch Screen

Communication Mode RS485,WIFI,GPRS,Ethernet
Dimensions 690*275*770 690*275*770 690*275*770
Weight 42KG 58KG 65KG
