5000W Horizontal Axial Wind Turbine 1KW 48V 220V White Horizontal Wind Generators For Home Use

5000W Horizontal Axial Wind Turbine 1KW  48V 220V White Horizontal Wind Generators For Home Use
5000W Horizontal Axial Wind Turbine 1KW  48V 220V White Horizontal Wind Generators For Home Use
5000W Horizontal Axial Wind Turbine 1KW  48V 220V White Horizontal Wind Generators For Home Use 5000W Horizontal Axial Wind Turbine 1KW  48V 220V White Horizontal Wind Generators For Home Use 5000W Horizontal Axial Wind Turbine 1KW  48V 220V White Horizontal Wind Generators For Home Use

Large Image :  5000W Horizontal Axial Wind Turbine 1KW 48V 220V White Horizontal Wind Generators For Home Use

Product Details:
Place of Origin: China-Jiangsu Province
Brand Name: Jiangsu Shenghuang
Certification: CE
Model Number: SH-A10KW
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: $2560-$2630/Piece
Packaging Details: Wooden Box
Delivery Time: 10-25 working days
Payment Terms: Negotiated, L/C, D/A, D/P, T/T, Western Union
Supply Ability: 800 sets per month

5000W Horizontal Axial Wind Turbine 1KW 48V 220V White Horizontal Wind Generators For Home Use

Name: 10kw Horizonal Wind Turbine Rated Power: 1-20kw
Application: Home/Yacht/Remote Area/Communication Station/Street Lamp Colors: White/Red/Customized
Design Life: 20 Years Phase: 3 Phase
High Light:

5000W horizontal axial wind turbine


horizontal axial wind turbine 1KW


horizontal wind generators for home use

Glass Fibre Blade Horizontal Wind Turbine Generator 2KW 3KW 48V 96V 220V Multi Colors For Electricity

Wind turbines work on a simple principle: instead of using electricity to make wind—like a fan—wind turbines use wind to make electricity. Wind turns the propeller-like blades of a turbine around a rotor, which spins a generator, which creates electricity.


The terms "wind energy" and "wind power" both describe the process by which the wind is used to generate mechanical power or electricity. This mechanical power can be used for specific tasks (such as grinding grain or pumping water) or a generator can convert this mechanical power into electricity.


Small wind turbines, also known as micro wind turbines, are used for microgeneration of electricity, as opposed to large commercial wind turbines, such as those found in wind farms. Small wind turbines often have passive yaw systems as opposed to active ones. They use a direct drive generator and use a tail fin to point into the wind, whereas larger turbines have geared powertrains that are actively pointed into the wind.


Small wind turbines typically produce between 500 W and 30 kW of power, although the smaller turbines may be as small as a 50 Watt auxiliary power generator for a boat, caravan, or miniature refrigeration unit, and the Canadian Wind Energy Association (CanWEA) defines "small wind" as high as 300 kW. The IEC 61400 Standard defines small wind turbines as wind turbines with a rotor swept area smaller than 200 m2, generating at a voltage below 1000 Va.c. or 1500 Vd.c.



1.Low Start-up Wind Speed
2.Three Blades
3.Flange Connection with easy installation
4.Certified with CE,ROHS and ISO 9001 2000
5.Customized Colors
6.High-efficiency Three Phase PMG Generator






3.Home, Openning Plaza lighting.

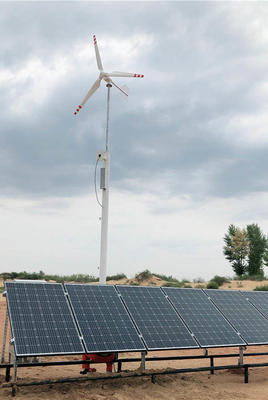

4.Wind&Solar Hybrid System

5.Monitoring device




Product Parameter


Model SH-A1000 SH-A1500 SH-A2000 SH-A2500 SH-A3000 SH-A5000 SH-A10K SH-A15K SH-A20K
Rated Power 1KW 1.5KW 2KW 2.5KW 3KW 5KW 10KW 15KW 20KW
Maximum Power 1.2KW 1.7KW 2.2KW 2.7KW 3.2KW 5.5KW 11KW 17KW 22KW
Nominal Voltage 48V/96V 48V/96V 48V/96V 48V/96V 96V/120V/220V 120V/220V/380V 120V/220V/380V 120V/220V/380V 120V/220V/380V
Rotor Diameter 2.8m 3.2m 3.2m 3.6m 4.8m 5.6m 7m 8m 9.8m
Weight 60kg 70kg 70kg 80kg 160kg 150kg 260kg 320kg 380kg
Package Weight 70kg 80kg 88kg 95kg 176kg 310kg 400kg 390kg 440kg
Package Size(mm) 1660*380*420 1630*420*450 1630*420*450 1830*420*450 2550*480*500
Start-up Wind Speed 3m/s
Rated Wind Speed 11m/s
Survival Wind Speed 50m/s
Blade Quantity 3 piece
Blade Material FRP
Generator Housing Material Carbon Steel
Packing Wooden Box
Generator Type 3 Phase Permanent Magnet Generator
alnico magnet NdFeB
brake mode electromagnetism
The wind adjustment Automatically adjust to windward
Working temperature -40℃-80℃



5000W Horizontal Axial Wind Turbine 1KW  48V 220V White Horizontal Wind Generators For Home Use 0

What is the best material for wind turbine blades?

Most blades are made of glass fiber reinforced polyester or epoxy resin. Carbon fiber or Kevlar is also used as reinforcement. Nowadays, the possible use of wood compounds, such as wood epoxy or wood fiber epoxy, is being studied.



How many blades are best for a wind turbine?
Generally, most horizontal axis wind turbines have three blades. The decision to design a three blade turbine was a compromise. Due to its reduced resistance, the single blade design is the best number to achieve maximum efficiency,hwever,one-blade design makes the whole set of wind turbine generator not stable.


Which generator is used in Wind Turbine Generator?

Generally speaking,the most common type of generator that used is Permanent Magnet Generator,others can be Magnetic Levitation Type.


How big a wind turbine do we need to power a house?

A typical household uses about 10649 kwh, with an average of 877 kwh per month. According to the average wind speed in the region, a wind turbine with a rated power in the range of 5 to 15 kW is required to make a significant contribution to this demand.


Are Wind Turbine Generators AC or DC?

Wind Turbine Generator Produces AC,you need apply inverter to transfer the AC to DC.


How does the wind turbine generator work?

Wind turbines usually operate on a simple principle: instead of using electricity to generate wind (such as fans), wind turbines use wind to generate electricity. The wind rotates the propeller like blades of the turbine in the rotor, thereby turning the generator to generate electricity



Can I put a wind turbine in my back yard?

Most wind turbines are not small enough to be installed in the backyard - because larger size means more energy, and a single blade can be longer than a football field. Wind power is very noisy. Even if the wind farm is miles away, neighbors sometimes complain.


The scope of application continues to be expanded. In addition to the traditional application of small wind turbines for the purpose of powering TV for users in the vast agricultural and remote areas, due to the soaring prices of gasoline, diesel and other fuels, and the lack of smooth supply channels, users in inland area, rivers and lakes, fishing boats, border posts, troops, meteorology, microwave stations, etc who use diesel power generation will gradually switch to wind power generation or wind-solar hybrid power generation. In addition, small wind turbines are also installed in ecological parks, tree-lined paths, villa courtyards and other places as landscapes for people to enjoy leisurely.


Due to the improvement of the living standards of farmers and herdsmen and the continuous increase of electricity consumption, the power of single unit small wind turbines continues to increase,accounting for 80% of the total annual output. As the majority of farmers are eager to use electricity uninterrupted, the promotion and application of "wind-solar hybrid power generation system" has been significantly accelerated, and the development of multiple units has become the development direction for a period of time in the future.


Wind-solar hybrid multi-unit series power generation system is to install multiple low-power wind turbines in the same place, to charge multiple large-capacity battery packs at the same time, and control the output uniformly by a high-power control inverter. The advantage of this configuration is that:


(1) The technology of small wind turbines is mature, the structure is simple, the quality is stable, safe, reliable and economical

(2) Easy to assemble, disassemble, transport, maintain, and operate;

(3) If maintenance or shutdown is required, the rest of the units will generate electricity as usual, which will not affect the normal use of the system;

(4) Multiple wind-solar hybrid power generation systems in clusters naturally become a scenic spot and a green power station without environmental pollution.
