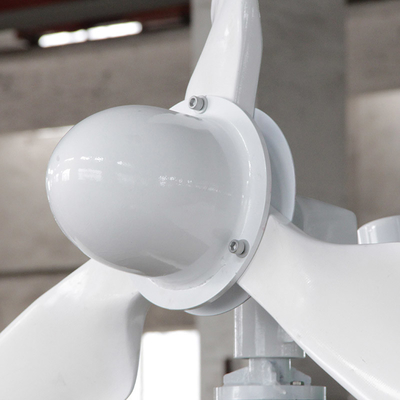

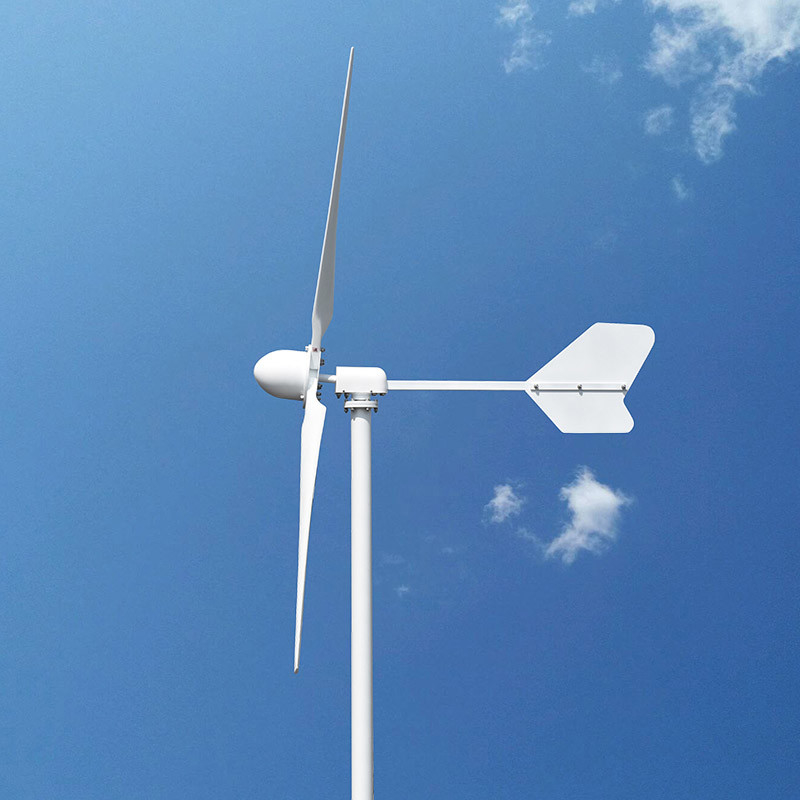

Multi Colors Wind Speed Horizontal Wind Turbine Generator,1KW 24V 48V Renewable Energy For Electricity

New energy (or renewable energy) includes solar energy, wind energy, geothermal energy, biomass energy and so on. Solar power generation has the characteristics of simple layout and convenient maintenance, and has a wide range of applications. The total installed capacity of the world has begun to catch up with traditional wind power generation. In Germany, it is even close to 5%-8% of the country's total power generation. Unexpectedly, the time limitation of solar power generation has led to an impact on the power grid. It has then become a big puzzle in the energy industry for how to solve this issue.

Wind power has been on the stage of history since the end of the 19th century. During the stage of development for more than 100 years, it has always been the only one in the field of new energy. Because of its relatively low cost, it has become the first choice for new energy in various countries.

At present, the most commonly used wind turbine is HAWT or horizontal axis wind turbine. These turbines use airfoils (aerodynamic blades) that are connected to the rotor by positioning in the upwind or downwind. They have two or three blades to choose from and can run at high speed.

Current horizontal axis wind turbines use aerodynamic lift to rotate each rotor blade, similar to aircraft flight. Usually, aerodynamic lift will work once exposed to the wind around the higher and lower parts of the blade. The pressure difference between the top and bottom surfaces of the blade generates a force in the top direction of the blade. The horizontal axis wind turbine line diagram is shown below.

HAWTs can be used in any direction of wind through the furling system. This system rotates the face of the rotor to come perpendicular to the wind’s direction. Therefore, the face of the rotor can be moved to that direction where it can face wind at the highest speed.

Feature

1. Low Start-up Wind Speed
2. Three Blades
3. Flange Connection with easy installation
4. Certified with CE,ROHS and ISO 9001 2000
5. Customized Colors
6. High-efficiency Three Phase PMG Generator

Application

1. Marine,&Boat

2. Streetlights

3. Home, Openning Plaza lighting.

4. Wind&Solar Hybrid System

5. Monitoring device

6. Factory

Wind&Solar Hybrid System

System

For nations who have abundant solar and wind energy resources, which have been applied in many fields. However, it is inevitable that both wind resources and solar energy resources are uncertain. Due to the uncertainty of resources, the electricity generated by wind power generation and solar power generation systems is unbalanced and cannot be directly used to supply power to the load. In order to provide a stable power supply to the load, it is necessary to use the battery as a "hub" to provide a stable power supply to the load. The complementarity in time and region is well connected to form distributed power generation.

Wind Turbine Generator

Alternator. The alternator is divided into two categories, synchronous generator and asynchronous generator. The synchronous generator works at the synchronous speed, which is determined by the number of poles and the frequency of the synchronous generator, while the asynchronous generator works at a speed slightly higher than that of the synchronous generator. Three-phase permanent magnet synchronous generators are mainly used in small wind power generation systems. Three-phase permanent magnet synchronous generators are generally small in size, high in efficiency, and cheap in price.

Solar Panel

Photovoltaic cells are devices that directly convert solar energy into electrical energy. Its working principle is,when sunlight radiates to the surface of the photovoltaic cell, photons will impact the valence electrons inside the photovoltaic cell, and when the valence electrons obtain energy greater than the forbidden band width eg, The valence electrons will break out of the covalent bond and be excited from the valence band to the conduction band, resulting in a large number of non-equilibrium electron-hole pairs. The excited electrons and holes collide freely and recombine in the photovoltaic cell semiconductor to reach equilibrium.

Battery For Energy Storage

As the energy storage device of the wind-solar hybrid power generation system, the battery plays a very important role in the entire power generation system. First, because the natural wind and light are unstable, in the case of excessive wind and light, the excess power supplied by the load is stored. When the wind and light are not good, the battery of the energy storage device can be used as the power supply for the load; secondly, it has a filtering effect, which can make the output power to be more stably. In addition, wind power generation and photovoltaic power generation are easily affected by climate and environment, and the amount of electricity varies at different times, and there are also great differences. As the "hub" between them, the battery can connect them well, and can integrate solar energy and wind energy to realize the complementary effect between the two.The intelligent wind-solar hybrid power generation system designed in this paper uses lead-acid batteries as energy storage devices.

Company Profile

Jiangsu Shenghuang New Energy Technology Co..Ltd. is located in Wuxi Liangxi district Jinshan North science and Technology Industrial Park, is a factory commitment to wind generators, solar monitoring system, wind and solar complementary monitoring system, photovoltaic system, wind and solar complementary controller,inverter,Gel battery, Lithium Battery Development and integrated application of green energy saving and environmental protection technology enterprises.

Focus on the development of solar power, wind-solar power generation system integration,the business consists of wind and solar monitoring system, Wind Turbine Grid and off-grid system PV system equipment design and procurement, complete sets, feasibility study and installation commissioning .
