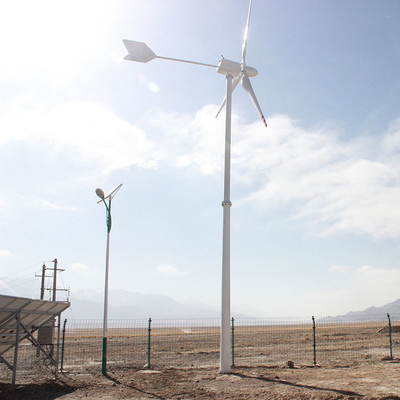

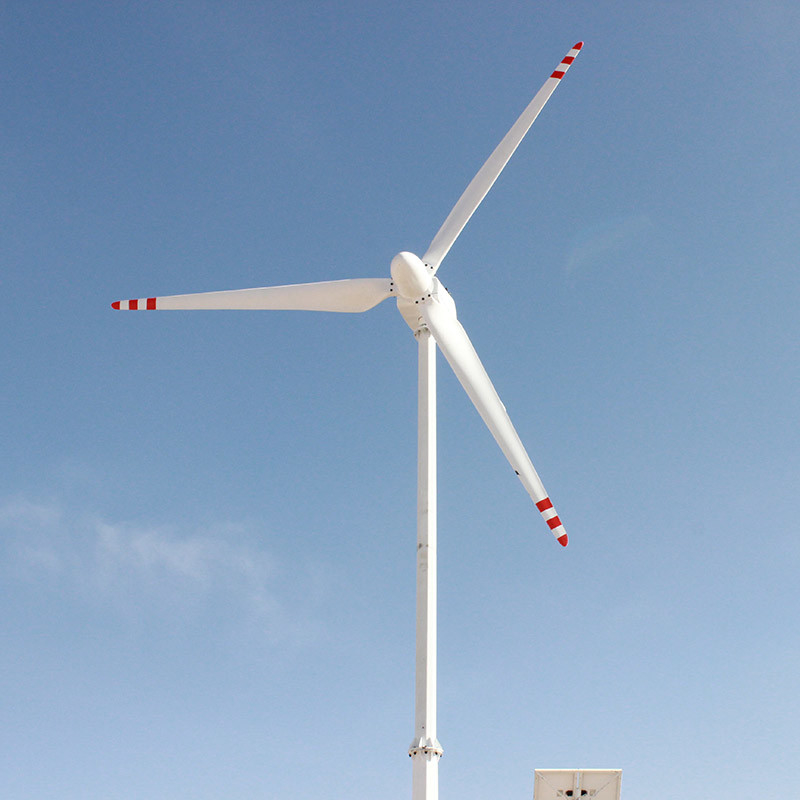

HAWT Wind Turbine Permanent Magnet 24V 48V 1000W HAWT Turbine

HAWT Wind Turbine Permanent Magnet 24V 48V 1000W HAWT Turbine
HAWT Wind Turbine Permanent Magnet 24V 48V 1000W HAWT Turbine HAWT Wind Turbine Permanent Magnet 24V 48V 1000W HAWT Turbine

Large Image :  HAWT Wind Turbine Permanent Magnet 24V 48V 1000W HAWT Turbine

Product Details:
Place of Origin: China-Jiangsu Province
Brand Name: Jiangsu Shenghuang
Certification: CE
Model Number: SH-A1000W
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: $320-$350/Piece
Packaging Details: Wooden Box
Delivery Time: 10-25 working days
Payment Terms: Negotiated, L/C, D/A, D/P, T/T, Western Union
Supply Ability: 800 sets per month

HAWT Wind Turbine Permanent Magnet 24V 48V 1000W HAWT Turbine

Name: 1kw Horizonal Wind Turbine Rated Power: 1-20kw
Brake Mode: Electromagnetism Blade Quantity/Material: 3/Glass Fibre
Warranty: Yes Rated Wind Speed: 13m/s
High Light:

HAWT wind turbine permanent magnet


1000W hawt turbine


horizontal axis small wind turbine

Three Phase Permanent Magnet Generator Multi Colors Horizontal Wind Turbine 24V 48V 1000W With Glass Fibre Blade


New energy (or renewable energy) includes solar energy, wind energy, geothermal energy, biomass energy and so on. Solar power generation has the characteristics of simple layout and convenient maintenance, and has a wide range of applications. The total installed capacity of the world has begun to catch up with traditional wind power generation. In Germany, it is even close to 5%-8% of the country's total power generation. Unexpectedly, the time limitation of solar power generation has led to an impact on the power grid. It has then become a big puzzle in the energy industry for how to solve this issue.

Wind power has been on the stage of history since the end of the 19th century. During the stage of development for more than 100 years, it has always been the only one in the field of new energy. Because of its relatively low cost, it has become the first choice for new energy in various countries.


We call the wind turbine with horizontal axis as horizontal axis wind turbine or HAWT for short. In HAWT, the turbine rotor is connected to the generator, and the turbine generator set is placed on the top of the turbine tower. A wind sensor with a servo motor keeps the axis of the turbine along the path of the wind.


Although the wind direction indicator in small turbines can achieve its purpose. The turbine usually has a gearbox between the turbine shaft and the generator shaft. The function of the gearbox is to provide mechanical coupling between the two shafts and increase the low speed of the turbine blades to the high speed of the generator.


Wind turbines vary in size and design, with core differences in the axial direction (horizontal or vertical). Obviously, in a horizontal axis wind turbine, the vertical propeller rotates horizontally facing the wind, while in a vertical axis wind turbine, the blades rotate around a vertical axis that is vertically facing the wind.


After years of development, it is clear that horizontal axis wind turbines or HAWT perform well in open areas, while VAWT has much less restrictions, so it can be installed on mountain tops and roofs in urban areas.




1. Low Start-up Wind Speed
2. Three Blades
3. Flange Connection with easy installation
4. Certified with CE,ROHS and ISO 9001 2000
5. Customized Colors
6. High-efficiency Three Phase PMG Generator




1. Marine,&Boat

2. Streetlights

3. Home, Openning Plaza lighting.

4. Wind&Solar Hybrid System

5. Monitoring device

6. Factory



Product Parameter


Model SH-A1000 SH-A1500 SH-A2000 SH-A2500 SH-A3000 SH-A5000 SH-A10K SH-A15K SH-A20K
Rated Power 1KW 1.5KW 2KW 2.5KW 3KW 5KW 10KW 15KW 20KW
Maximum Power 1.2KW 1.7KW 2.2KW 2.7KW 3.2KW 5.5KW 11KW 17KW 22KW
Nominal Voltage 48V/96V 48V/96V 48V/96V 48V/96V 96V/120V/220V 120V/220V/380V 120V/220V/380V 120V/220V/380V 120V/220V/380V
Rotor Diameter 2.8m 3.2m 3.2m 3.6m 4.8m 5.6m 7m 8m 9.8m
Weight 60kg 70kg 70kg 80kg 160kg 150kg 260kg 320kg 380kg
Package Weight 70kg 80kg 88kg 95kg 176kg 310kg 400kg 390kg 440kg
Package Size(mm) 1660*380*420 1630*420*450 1630*420*450 1830*420*450 2550*480*500
Start-up Wind Speed 3m/s
Rated Wind Speed 11m/s
Survival Wind Speed 50m/s
Blade Quantity 3 piece
Blade Material FRP
Generator Housing Material Carbon Steel
Packing Wooden Box
Generator Type 3 Phase Permanent Magnet Generator
alnico magnet NdFeB
brake mode electromagnetism
The wind adjustment Automatically adjust to windward
Working temperature -40℃-80℃



HAWT Wind Turbine Permanent Magnet 24V 48V 1000W HAWT Turbine 0

Wind&Solar Hybrid System



For nations who have abundant solar and wind energy resources, which have been applied in many fields. However, it is inevitable that both wind resources and solar energy resources are uncertain. Due to the uncertainty of resources, the electricity generated by wind power generation and solar power generation systems is unbalanced and cannot be directly used to supply power to the load. In order to provide a stable power supply to the load, it is necessary to use the battery as a "hub" to provide a stable power supply to the load. The complementarity in time and region is well connected to form distributed power generation.


Wind Turbine Generator


Alternator. The alternator is divided into two categories, synchronous generator and asynchronous generator. The synchronous generator works at the synchronous speed, which is determined by the number of poles and the frequency of the synchronous generator, while the asynchronous generator works at a speed slightly higher than that of the synchronous generator. Three-phase permanent magnet synchronous generators are mainly used in small wind power generation systems. Three-phase permanent magnet synchronous generators are generally small in size, high in efficiency, and cheap in price.


Solar Panel


Photovoltaic cells are devices that directly convert solar energy into electrical energy. Its working principle is,when sunlight radiates to the surface of the photovoltaic cell, photons will impact the valence electrons inside the photovoltaic cell, and when the valence electrons obtain energy greater than the forbidden band width eg, The valence electrons will break out of the covalent bond and be excited from the valence band to the conduction band, resulting in a large number of non-equilibrium electron-hole pairs. The excited electrons and holes collide freely and recombine in the photovoltaic cell semiconductor to reach equilibrium.


Battery For Energy Storage


As the energy storage device of the wind-solar hybrid power generation system, the battery plays a very important role in the entire power generation system. First, because the natural wind and light are unstable, in the case of excessive wind and light, the excess power supplied by the load is stored. When the wind and light are not good, the battery of the energy storage device can be used as the power supply for the load; secondly, it has a filtering effect, which can make the output power to be more stably. In addition, wind power generation and photovoltaic power generation are easily affected by climate and environment, and the amount of electricity varies at different times, and there are also great differences. As the "hub" between them, the battery can connect them well, and can integrate solar energy and wind energy to realize the complementary effect between the two.The intelligent wind-solar hybrid power generation system designed in this paper uses lead-acid batteries as energy storage devices.


Company Profile


Jiangsu Shenghuang New Energy Technology Co..Ltd. is located in Wuxi Liangxi district Jinshan North science and Technology Industrial Park, is a factory commitment to wind generators, solar monitoring system, wind and solar complementary monitoring system, photovoltaic system, wind and solar complementary controller,inverter,Gel battery, Lithium Battery Development and integrated application of green energy saving and environmental protection technology enterprises.


Focus on the development of solar power, wind-solar power generation system integration,the business consists of wind and solar monitoring system, Wind Turbine Grid and off-grid system PV system equipment design and procurement, complete sets, feasibility study and installation commissioning .
