Product Details:
|
| Rated Power: | 600W-6KW | Color: | White/Red/Blue/Green/Customized |
|---|---|---|---|
| Blade Material: | Glass Fibre | Name: | 2000W X Type Vertical Axis Wind Turbine Generator |
| Voltage: | 24V/48V | Phase: | 3 |
| High Light: | VWAT Vertical Axis Wind Turbine,Vertical Axis Wind Turbine 2KW,96V Vertical Wind Turbine Types |
||
Three Phase Vertical Axis Wind Turbine VWAT 1KW 2KW 48V 96V 220V Flange Connection For Home Use
This is a product that can use wind power and convert it into electricity for residential use.
Its design makes it need small space for installation,while still maintaining the capacity of wind power. Many wind turbines on the market will occupy several feet of space in diameter. When using such products, huge space area required to place a series of wind turbines.This model is not the case. Wind turbines will never interfere with the rotation of adjacent turbines.

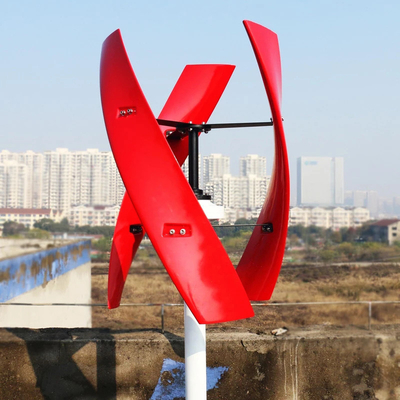

The blades of the device are long and spiral. Each blade has the characteristic shape of an aircraft wing. This allows the blade to rotate effortlessly while minimizing noise. The wing design improves the aerodynamic efficiency of the blades. Due to the easy rotation of the system, it helps to generate more power.
| Model | SH-X600 | SH-X800 | SH-X1000 | SH-X1500 |
| Rated Power | 600W | 800W | 1000W | 1500W |
| Maximum Power | 650W | 850W | 1150W | 1650W |
| Rated Voltage | 12V/24V | 12V/24V/48V | 24V/48V/96V | 48V/96V/120V |
| Start-up Wind Speed | 2.0m/s | 2.0m/s | 2.0m/s | 2.0m/s |
| Rated Wind Speed | 10m/s | 10m/s | 10m/s | 12m/s |
| Survival Wind Speed | 40m/s | 40m/s | 40m/s | 40m/s |
| Number of Blades | 3 | 3 | 3 | 3 |
| Blade Height | 0.8m | 1.4m | 1.8m | 1.8m |
| Blade Material | Glass Fibre | |||
| Type of Generator | Three-phase AC Permanent Magnet Generator | |||
| Magnetic Steel Material | NdFeB | |||
| Control System | Electromagnet | |||
| Working Temperature | -40℃-80℃ | |||
| Design Life | 20 Years | |||
| Model | SH-X2000 | SH-X3000 | SH-X5000 | SH-X10000 |
| Rated Power | 2000W | 3000W | 5000W | 10KW |
| Maximum Power | 2200W | 3200W | 5500W | 11KW |
| Rated Voltage | 48V/96V/120V/220V | 96V/120V/220V | 96V/120V/220V/380V |
96V/120V/220V/380V |
| Start-up Wind Speed | 2.0m/s | 2.0m/s | 2.0m/s | 2.0m/s |
| Rated Wind Speed | 12m/s | 12m/s | 12m/s | 13m/s |
| Survival Wind Speed | 40m/s | 40m/s | 40m/s | 40m/s |
| Number of Blades | 3 | 3 | 3 | 3 |
| Blade Height | 2.1m | 2.1m | 2.8m | 3.6m |
| Blade Material | Glass Fiber | |||
| Type of Generator | Three-phase AC Permanent Magnet Generator | |||
| Magnetic Steel Material | NdFeB | |||
| Control System | Electromagnet | |||
| Working Temperature | -40℃-80℃ | |||
| Design Life | 20 Years | |||
Product Feature
1. Low start-up wind speed and operating vibration
2. Adopting Flange connection, convenient installation and maintenance
3. Low Noise Level

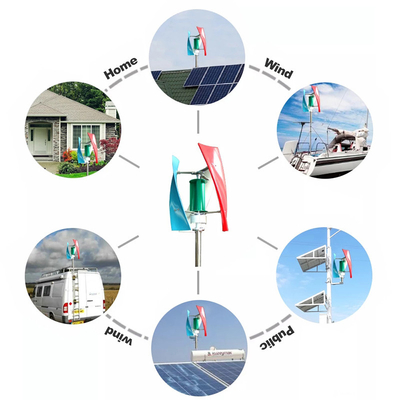

4. Can be installed on roof top
5. High Efficiency
6. Workable to do hybrid with solar panel.
FAQ
1.Q:Does the system install easy?
--A:Very easy.Every customer can do it by themselves.We will supply the components for installation and detailed manual.If you still have any confusion,our technician can support you by video to make sure there is no problem.
2. Q:Distance between wind turbine,controller and battery?
--A:Normally,it will be better within 10 meters from wind turbine to controller,and controller to batteries.The distance between batteries and inverter is within 20-50 meters.
3.Q:For horizontal wind turbines vs vertical wind turbines,which kind of efficiency is better?
--A:For same watts and same wind speed,the output of horizontal wind turbines is more efficient than that of vertical wind turbines.But if the wind speed is very slowly,we suggest you to use our vertical SS type.If the wind speed is over 8 m/s,our wind turbine are also with around 80-90% efficiency.The popular points is there is no noise.
