Product Details:
|
| Rated Power: | 600W-6KW | Color: | White/Red/Blue/Green/Customized |
|---|---|---|---|
| Blade Material: | Glass Fibre | Name: | 3000W X Type Vertical Axis Wind Turbine Generator |
| Voltage: | 24V/48V/96V | Blade Quantity: | 3 |
| High Light: | Small Vertical Wind Turbine 1KW,Small Vertical Wind Turbine 2KW,48V Vertical Wind Turbine |
||

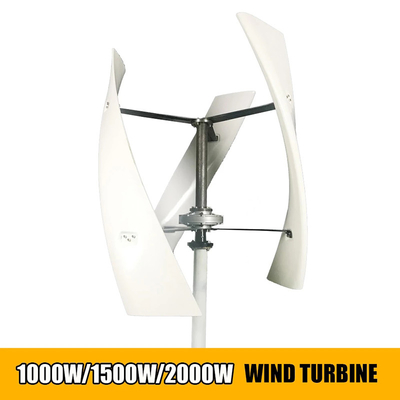

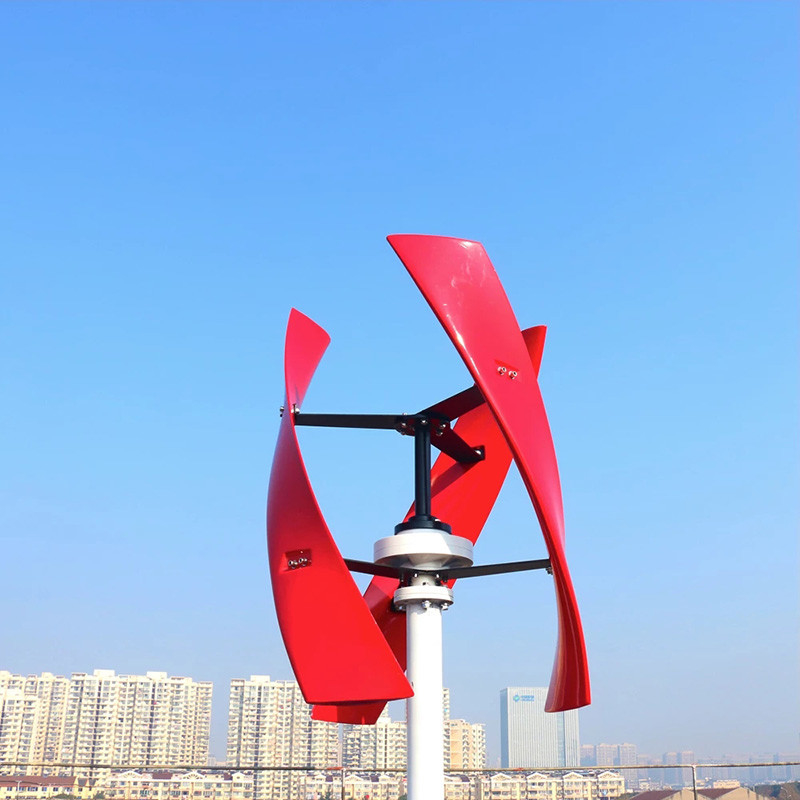

Modern Free Alternative Energy Small Vertical Wind Turbine 1KW 2KW 24V 48V Permanent Magnet Generator With Good Shape
Speaking of wind turbines, you might think of those that look like airplane propellers, and they're called horizontal-axis wind turbines. But there is another type of wind turbine still in development that seems to have great potential to reduce the limitations of horizontal axis turbines.
Vertical axis turbines are easily distinguished by their vertical shape. Unlike horizontal axis turbines, vertical turbines come in a variety of shapes and designs.
A wind turbine cannot be a wind turbine unless there are few blades. Likewise, horizontal axis turbines and vertical axis turbines have a set of blades. But they don't rotate horizontally, they rotate vertically. So, the rotation axis of VAWT is vertical, which is why it has such a name.
Engineers designed VAWT to make turbines more economical and practical than conventional turbines.
| Model | SH-X600 | SH-X800 | SH-X1000 | SH-X1500 |
| Rated Power | 600W | 800W | 1000W | 1500W |
| Maximum Power | 650W | 850W | 1150W | 1650W |
| Rated Voltage | 12V/24V | 12V/24V/48V | 24V/48V/96V | 48V/96V/120V |
| Start-up Wind Speed | 2.0m/s | 2.0m/s | 2.0m/s | 2.0m/s |
| Rated Wind Speed | 10m/s | 10m/s | 10m/s | 12m/s |
| Survival Wind Speed | 40m/s | 40m/s | 40m/s | 40m/s |
| Number of Blades | 3 | 3 | 3 | 3 |
| Blade Height | 0.8m | 1.4m | 1.8m | 1.8m |
| Blade Material | Glass Fibre | |||
| Type of Generator | Three-phase AC Permanent Magnet Generator | |||
| Magnetic Steel Material | NdFeB | |||
| Control System | Electromagnet | |||
| Working Temperature | -40℃-80℃ | |||
| Design Life | 20 Years | |||
| Model | SH-X2000 | SH-X3000 | SH-X5000 | SH-X10000 |
| Rated Power | 2000W | 3000W | 5000W | 10KW |
| Maximum Power | 2200W | 3200W | 5500W | 11KW |
| Rated Voltage | 48V/96V/120V/220V | 96V/120V/220V | 96V/120V/220V/380V |
96V/120V/220V/380V |
| Start-up Wind Speed | 2.0m/s | 2.0m/s | 2.0m/s | 2.0m/s |
| Rated Wind Speed | 12m/s | 12m/s | 12m/s | 13m/s |
| Survival Wind Speed | 40m/s | 40m/s | 40m/s | 40m/s |
| Number of Blades | 3 | 3 | 3 | 3 |
| Blade Height | 2.1m | 2.1m | 2.8m | 3.6m |
| Blade Material | Glass Fiber | |||
| Type of Generator | Three-phase AC Permanent Magnet Generator | |||
| Magnetic Steel Material | NdFeB | |||
| Control System | Electromagnet | |||
| Working Temperature | -40℃-80℃ | |||
| Design Life | 20 Years | |||
Some features of VAWT make people choose it over HAWT for residential and commercial use. Let's see what benefits VAWT can bring to your home or office.
1. You don't need to set the turbine too high off the ground. Even if you don't have the proper roof placement, you can easily build the turbine close to the ground. Just make sure the area is clear of any obstructions.
2. The maintenance cost of such turbines is much lower than that of horizontal turbines. Due to the close proximity of the turbine to the ground, necessary maintenance is easy and safe.
3. If you're an animal lover, you'll love the fact that vertical axis wind turbines are bird friendly and won't harm wildlife.
4. These turbines don't make as much noise as the HAWT. Operating noise is much lower than conventional turbines.
5. You don't need to point the turbine towards the wind. They work well even when exposed to different wind directions.
6. No additional mechanism is required to operate.
7. You can set up multiple VAWTs close to each other. It is not necessary to have large fields and farms.
8. Suitable for areas where towering structures are not allowed.
9. You can easily transport turbines from one place to another.
10.Vertical axis wind turbines are very economical and suitable for small residential energy production. Great for urban areas.
Compared to horizontal turbines, their cost is much lower.
Many of these turbines are resistant to various weather elements. You can easily choose a unit that best suits your local environment.
Product Feature
1. Low start-up wind speed and operating vibration
2. Adopting Flange connection, convenient installation and maintenance
3. Low Noise Level
4. Can be installed on roof top
5. High Efficiency
6. Workable to do hybrid with solar panel.
FAQ
1.Q:Does our wind is enough for a wind turbine?
-- A:Please contact with our salesman with the following points:
2.Q:Can i buy full wind and solar system from you?
-- A:Of course.Jiangsu Shenghuang New Energy Technology Co.,Ltd,can supply one-stop energy solution.We have our own technician team to supply technical support.You just need to ask a technican to install it for you.
3.Q:The delivery date for each type?
--A:Normally for wind turbine below 1kw,they are under producing all the time,and can be shipped any time.For other watts,it is around 7-14 days,and it can be negotiated according to the quantity.
4.Q:If we could be your agent or distributor?
-- A:Our company welcome more partners to joint us,but you need to double to check with us,because some area have agents alreay.Thanks for your understanding
