Product Details:
|
| Rated Power: | 600W-6KW | Color: | White/Red/Blue/Green/Customized |
|---|---|---|---|

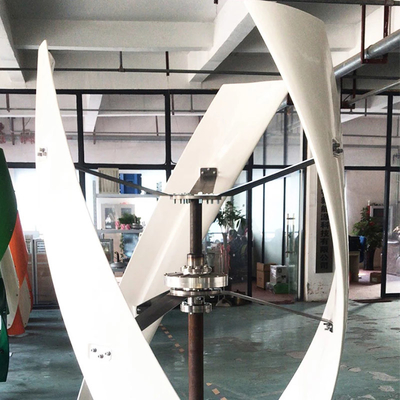

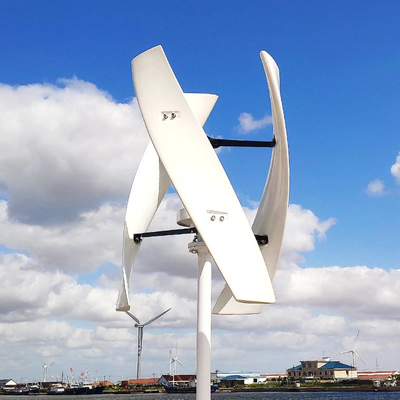

| Blade Material: | Glass Fibre | Name: | 3000W X Type Vertical Axis Wind Turbine Generator |
| Voltage: | 48V/96V/220V | Flange Connection: | Yes |
| High Light: | 48 Volt Spiral Wind Turbine Generator,Spiral Wind Turbine Generator 3000W,5000W axial wind turbine generator |
||
A vertical axis wind turbine (VAWT) is a wind turbine with the main rotor axis running vertically. VAWT does not need to be pointed towards the wind.Vertical axis windmill/turbine, 300W to 30kW vertical magnetic windmill with permanent magnet generator PMG and grid-tied wind inverter.
Small wind energy systems, small wind energy and renewable energy systems. Please contact us for VAWT pricing and information.
It is well known that the output power of a wind turbine is proportional to the cube of the inlet wind speed. This suggests that small accelerations to air lead to large increases in potential power extraction. Therefore, many research efforts are devoted to finding an efficient way to increase the wind speed close to the wind turbine. Turbines enhanced in this way are often referred to as diffuser enhanced wind turbines (DAWT) or enclosed wind turbines.
Some features of VAWT make people choose it over HAWT for residential and commercial use. Let's see what benefits VAWT can bring to your home or office.
1. You don't need to set the turbine too high off the ground. Even if you don't have the proper roof placement, you can easily build the turbine close to the ground. Just make sure the area is clear of any obstructions.
2. The maintenance cost of such turbines is much lower than that of horizontal turbines. Due to the close proximity of the turbine to the ground, necessary maintenance is easy and safe.
3. If you're an animal lover, you'll love the fact that vertical axis wind turbines are bird friendly and won't harm wildlife.
4. These turbines don't make as much noise as the HAWT. Operating noise is much lower than conventional turbines.
5. You don't need to point the turbine towards the wind. They work well even when exposed to different wind directions.
6. No additional mechanism is required to operate.
7. You can set up multiple VAWTs close to each other. It is not necessary to have large fields and farms.
8. Suitable for areas where towering structures are not allowed.
9. You can easily transport turbines from one place to another.
10.Vertical axis wind turbines are very economical and suitable for small residential energy production. Great for urban areas.
Compared to horizontal turbines, their cost is much lower.
Many of these turbines are resistant to various weather elements. You can easily choose a unit that best suits your local environment.
| Model | SH-X600 | SH-X800 | SH-X1000 | SH-X1500 |
| Rated Power | 600W | 800W | 1000W | 1500W |
| Maximum Power | 650W | 850W | 1150W | 1650W |
| Rated Voltage | 12V/24V | 12V/24V/48V | 24V/48V/96V | 48V/96V/120V |
| Start-up Wind Speed | 2.0m/s | 2.0m/s | 2.0m/s | 2.0m/s |
| Rated Wind Speed | 10m/s | 10m/s | 10m/s | 12m/s |
| Survival Wind Speed | 40m/s | 40m/s | 40m/s | 40m/s |
| Number of Blades | 3 | 3 | 3 | 3 |
| Blade Height | 0.8m | 1.4m | 1.8m | 1.8m |
| Blade Material | Glass Fibre | |||
| Type of Generator | Three-phase AC Permanent Magnet Generator | |||
| Magnetic Steel Material | NdFeB | |||
| Control System | Electromagnet | |||
| Working Temperature | -40℃-80℃ | |||
| Design Life | 20 Years | |||
| Model | SH-X2000 | SH-X3000 | SH-X5000 | SH-X10000 |
| Rated Power | 2000W | 3000W | 5000W | 10KW |
| Maximum Power | 2200W | 3200W | 5500W | 11KW |
| Rated Voltage | 48V/96V/120V/220V | 96V/120V/220V | 96V/120V/220V/380V |
96V/120V/220V/380V |
| Start-up Wind Speed | 2.0m/s | 2.0m/s | 2.0m/s | 2.0m/s |
| Rated Wind Speed | 12m/s | 12m/s | 12m/s | 13m/s |
| Survival Wind Speed | 40m/s | 40m/s | 40m/s | 40m/s |
| Number of Blades | 3 | 3 | 3 | 3 |
| Blade Height | 2.1m | 2.1m | 2.8m | 3.6m |
| Blade Material | Glass Fiber | |||
| Type of Generator | Three-phase AC Permanent Magnet Generator | |||
| Magnetic Steel Material | NdFeB | |||
| Control System | Electromagnet | |||
| Working Temperature | -40℃-80℃ | |||
| Design Life | 20 Years | |||
Product Feature
1. Low start-up wind speed and operating vibration
2. Adopting Flange connection, convenient installation and maintenance
3. Low Noise Level
4. Can be installed on roof top
5. High Efficiency
6. Workable to do hybrid with solar panel.
FAQ
1.Q:Does our wind is enough for a wind turbine?
-- A:Please contact with our salesman with the following points:
2.Q:Can i buy full wind and solar system from you?
-- A:Of course.Jiangsu Shenghuang New Energy Technology Co.,Ltd,can supply one-stop energy solution.We have our own technician team to supply technical support.You just need to ask a technican to install it for you.
3.Q:The delivery date for each type?
--A:Normally for wind turbine below 1kw,they are under producing all the time,and can be shipped any time.For other watts,it is around 7-14 days,and it can be negotiated according to the quantity.
4.Q:If we could be your agent or distributor?
-- A:Our company welcome more partners to joint us,but you need to double to check with us,because some area have agents alreay.Thanks for your understanding
