Product Details:
|
| Certification: | CE | Rated Power: | 600W-6KW |
|---|---|---|---|
| Logo: | Customization Available | Blade Material: | Glass Fibre |
| Colors: | Black/White/Blue/Others | Type: | Vertical |
| High Light: | 10kw vertical wind turbine,96V spiral wind turbine generator,96V vertical axis wind mills |
||

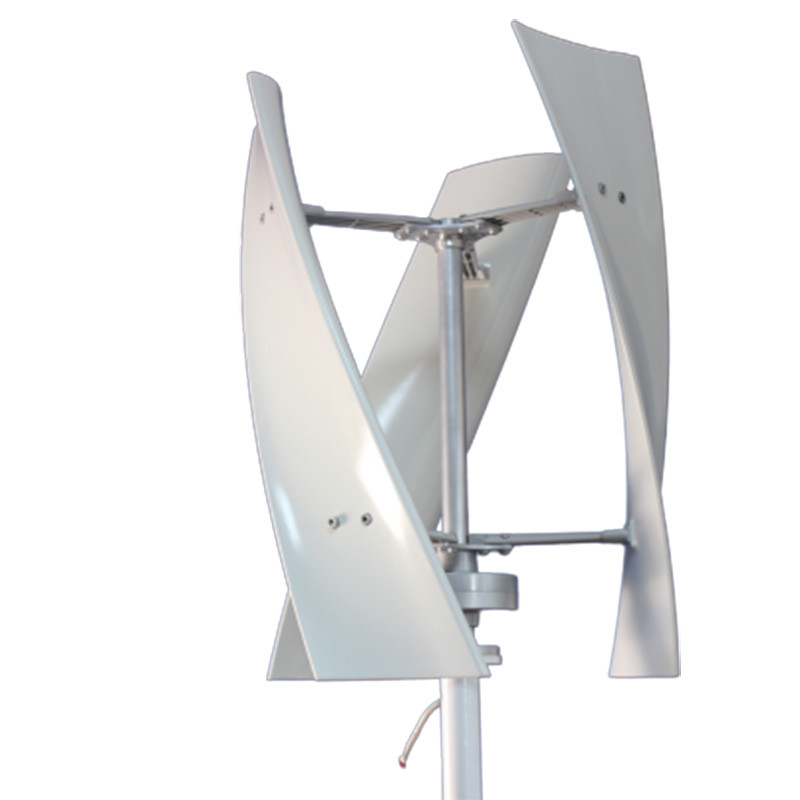

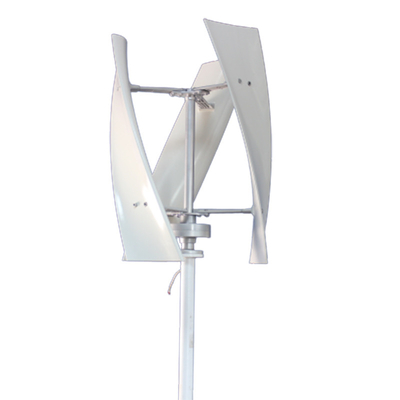

Three Phase Permanent Vertical Turbine 5KW 6KW 96V 380V With Multi Colors For Energy Company
A vertical axis wind turbine (VAWT) is a wind turbine with the main rotor axis running vertically. VAWT does not need to be pointed towards the wind.Vertical axis windmill/turbine, 300W to 30kW vertical magnetic windmill with permanent magnet generator PMG and grid-tied wind inverter.
A wind turbine is a machine that converts wind energy into mechanical or electrical energy. A wind turbine consists of a foundation, tower, nacelle and rotor. The base prevents the turbine from falling. The wind tower supports the rotor and the nacelle (or box).
The nacelle contains large major components such as main shafts, gearboxes, generators, transformers and control systems. The rotor consists of blades and a hub that holds the blades in place as they turn. Most commercial wind turbines have three rotor blades. The length of the blade can exceed 60 meters.
The towers are mostly tubular, made of steel or concrete, and usually painted a light grey. Blades are made of fiberglass, reinforced polyester or wood epoxy. They are light grey because they are inconspicuous in most lighting conditions. The finish is matte to reduce reflected light.
| Model | SH-X600 | SH-X800 | SH-X1000 | SH-X1500 |
| Rated Power | 600W | 800W | 1000W | 1500W |
| Maximum Power | 650W | 850W | 1150W | 1650W |
| Rated Voltage | 12V/24V | 12V/24V/48V | 24V/48V/96V | 48V/96V/120V |
| Start-up Wind Speed | 2.0m/s | 2.0m/s | 2.0m/s | 2.0m/s |
| Rated Wind Speed | 10m/s | 10m/s | 10m/s | 12m/s |
| Survival Wind Speed | 40m/s | 40m/s | 40m/s | 40m/s |
| Number of Blades | 3 | 3 | 3 | 3 |
| Blade Height | 0.8m | 1.4m | 1.8m | 1.8m |
| Blade Material | Glass Fibre | |||
| Type of Generator | Three-phase AC Permanent Magnet Generator | |||
| Magnetic Steel Material | NdFeB | |||
| Control System | Electromagnet | |||
| Working Temperature | -40℃-80℃ | |||
| Design Life | 20 Years | |||
| Model | SH-X2000 | SH-X3000 | SH-X5000 | SH-X10000 |
| Rated Power | 2000W | 3000W | 5000W | 10KW |
| Maximum Power | 2200W | 3200W | 5500W | 11KW |
| Rated Voltage | 48V/96V/120V/220V | 96V/120V/220V | 96V/120V/220V/380V |
96V/120V/220V/380V |
| Start-up Wind Speed | 2.0m/s | 2.0m/s | 2.0m/s | 2.0m/s |
| Rated Wind Speed | 12m/s | 12m/s | 12m/s | 13m/s |
| Survival Wind Speed | 40m/s | 40m/s | 40m/s | 40m/s |
| Number of Blades | 3 | 3 | 3 | 3 |
| Blade Height | 2.1m | 2.1m | 2.8m | 3.6m |
| Blade Material | Glass Fiber | |||
| Type of Generator | Three-phase AC Permanent Magnet Generator | |||
| Magnetic Steel Material | NdFeB | |||
| Control System | Electromagnet | |||
| Working Temperature | -40℃-80℃ | |||
| Design Life | 20 Years | |||
Some features of VAWT make people choose it over HAWT for residential and commercial use. Let's see what benefits VAWT can bring to your home or office.
1. You don't need to set the turbine too high off the ground. Even if you don't have the proper roof placement, you can easily build the turbine close to the ground. Just make sure the area is clear of any obstructions.
2. The maintenance cost of such turbines is much lower than that of horizontal turbines. Due to the close proximity of the turbine to the ground, necessary maintenance is easy and safe.
3. If you're an animal lover, you'll love the fact that vertical axis wind turbines are bird friendly and won't harm wildlife.
4. These turbines don't make as much noise as the HAWT. Operating noise is much lower than conventional turbines.
5. You don't need to point the turbine towards the wind. They work well even when exposed to different wind directions.
6. No additional mechanism is required to operate.
7. You can set up multiple VAWTs close to each other. It is not necessary to have large fields and farms.
8. Suitable for areas where towering structures are not allowed.
9. You can easily transport turbines from one place to another.
10.Vertical axis wind turbines are very economical and suitable for small residential energy production. Great for urban areas.
Compared to horizontal turbines, their cost is much lower.
Many of these turbines are resistant to various weather elements. You can easily choose a unit that best suits your local environment.
Product Feature
1. Low start-up wind speed and operating vibration
2. Adopting Flange connection, convenient installation and maintenance
3. Low Noise Level
4. Can be installed on roof top
5. High Efficiency
6. Workable to do hybrid with solar panel.
FAQ
1.Q:What is Wind Turbulence?
--A:Wind turbulence is a natural phenomenon in airflow that affects wind turbines. When the wind flows, like a river, there are areas of rotation and disturbance that prevent the wind from flowing continuously. This is the same turbulence you might encounter on an airplane. Wind turbines can be affected if wind turbulence is excessive and causes damage to the system. Because most home wind turbines are low off the ground turbulence is a minimal problem. You can avoid turbulence by placing the turbines correctly.
2. Q:What is Wind Energy Power Curve?
--A:For wind turbines, a power curve is a graph showing the maximum energy output of the turbine given a specific wind speed. Each wind turbine model and wind turbine size will have a different power curve. The wind power curve includes the cut-in speed, or the wind speed required by the generator to generate electricity, the rated speed, or wind speed required to produce optimal energy production from the turbine, and the cut-out speed, which is the wind speed at which the turbine will shut itself off and no longer produce energy.
3.Q:For horizontal wind turbines vs vertical wind turbines,which kind of efficiency is better?
--A:For same watts and same wind speed,the output of horizontal wind turbines is more efficient than that of vertical wind turbines.But if the wind speed is very slowly,we suggest you to use our vertical SS type.If the wind speed is over 8 m/s,our wind turbine are also with around 80-90% efficiency.The popular points is there is no noise.
