VAWT Vertical Axis Wind Turbine 6KW 96V 380V Permanent Magnet Generator Wind Turbine

Certification
China Shenghuang New Energy Technology Co.,Ltd certification
China Shenghuang New Energy Technology Co.,Ltd certification
Customer Reviews
Fasten packing!Thanks for the good service!I will place mass order soon!

—— Zenia

I bough this style before,but it cannot produce electricity.I try buy same style from this supplier.I am so luck,and it is higher quality.The best is that it can produce electricity.

—— Lena

I'm Online Chat Now

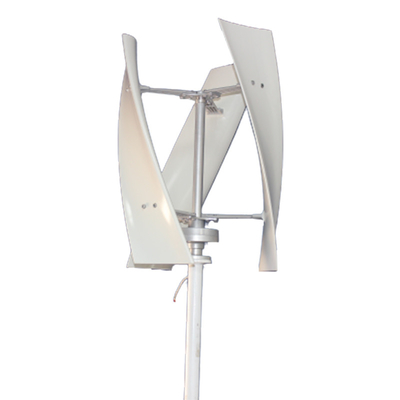

VAWT Vertical Axis Wind Turbine 6KW 96V 380V Permanent Magnet Generator Wind Turbine

VAWT Vertical Axis Wind Turbine 6KW 96V 380V Permanent Magnet Generator Wind Turbine
VAWT Vertical Axis Wind Turbine 6KW 96V 380V Permanent Magnet Generator Wind Turbine VAWT Vertical Axis Wind Turbine 6KW 96V 380V Permanent Magnet Generator Wind Turbine

Large Image :  VAWT Vertical Axis Wind Turbine 6KW 96V 380V Permanent Magnet Generator Wind Turbine

Product Details:
Place of Origin: China-Jiangsu Province
Brand Name: Jiangsu Shenghuang
Certification: CE
Model Number: SH-X6000
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: $4100-$4400
Packaging Details: Carton/Foam+plywooden case
Delivery Time: 10-25 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 800 sets per month

VAWT Vertical Axis Wind Turbine 6KW 96V 380V Permanent Magnet Generator Wind Turbine

Description
Rated Power: 600W-6KW Logo: Customization Available
Start-up Wind Speed: 2m/s Certification: CE
Colors: Black/White/Blue/Others Voltage: 96V/120V/220V/380V
High Light:

VAWT Vertical Axis Wind Turbine

,

6KW savonius wind turbine

,

6KW vawt wind generator

Flange Connection Vertical Turbine 5KW 6KW 96V 380V With Permanent Magnet Generator For New Energy Technology





A vertical axis wind turbine (VAWT) is a wind turbine with the main rotor axis running vertically. VAWT does not need to be pointed towards the wind.Vertical axis windmill/turbine, 300W to 30kW vertical magnetic windmill with permanent magnet generator PMG and grid-tied wind inverter.



A wind turbine is a machine that converts wind energy into mechanical or electrical energy. A wind turbine consists of a foundation, tower, nacelle and rotor. The base prevents the turbine from falling. The wind tower supports the rotor and the nacelle (or box).



The nacelle contains large major components such as main shafts, gearboxes, generators, transformers and control systems. The rotor consists of blades and a hub that holds the blades in place as they turn. Most commercial wind turbines have three rotor blades. The length of the blade can exceed 60 meters.


The towers are mostly tubular, made of steel or concrete, and usually painted a light grey. Blades are made of fiberglass, reinforced polyester or wood epoxy. They are light grey because they are inconspicuous in most lighting conditions. The finish is matte to reduce reflected light.



Model SH-X600 SH-X800 SH-X1000 SH-X1500
Rated Power 600W 800W 1000W 1500W
Maximum Power 650W 850W 1150W 1650W
Rated Voltage 12V/24V 12V/24V/48V 24V/48V/96V 48V/96V/120V
Start-up Wind Speed 2.0m/s 2.0m/s 2.0m/s 2.0m/s
Rated Wind Speed 10m/s 10m/s 10m/s 12m/s
Survival Wind Speed 40m/s 40m/s 40m/s 40m/s
Number of Blades 3 3 3 3
Blade Height 0.8m 1.4m 1.8m 1.8m
Blade Material Glass Fibre
Type of Generator Three-phase AC Permanent Magnet Generator
Magnetic Steel Material NdFeB
Control System Electromagnet
Working Temperature -40℃-80℃
Design Life 20 Years



Model SH-X2000 SH-X3000 SH-X5000 SH-X10000
Rated Power 2000W 3000W 5000W 10KW
Maximum Power 2200W 3200W 5500W 11KW
Rated Voltage 48V/96V/120V/220V 96V/120V/220V 96V/120V/220V/380V



96V/120V/220V/380V

Start-up Wind Speed 2.0m/s 2.0m/s 2.0m/s 2.0m/s
Rated Wind Speed 12m/s 12m/s 12m/s 13m/s
Survival Wind Speed 40m/s 40m/s 40m/s 40m/s
Number of Blades 3 3 3 3
Blade Height 2.1m 2.1m 2.8m 3.6m
Blade Material Glass Fiber
Type of Generator Three-phase AC Permanent Magnet Generator
Magnetic Steel Material NdFeB
Control System Electromagnet
Working Temperature -40℃-80℃
Design Life 20 Years



Advantages of vertical axis wind turbines



Some features of VAWT make people choose it over HAWT for residential and commercial use. Let's see what benefits VAWT can bring to your home or office.





1. You don't need to set the turbine too high off the ground. Even if you don't have the proper roof placement, you can easily build the turbine close to the ground. Just make sure the area is clear of any obstructions.



2. The maintenance cost of such turbines is much lower than that of horizontal turbines. Due to the close proximity of the turbine to the ground, necessary maintenance is easy and safe.



3. If you're an animal lover, you'll love the fact that vertical axis wind turbines are bird friendly and won't harm wildlife.



4. These turbines don't make as much noise as the HAWT. Operating noise is much lower than conventional turbines.



5. You don't need to point the turbine towards the wind. They work well even when exposed to different wind directions.



6. No additional mechanism is required to operate.



7. You can set up multiple VAWTs close to each other. It is not necessary to have large fields and farms.



8. Suitable for areas where towering structures are not allowed.



9. You can easily transport turbines from one place to another.



10.Vertical axis wind turbines are very economical and suitable for small residential energy production. Great for urban areas.



Compared to horizontal turbines, their cost is much lower.





Many of these turbines are resistant to various weather elements. You can easily choose a unit that best suits your local environment.



VAWT Vertical Axis Wind Turbine 6KW 96V 380V Permanent Magnet Generator Wind Turbine 0



Product Feature



1. Low start-up wind speed and operating vibration

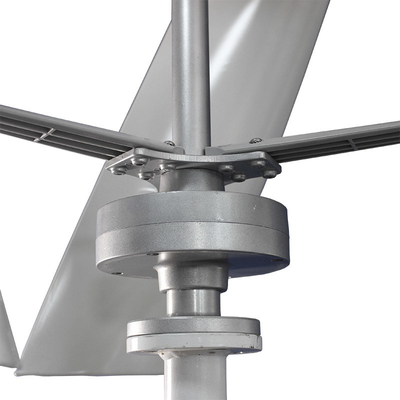

2. Adopting Flange connection, convenient installation and maintenance

3. Low Noise Level

4. Can be installed on roof top

5. High Efficiency

6. Workable to do hybrid with solar panel.





FAQ



1.Q:What is Wind Turbulence?
--A:
Wind turbulence is a natural phenomenon in airflow that affects wind turbines. When the wind flows, like a river, there are areas of rotation and disturbance that prevent the wind from flowing continuously. This is the same turbulence you might encounter on an airplane. Wind turbines can be affected if wind turbulence is excessive and causes damage to the system. Because most home wind turbines are low off the ground turbulence is a minimal problem. You can avoid turbulence by placing the turbines correctly.



2. Q:What is Wind Energy Power Curve?
--A:
For wind turbines, a power curve is a graph showing the maximum energy output of the turbine given a specific wind speed. Each wind turbine model and wind turbine size will have a different power curve. The wind power curve includes the cut-in speed, or the wind speed required by the generator to generate electricity, the rated speed, or wind speed required to produce optimal energy production from the turbine, and the cut-out speed, which is the wind speed at which the turbine will shut itself off and no longer produce energy.



3.Q:Are Wind Turbine Generator Noisy?
--A:The noise of wind turbines has been significantly reduced. The improved design greatly reduces the noise of the mechanical components, so the sounds most easily heard are those of the wind interacting with the rotor blades. This is similar to a light swish sound, much quieter than other types of modern devices. Even in generally quiet rural areas, the wind tends to be louder than the turbines.
