3KW 5KW Horizontal Wind Turbine Flange Connection Glass Fibre Blade

China Shenghuang New Energy Technology Co.,Ltd certification
China Shenghuang New Energy Technology Co.,Ltd certification
Customer Reviews
Fasten packing!Thanks for the good service!I will place mass order soon!

—— Zenia

I bough this style before,but it cannot produce electricity.I try buy same style from this supplier.I am so luck,and it is higher quality.The best is that it can produce electricity.

—— Lena

I'm Online Chat Now

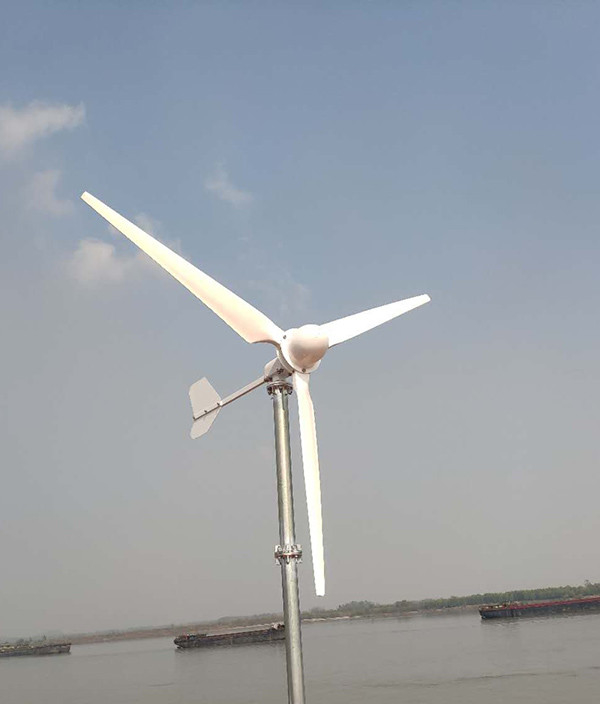

3KW 5KW Horizontal Wind Turbine Flange Connection Glass Fibre Blade

3KW 5KW Horizontal Wind Turbine Flange Connection Glass Fibre Blade
3KW 5KW Horizontal Wind Turbine Flange Connection Glass Fibre Blade 3KW 5KW Horizontal Wind Turbine Flange Connection Glass Fibre Blade

Large Image :  3KW 5KW Horizontal Wind Turbine Flange Connection Glass Fibre Blade

Product Details:
Place of Origin: China-Jiangsu Province
Brand Name: Jiangsu Shenghuang
Certification: CE
Model Number: SH-A10KW
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: To Be Negotitaed
Packaging Details: Wooden Box
Delivery Time: 10-25 working days
Payment Terms: Negotiated, L/C, D/A, D/P, T/T, Western Union
Supply Ability: 800 sets per month

3KW 5KW Horizontal Wind Turbine Flange Connection Glass Fibre Blade

Name: 220V Horizonal Wind Turbine Customization: Colors/Voltage
Frequency: 50Hz 60Hz Colors: Customized
Flange Connection/Customization: YES Generator: 3 Phase Permanent Magnet
High Light:

5KW Horizontal Wind Turbine


3KW Horizontal Wind Turbine


horizontal axis wind machine Glass Fibre Blade

CE Certified 3KW 5KW Horizontal Wind Turbine Flange Connection Glass Fibre Blade


Wind turbines work on a simple principle: instead of using electricity to make wind—like a fan—wind turbines use wind to make electricity. Wind turns the propeller-like blades of a turbine around a rotor, which spins a generator, which creates electricity.


The terms "wind energy" and "wind power" both describe the process by which the wind is used to generate mechanical power or electricity. This mechanical power can be used for specific tasks (such as grinding grain or pumping water) or a generator can convert this mechanical power into electricity.


With so many different components and highly complex charge controllers, maintaining and monitoring a hybrid solar-wind system requires some knowledge and know-how.


Regarding how to get started with a hybrid solar-wind system

Before investing in a solar-wind hybrid energy system, you need to have a clear idea of ​​your energy consumption.


An energy auditor can do this for you, or you can do it yourself using resources available online. An energy calculator like this one can help you figure out how much energy you're using, depending on the appliances in your home.Performing these calculations will also help you identify any areas where monthly energy consumption can be reduced, thereby reducing the size and cost of the required hybrid energy system.


A wind-solar hybrid energy system is a solid investment, but can provide uninterrupted energy year-round. Not only will it save you on your monthly utility bills, but it can prove to be more reliable than the National Grid.




1. Low Start-up Wind Speed
2. Three Blades
3. Flange Connection with easy installation
4. Certified with CE,ROHS and ISO 9001 2000
5. Customized Colors
6. High-efficiency Three Phase PMG Generator



Product Parameter


Model SH-A1000 SH-A1500 SH-A2000 SH-A2500 SH-A3000 SH-A5000 SH-A10K SH-A15K SH-A20K
Rated Power 1KW 1.5KW 2KW 2.5KW 3KW 5KW 10KW 15KW 20KW
Maximum Power 1.2KW 1.7KW 2.2KW 2.7KW 3.2KW 5.5KW 11KW 17KW 22KW
Nominal Voltage 48V/96V 48V/96V 48V/96V 48V/96V 96V/120V/220V 120V/220V/380V 120V/220V/380V 120V/220V/380V 120V/220V/380V
Rotor Diameter 2.8m 3.2m 3.2m 3.6m 4.8m 5.6m 7m 8m 9.8m
Weight 60kg 70kg 70kg 80kg 160kg 150kg 260kg 320kg 380kg
Package Weight 70kg 80kg 88kg 95kg 176kg 310kg 400kg 390kg 440kg
Package Size(mm) 1660*380*420 1630*420*450 1630*420*450 1830*420*450 2550*480*500
Start-up Wind Speed 3m/s
Rated Wind Speed 11m/s
Survival Wind Speed 50m/s
Blade Quantity 3 piece
Blade Material FRP
Generator Housing Material Carbon Steel
Packing Wooden Box
Generator Type 3 Phase Permanent Magnet Generator
alnico magnet NdFeB
brake mode electromagnetism
The wind adjustment Automatically adjust to windward
Working temperature -40℃-80℃

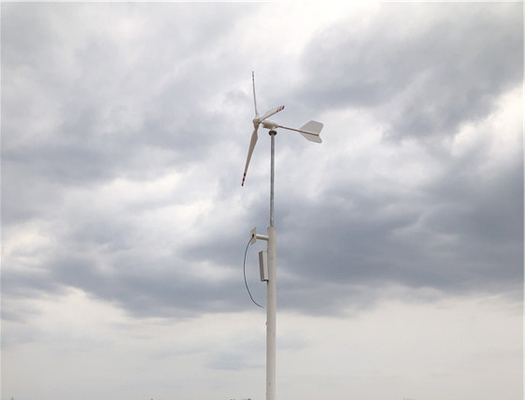

3KW 5KW Horizontal Wind Turbine Flange Connection Glass Fibre Blade 0

What is the best material for wind turbine blades?

Most blades are made of glass fiber reinforced polyester or epoxy resin. Carbon fiber or Kevlar is also used as reinforcement. Nowadays, the possible use of wood compounds, such as wood epoxy or wood fiber epoxy, is being studied.



How many blades are best for a wind turbine?
Generally, most horizontal axis wind turbines have three blades. The decision to design a three blade turbine was a compromise. Due to its reduced resistance, the single blade design is the best number to achieve maximum efficiency,hwever,one-blade design makes the whole set of wind turbine generator not stable.



How can you increase the efficiency of a wind turbine?
Doubling the diameter of turbine blades will increase the available power of wind energy by four times. Therefore, if the wind speed is low, larger diameter turbine blades are needed to obtain the maximum wind power efficiency.



Why are 3 blade turbines preferred?
For three blades, the angular momentum remains constant, because when one blade is upward, the other two point to an angle. So the turbine can rotate with the wind.


What happens if a wind turbine spins too fast?

On the other hand, if the wind turbine rotates too fast, it may cause mechanical damage; And two create a "wall" to resist the wind to safely rotate the turbine to generate electricity. Most wind turbines have a maximum speed at which they can operate normally.



Will adding more blades to a windmill make it go faster?

Larger and longer turbine blades mean higher aerodynamic efficiency. Generating more electricity in a turbine means less energy is lost when it enters the transmission system and from there into the generator.



Why do some wind turbines not turn?
But why do you see that a stationary wind turbine may not turn? It is mainly for one of the following two reasons: they are being maintained or need to be maintained. The wind is not strong enough for them to operate, or the wind is too strong for them to operate



Company Profile


Jiangsu Shenghuang New Energy Technology Co..Ltd. is located in Wuxi Liangxi district Jinshan North science and Technology Industrial Park, is a factory commitment to wind generators, solar monitoring system, wind and solar complementary monitoring system, photovoltaic system, wind and solar complementary controller,inverter,Gel battery, Lithium Battery Development and integrated application of green energy saving and environmental protection technology enterprises.


Focus on the development of solar power, wind-solar power generation system integration,the business consists of wind and solar monitoring system, Wind Turbine Grid and off-grid system PV system equipment design and procurement, complete sets, feasibility study and installation commissioning .
