Product Details:
|
| Rated Power: | 5KW | Customization: | Logo |
|---|---|---|---|
| Blade Material: | Glass Fibre | Product Name: | 5000W X Type Vertical Axis Wind Turbine Generator |
| Voltage: | 120V | Generator Type: | Permanent Magnet Generator |
| High Light: | 5kw vertical axis wind turbine,120V vertical axis wind turbine generator,IP54 Residential Vawt |
||

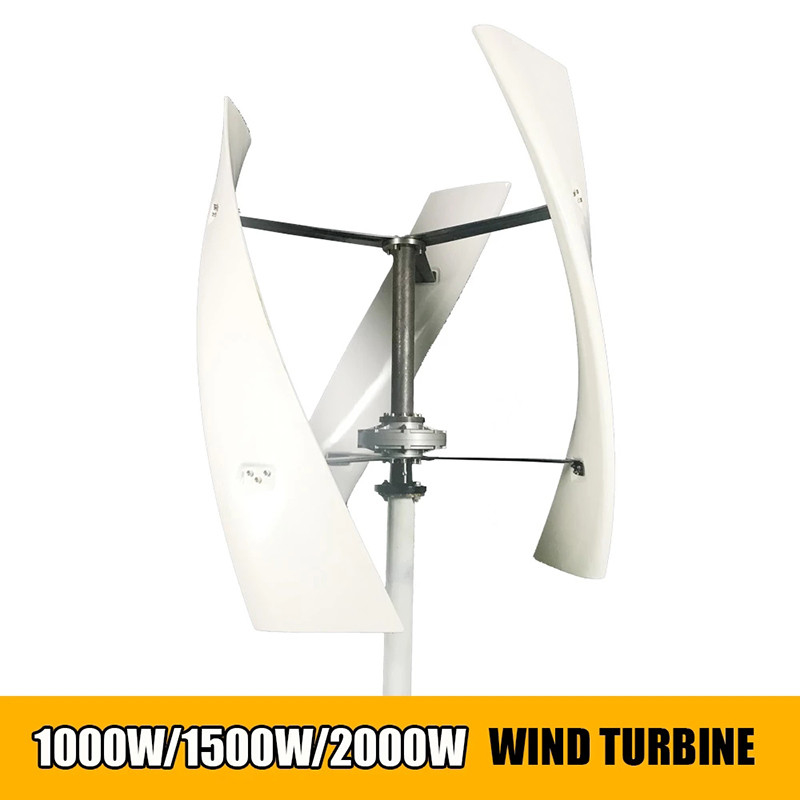

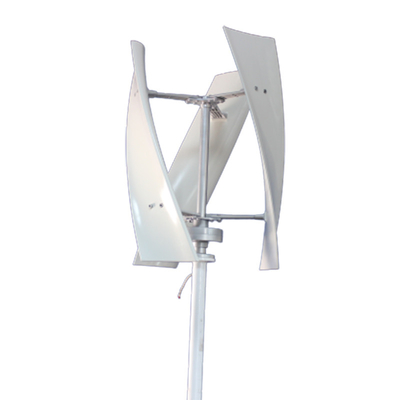

Curved Blade Design Vertical Axis Turbine 5KW 120V, Vertical Wind Turbine With IP54 Protection Low Noise
A vertical axis wind turbine (VAWT) is a wind turbine with the main rotor axis running vertically. VAWT does not need to be pointed towards the wind.Vertical axis windmill/turbine, 300W to 30kW vertical magnetic windmill with permanent magnet generator PMG and grid-tied wind inverter. Small wind turbines used in residential applications typically range in size from 400 watts to 20 kilowatts, depending on the amount of electricity you want to generate.
A typical home uses about 10,649 kWh per year (about 877 kWh per month). Depending on the average wind speed in the region, a wind turbine rated between 5-15 kW is required to make a significant contribution to this demand. In an area with an average annual wind speed of 14 mph (6.26 m/s), a 1.5 kW wind turbine would meet the needs of a household requiring 300 kWh per month.
A professional installer will help you determine the size of the turbine you need. First, create an energy budget. Since energy efficiency is often less expensive than energy production, reducing household electricity use may be more cost-effective and will reduce the size of wind turbines required.The height of the wind turbine tower also affects the amount of electricity produced by the turbine. A professional installer should help you determine the desired tower height.
| Model | SH-X600 | SH-X800 | SH-X1000 | SH-X1500 |
| Rated Power | 600W | 800W | 1000W | 1500W |
| Maximum Power | 650W | 850W | 1150W | 1650W |
| Rated Voltage | 12V/24V | 12V/24V/48V | 24V/48V/96V | 48V/96V/120V |
| Start-up Wind Speed | 2.0m/s | 2.0m/s | 2.0m/s | 2.0m/s |
| Rated Wind Speed | 10m/s | 10m/s | 10m/s | 12m/s |
| Survival Wind Speed | 40m/s | 40m/s | 40m/s | 40m/s |
| Number of Blades | 3 | 3 | 3 | 3 |
| Blade Height | 0.8m | 1.4m | 1.8m | 1.8m |
| Blade Material | Glass Fibre | |||
| Type of Generator | Three-phase AC Permanent Magnet Generator | |||
| Magnetic Steel Material | NdFeB | |||
| Control System | Electromagnet | |||
| Working Temperature | -40℃-80℃ | |||
| Design Life | 20 Years | |||
| Model | SH-X2000 | SH-X3000 | SH-X5000 | SH-X10000 |
| Rated Power | 2000W | 3000W | 5000W | 10KW |
| Maximum Power | 2200W | 3200W | 5500W | 11KW |
| Rated Voltage | 48V/96V/120V/220V | 96V/120V/220V | 96V/120V/220V/380V |
96V/120V/220V/380V |
| Start-up Wind Speed | 2.0m/s | 2.0m/s | 2.0m/s | 2.0m/s |
| Rated Wind Speed | 12m/s | 12m/s | 12m/s | 13m/s |
| Survival Wind Speed | 40m/s | 40m/s | 40m/s | 40m/s |
| Number of Blades | 3 | 3 | 3 | 3 |
| Blade Height | 2.1m | 2.1m | 2.8m | 3.6m |
| Blade Material | Glass Fiber | |||
| Type of Generator | Three-phase AC Permanent Magnet Generator | |||
| Magnetic Steel Material | NdFeB | |||
| Control System | Electromagnet | |||
| Working Temperature | -40℃-80℃ | |||
| Design Life | 20 Years | |||
Some features of VAWT make people choose it over HAWT for residential and commercial use. Let's see what benefits VAWT can bring to your home or office.
1. You don't need to set the turbine too high off the ground. Even if you don't have the proper roof placement, you can easily build the turbine close to the ground. Just make sure the area is clear of any obstructions.
2. The maintenance cost of such turbines is much lower than that of horizontal turbines. Due to the close proximity of the turbine to the ground, necessary maintenance is easy and safe.
3. If you're an animal lover, you'll love the fact that vertical axis wind turbines are bird friendly and won't harm wildlife.
4. These turbines don't make as much noise as the HAWT. Operating noise is much lower than conventional turbines.
5. You don't need to point the turbine towards the wind. They work well even when exposed to different wind directions.
6. No additional mechanism is required to operate.
7. You can set up multiple VAWTs close to each other. It is not necessary to have large fields and farms.
8. Suitable for areas where towering structures are not allowed.
9. You can easily transport turbines from one place to another.
10.Vertical axis wind turbines are very economical and suitable for small residential energy production. Great for urban areas.
Compared to horizontal turbines, their cost is much lower.
Many of these turbines are resistant to various weather elements. You can easily choose a unit that best suits your local environment.
Product Feature
1. Low start-up wind speed and operating vibration
2. Adopting Flange connection, convenient installation and maintenance
3. Low Noise Level
4. Can be installed on roof top
5. High Efficiency
6. Workable to do hybrid with solar panel.
FAQ
1.Q:Does the system install easy?
--A:Very easy.Every customer can do it by themselves.We will supply the components for installation and detailed manual.If you still have any confusion,our technician can support you by video to make sure there is no problem.
2. Q:Distance between wind turbine,controller and battery?
--A:Normally,it will be better within 10 meters from wind turbine to controller,and controller to batteries.The distance between batteries and inverter is within 20-50 meters.
3.Q:For horizontal wind turbines vs vertical wind turbines,which kind of efficiency is better?
--A:For same watts and same wind speed,the output of horizontal wind turbines is more efficient than that of vertical wind turbines.But if the wind speed is very slowly,we suggest you to use our vertical SS type.If the wind speed is over 8 m/s,our wind turbine are also with around 80-90% efficiency.The popular points is there is no noise.
