Three Phase Permanent Magnet Horizontal Wind Turbine 3KW 5KW 220V Low Speed Wind Turbine

China Shenghuang New Energy Technology Co.,Ltd certification
China Shenghuang New Energy Technology Co.,Ltd certification
Customer Reviews
Fasten packing!Thanks for the good service!I will place mass order soon!

—— Zenia

I bough this style before,but it cannot produce electricity.I try buy same style from this supplier.I am so luck,and it is higher quality.The best is that it can produce electricity.

—— Lena

I'm Online Chat Now

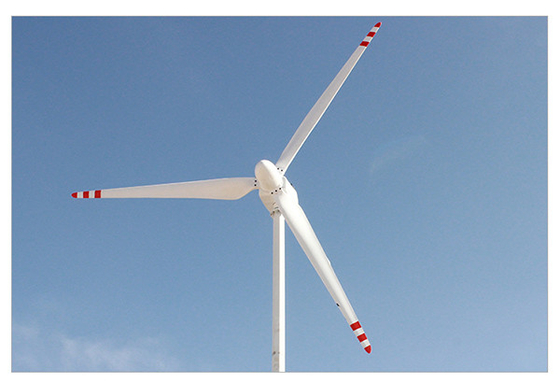

Three Phase Permanent Magnet Horizontal Wind Turbine 3KW 5KW 220V Low Speed Wind Turbine

Three Phase Permanent Magnet Horizontal Wind Turbine 3KW 5KW 220V Low Speed Wind Turbine
Three Phase Permanent Magnet Horizontal Wind Turbine 3KW 5KW 220V Low Speed Wind Turbine Three Phase Permanent Magnet Horizontal Wind Turbine 3KW 5KW 220V Low Speed Wind Turbine

Large Image :  Three Phase Permanent Magnet Horizontal Wind Turbine 3KW 5KW 220V Low Speed Wind Turbine

Product Details:
Place of Origin: China-Jiangsu Province
Brand Name: Jiangsu Shenghuang
Certification: CE
Model Number: SH-A3000
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: To Be Negotiated
Packaging Details: Wooden Box
Delivery Time: 10-25 working days
Payment Terms: Negotiated, L/C, D/A, D/P, T/T, Western Union
Supply Ability: 800 sets per month

Three Phase Permanent Magnet Horizontal Wind Turbine 3KW 5KW 220V Low Speed Wind Turbine

Name: 3kw Horizonal Wind Turbine Rated Power: 3000W
Application: Home/Yacht/Remote Area/Communication Station/Street Lamp Colors: White/Red/Customized
Design Life: 20 Years Phase: 3 Phase
High Light:

Permanent Magnet Horizontal Wind Turbine


Horizontal Wind Turbine 3KW


220V low speed wind turbine

Three Phase Permanent Magnet Horizontal Wind Turbine 3KW 5KW 220V With Low Start-up Wind Speed

Wind turbines work on a simple principle: instead of using electricity to make wind—like a fan—wind turbines use wind to make electricity. Wind turns the propeller-like blades of a turbine around a rotor, which spins a generator, which creates electricity.


The terms "wind energy" and "wind power" both describe the process by which the wind is used to generate mechanical power or electricity. This mechanical power can be used for specific tasks (such as grinding grain or pumping water) or a generator can convert this mechanical power into electricity.


Small wind energy systems can be connected to electrical distribution systems. These are called grid-connected systems. Grid-connected wind turbines can reduce utility power consumption for lighting, appliances, electrical heating and cooling, and vehicle charging. If the turbines cannot provide the required energy, the utility company will make up the difference. When the wind power system produces more electricity than the home needs, the excess electricity is credited and used to offset future use of utility power.


Modern grid-connected wind turbines will only operate when the utility grid is available. When configured to work with storage to form a home microgrid to provide backup power, they can also operate during power outages.


Wind power can be used in isolated off-grid or microgrid systems that are not connected to the distribution grid. In these applications, small wind power systems can be combined with other components, including small solar power systems, to create hybrid systems. Hybrid power systems can provide reliable off-grid power to homes, farms, or even entire communities (for example, a co-living project) far from the nearest utility line.


1.Low Start-up Wind Speed
2.Three Blades
3.Flange Connection with easy installation
4.Certified with CE,ROHS and ISO 9001 2000
5.Customized Colors
6.High-efficiency Three Phase PMG Generator






3.Home, Openning Plaza lighting.

4.Wind&Solar Hybrid System

5.Monitoring device




Product Parameter


Model SH-A1000 SH-A1500 SH-A2000 SH-A2500 SH-A3000 SH-A5000 SH-A10K SH-A15K SH-A20K
Rated Power 1KW 1.5KW 2KW 2.5KW 3KW 5KW 10KW 15KW 20KW
Maximum Power 1.2KW 1.7KW 2.2KW 2.7KW 3.2KW 5.5KW 11KW 17KW 22KW
Nominal Voltage 48V/96V 48V/96V 48V/96V 48V/96V 96V/120V/220V 120V/220V/380V 120V/220V/380V 120V/220V/380V 120V/220V/380V
Rotor Diameter 2.8m 3.2m 3.2m 3.6m 4.8m 5.6m 7m 8m 9.8m
Weight 60kg 70kg 70kg 80kg 160kg 150kg 260kg 320kg 380kg
Package Weight 70kg 80kg 88kg 95kg 176kg 310kg 400kg 390kg 440kg
Package Size(mm) 1660*380*420 1630*420*450 1630*420*450 1830*420*450 2550*480*500
Start-up Wind Speed 3m/s
Rated Wind Speed 11m/s
Survival Wind Speed 50m/s
Blade Quantity 3 piece
Blade Material FRP
Generator Housing Material Carbon Steel
Packing Wooden Box
Generator Type 3 Phase Permanent Magnet Generator
alnico magnet NdFeB
brake mode electromagnetism
The wind adjustment Automatically adjust to windward
Working temperature -40℃-80℃



Three Phase Permanent Magnet Horizontal Wind Turbine 3KW 5KW 220V Low Speed Wind Turbine 0

What is the best material for wind turbine blades?

Most blades are made of glass fiber reinforced polyester or epoxy resin. Carbon fiber or Kevlar is also used as reinforcement. Nowadays, the possible use of wood compounds, such as wood epoxy or wood fiber epoxy, is being studied.



How many blades are best for a wind turbine?
Generally, most horizontal axis wind turbines have three blades. The decision to design a three blade turbine was a compromise. Due to its reduced resistance, the single blade design is the best number to achieve maximum efficiency,hwever,one-blade design makes the whole set of wind turbine generator not stable.


Which generator is used in Wind Turbine Generator?

Generally speaking,the most common type of generator that used is Permanent Magnet Generator,others can be Magnetic Levitation Type.


How big a wind turbine do we need to power a house?

A typical household uses about 10649 kwh, with an average of 877 kwh per month. According to the average wind speed in the region, a wind turbine with a rated power in the range of 5 to 15 kW is required to make a significant contribution to this demand.


Are Wind Turbine Generators AC or DC?

Wind Turbine Generator Produces AC,you need apply inverter to transfer the AC to DC.


How does the wind turbine generator work?

Wind turbines usually operate on a simple principle: instead of using electricity to generate wind (such as fans), wind turbines use wind to generate electricity. The wind rotates the propeller like blades of the turbine in the rotor, thereby turning the generator to generate electricity



Can I put a wind turbine in my back yard?

Most wind turbines are not small enough to be installed in the backyard - because larger size means more energy, and a single blade can be longer than a football field. Wind power is very noisy. Even if the wind farm is miles away, neighbors sometimes complain.


The scope of application continues to be expanded. In addition to the traditional application of small wind turbines for the purpose of powering TV for users in the vast agricultural and remote areas, due to the soaring prices of gasoline, diesel and other fuels, and the lack of smooth supply channels, users in inland area, rivers and lakes, fishing boats, border posts, troops, meteorology, microwave stations, etc who use diesel power generation will gradually switch to wind power generation or wind-solar hybrid power generation. In addition, small wind turbines are also installed in ecological parks, tree-lined paths, villa courtyards and other places as landscapes for people to enjoy leisurely.


Due to the improvement of the living standards of farmers and herdsmen and the continuous increase of electricity consumption, the power of single unit small wind turbines continues to increase,accounting for 80% of the total annual output. As the majority of farmers are eager to use electricity uninterrupted, the promotion and application of "wind-solar hybrid power generation system" has been significantly accelerated, and the development of multiple units has become the development direction for a period of time in the future.


Wind-solar hybrid multi-unit series power generation system is to install multiple low-power wind turbines in the same place, to charge multiple large-capacity battery packs at the same time, and control the output uniformly by a high-power control inverter. The advantage of this configuration is that:


(1) The technology of small wind turbines is mature, the structure is simple, the quality is stable, safe, reliable and economical

(2) Easy to assemble, disassemble, transport, maintain, and operate;

(3) If maintenance or shutdown is required, the rest of the units will generate electricity as usual, which will not affect the normal use of the system;

(4) Multiple wind-solar hybrid power generation systems in clusters naturally become a scenic spot and a green power station without environmental pollution.


Company Profile


Jiangsu Shenghuang New Energy Technology Co..Ltd. is located in Wuxi Liangxi district Jinshan North science and Technology Industrial Park, is a factory commitment to wind generators, solar monitoring system, wind and solar complementary monitoring system, photovoltaic system, wind and solar complementary controller,inverter,Gel battery, Lithium Battery Development and integrated application of green energy saving and environmental protection technology enterprises.


Focus on the development of solar power, wind-solar power generation system integration,the business consists of wind and solar monitoring system, Wind Turbine Grid and off-grid system PV system equipment design and procurement, complete sets, feasibility study and installation commissioning .
