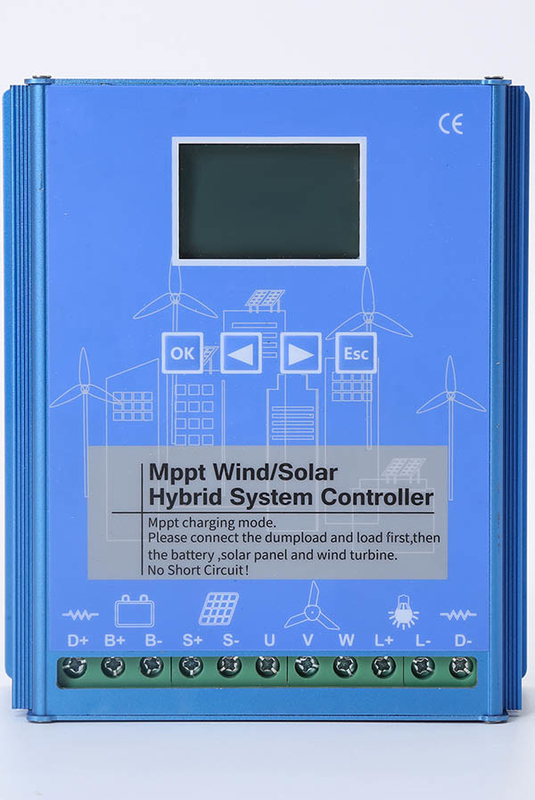

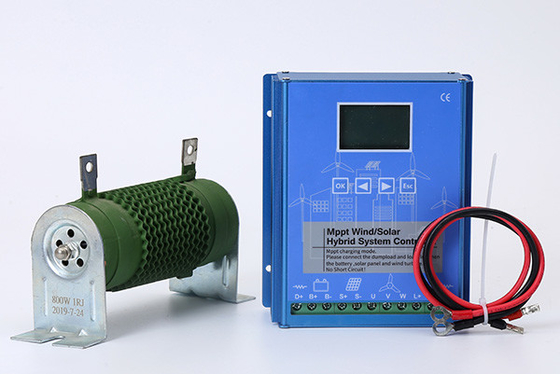

CE MPPT Solar Charge Controller 12V 24V Wind Solar Hybrid Controller

CE MPPT Solar Charge Controller 12V 24V Wind Solar Hybrid Controller
CE MPPT Solar Charge Controller 12V 24V Wind Solar Hybrid Controller CE MPPT Solar Charge Controller 12V 24V Wind Solar Hybrid Controller

Large Image :  CE MPPT Solar Charge Controller 12V 24V Wind Solar Hybrid Controller

Product Details:
Place of Origin: China-Jiangsu Province
Brand Name: Jiangsu Shenghuang
Certification: CE
Model Number: 350W 12V/700W 24V
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: To Be Negotiated
Packaging Details: Carton Packaging
Delivery Time: 15-20 Working Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 800 Sets Per Month

CE MPPT Solar Charge Controller 12V 24V Wind Solar Hybrid Controller

Product Name: MPPT Solar Charge Controller Rated Voltage: 12V-48V
Rated Current: 10A 20A 40A Warranty: 5 Years
Type: MPPT CE Certification: Yes
High Light:

CE MPPT Solar Charge Controller


24V Wind Solar Hybrid Controller


12V Wind Solar Hybrid Controller

CE Certified MPPT Solar Charge Controller 12V 24V Wind Solar Hybrid Controller


Product Feature

SECM series solar MPPT controllers are intelligent controllers specially designed for small off-grid photovoltaic power generation systems. Based on the advanced MPPT control algorithm design, this series of products adopts an integrated all-cast aluminum heat dissipation shell, which is elegant, economical and practical.


As the name suggests, hybrid systems combine two or more modes of power generation, often using renewable technologies such as solar photovoltaic (PV) and wind turbines. Hybrid systems provide a high level of energy security through hybrid power generation and are often combined with storage systems (batteries, fuel cells) or small fossil fuel generators to ensure maximum power supply reliability and safety.


Due to advances in renewable energy technology and the subsequent increase in the price of petroleum products, hybrid renewable energy systems are becoming more popular as stand-alone power systems to supply power in remote areas. Hybrid energy systems, or hybrids, typically consist of two or more renewable energy sources that are used together to improve system efficiency and achieve a greater balance of energy supply.


Most of us already know how solar/wind/biomass power generation systems work, however, all of these power generation systems have some drawbacks. For example, solar panels are expensive to install and cannot get peak output at night or on cloudy days. Similarly, wind turbines cannot operate safely at high wind speeds, while low wind speeds produce very little power. Plant biomass collapses at low temperatures.



CE MPPT Solar Charge Controller 12V 24V Wind Solar Hybrid Controller 0




Rated Voltage 12V/24V 12V/24VAuto 48V24V/48VAuto
PV Maximum Input 80V 130V
Rated Current 10A 20A 30A 40A 10A 20A 30A
Maximum PV Input KW 130W (12V) 260W (12V) 390W (12V) 520W (12V) 260W (24V) 520W (24V) 780W (24V)
260W (24V) 520W (24V) 780W (24V) 1040W (24V) 520W (48V) 1040W (48V) 1560W (48V)
No-load Current(DC) <0.05A
Power Source Battery or Solar Panel
Charge Mode MPPT Charge Mode
Load Capacity Multi Mode
Display LCD
Display Parameter Battery: voltage, electricity, current, power, cumulative power generation, current power generation, equipment address; Photo-voltaic power, voltage, current; Load: mode, power, current, fault code: Temperature: temperature, temperature code, etc.
Protection Solar battery anti-reverse charging protection, battery open-circuit protection, battery reverse connection protection, overload protection, etc.
Heat Dissipation Aluminum Heat Dissipation
Range of working temperature -20~+ 55°CJ3585%RH(No Condensation)
Optional USB Charge,RS232RS485/GPRS Communication
Netweisht Gross Weight 0.7-0.8KG0.9-1KG
Product SizePackaging Size 131.9*145.5*61.Smm'196*180*109




Solar anti-reverse charging: In the case of poor light such as at night, the voltage of the battery may be higher than the terminal voltage of the solar cell array. The controller has an anti-reverse charging circuit to prevent the battery from reverse charging the solar cell.


Reverse battery connection protection: When the battery is reversely connected, the controller will not work and no display will be displayed. An internal fuse protects the controller circuit. If the battery does not work properly after connecting the positive and negative poles of the battery correctly, just replace the fuse.


Battery open circuit protection: After long-term use, the battery may have an open circuit or poor contact. The controller will protect the device itself from damage when the battery is open circuited. Please check the wiring connections regularly.


overvoltage and Load overload protection: When the battery voltage reaches the overvoltage point, the controller will disconnect the photovoltaic charging circuit. The controller load will automatically cut off the circuit in case of overload.


Power failure protection: When the controller is working normally, when the battery falls off or the lithium battery protection board is protecting, the controller will stabilize the photovoltaic voltage at the equipment working voltage point to prevent equipment damage.


Lightning protection: Lightning protection refers to the last level of protection necessary for equipment. For lightning-prone areas, it is necessary to use a multi-level lightning protection system composed of special lightning protection devices. If the user has this requirement, it is necessary to increase the corresponding power distribution system and cost, which should be stated when ordering.
