Product Details:
|
| Product Name: | 12V 24V MPPT Solar Charge Controller | Rated Voltage: | 12V 24V |
|---|---|---|---|
| Rated Current: | 10A 20A 40A | Warranty: | 5 Years |
| Type: | MPPT | CE Certification: | Yes |
| High Light: | Wind And Solar Hybrid Controller,wind solar charge controller 12V,wind solar controller 800W |
||
Product Feature

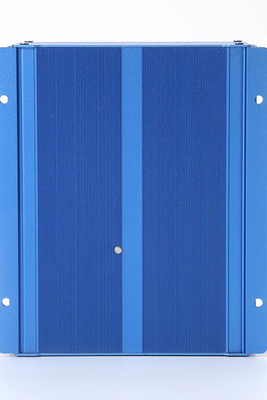

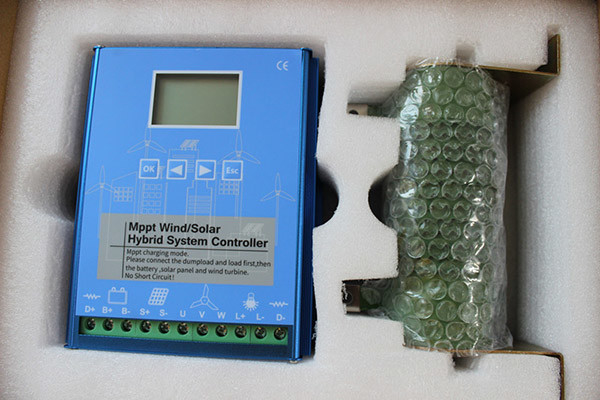

SECM series solar MPPT controllers are intelligent controllers specially designed for small off-grid photovoltaic power generation systems. Based on the advanced MPPT control algorithm design, this series of products adopts an integrated all-cast aluminum heat dissipation shell, which is elegant, economical and practical.
As the name suggests, hybrid systems combine two or more modes of power generation, often using renewable technologies such as solar photovoltaic (PV) and wind turbines. Hybrid systems provide a high level of energy security through hybrid power generation and are often combined with storage systems (batteries, fuel cells) or small fossil fuel generators to ensure maximum power supply reliability and safety.
Some of the advantages of a hybrid solar and wind system are:
1. Uninterruptible Power Supply: Combining two or more power generation technologies with energy storage technologies will never leave consumers without electricity. If we consider a mix of solar and wind, both solar and wind can generate electricity during the day. Wind can also generate electricity at night, and if there is energy storage, it can continue to supply power all the time.
2. Increased reliability: Installing two or more energy systems increases the reliability of the system. As in a solar-wind hybrid system, wind can generate electricity at night, or solar can generate electricity when there is no wind. Similar to energy storage, reliability is further improved when there is no sun and wind in the hybrid solar-wind system.
3. Low life cycle cost: Renewable energy in a hybrid system results in lower life cycle costs due to variations in the supply to the load from different power generation systems. Due to proper load synchronization between different generators, the maintenance and operating costs of hybrid energy systems are gradually reduced.
| Rated Voltage | 12V/24V 12V/24VAuto | 48V24V/48VAuto | |||||
| PV Maximum Input | 80V | 130V | |||||
| Rated Current | 10A | 20A | 30A | 40A | 10A | 20A | 30A |
| Maximum PV Input KW | 130W (12V) | 260W (12V) | 390W (12V) | 520W (12V) | 260W (24V) | 520W (24V) | 780W (24V) |
| 260W (24V) | 520W (24V) | 780W (24V) | 1040W (24V) | 520W (48V) | 1040W (48V) | 1560W (48V) | |
| No-load Current(DC) | <0.05A | ||||||
| Power Source | Battery or Solar Panel | ||||||
| Charge Mode | MPPT Charge Mode | ||||||
| Load Capacity | Multi Mode | ||||||
| Display | LCD | ||||||
| Display Parameter | Battery: voltage, electricity, current, power, cumulative power generation, current power generation, equipment address; Photo-voltaic power, voltage, current; Load: mode, power, current, fault code: Temperature: temperature, temperature code, etc. | ||||||
| Protection | Solar battery anti-reverse charging protection, battery open-circuit protection, battery reverse connection protection, overload protection, etc. | ||||||
| Heat Dissipation | Aluminum Heat Dissipation | ||||||
| Range of working temperature | -20~+ 55°CJ35〜85%RH(No Condensation) | ||||||
| Optional | USB Charge,RS232RS485/GPRS Communication | ||||||
| Netweisht Gross Weight | 0.7-0.8KG0.9-1KG | ||||||
| Product SizePackaging Size | 131.9*145.5*61.Smm'196*180*109 | ||||||
Solar anti-reverse charging: In the case of poor light such as at night, the voltage of the battery may be higher than the terminal voltage of the solar cell array. The controller has an anti-reverse charging circuit to prevent the battery from reverse charging the solar cell.
Reverse battery connection protection: When the battery is reversely connected, the controller will not work and no display will be displayed. An internal fuse protects the controller circuit. If the battery does not work properly after connecting the positive and negative poles of the battery correctly, just replace the fuse.
Battery open circuit protection: After long-term use, the battery may have an open circuit or poor contact. The controller will protect the device itself from damage when the battery is open circuited. Please check the wiring connections regularly.
overvoltage and Load overload protection: When the battery voltage reaches the overvoltage point, the controller will disconnect the photovoltaic charging circuit. The controller load will automatically cut off the circuit in case of overload.
Power failure protection: When the controller is working normally, when the battery falls off or the lithium battery protection board is protecting, the controller will stabilize the photovoltaic voltage at the equipment working voltage point to prevent equipment damage.
Lightning protection: Lightning protection refers to the last level of protection necessary for equipment. For lightning-prone areas, it is necessary to use a multi-level lightning protection system composed of special lightning protection devices. If the user has this requirement, it is necessary to increase the corresponding power distribution system and cost, which should be stated when ordering.
Jiangsu Shenghuang New Energy Technology Co..Ltd. is located in Wuxi Liangxi district Jinshan North science and Technology Industrial Park, is a factory commitment to wind generators, solar monitoring system, wind and solar complementary monitoring system, photovoltaic system, wind and solar complementary controller,inverter,Gel battery, Lithium Battery Development and integrated application of green energy saving and environmental protection technology enterprises.
