Product Details:
|
| Product Name: | 800W MPPT Solar Charge Controller | Rated Voltage: | 24V |
|---|---|---|---|
| Rated Current: | 10A 20A 40A | Warranty: | 5 Years |
| Type: | MPPT | CE Certification: | Yes |
| High Light: | 800W MPPT Solar Charge Controller,24V MPPT Solar Charge Controller,small mppt charge controller |
||
Product Feature

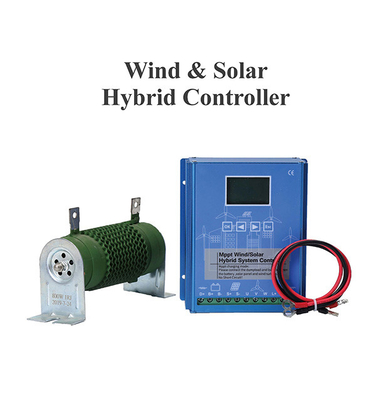

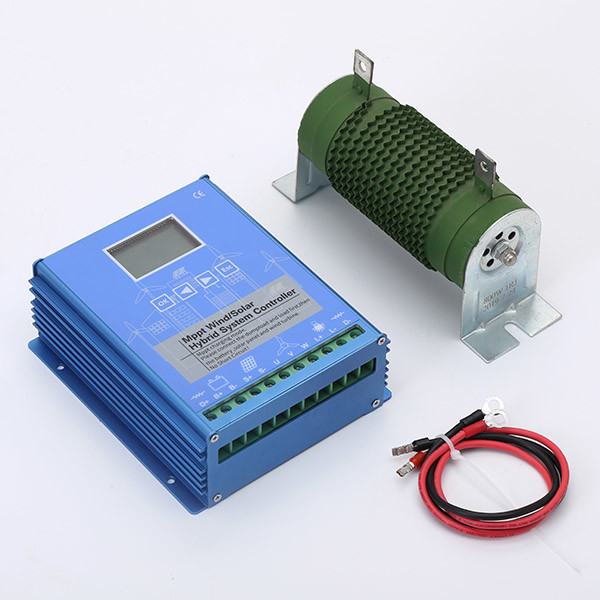

SECM series solar MPPT controllers are intelligent controllers specially designed for small off-grid photovoltaic power generation systems. Based on the advanced MPPT control algorithm design, this series of products adopts an integrated all-cast aluminum heat dissipation shell, which is elegant, economical and practical.
As the name suggests, hybrid systems combine two or more modes of power generation, often using renewable technologies such as solar photovoltaic (PV) and wind turbines. Hybrid systems provide a high level of energy security through hybrid power generation and are often combined with storage systems (batteries, fuel cells) or small fossil fuel generators to ensure maximum power supply reliability and safety.
A hybrid energy system consists of multiple power generating devices or systems. The term "hybrid" is a biological term now used in science and technology to refer to the mixing of two or more genetically distinct systems.
Although solar photovoltaics produce cheaper intermittent electricity during daylight hours, it needs to be supported by a sustainable source of electricity to provide 24/7 power. Solar thermal power plants with thermal storage are a clean, sustainable way to generate electricity 24/7.When the extracted solar energy is found to be in excess during the day, they can perfectly meet the load demand and work as a baseload power plant. A suitable combination of solar thermal (thermal storage type) and solar photovoltaic can perfectly match load fluctuations without the need for expensive battery storage.
| Rated Voltage | 12V/24V 12V/24VAuto | 48V24V/48VAuto | |||||
| PV Maximum Input | 80V | 130V | |||||
| Rated Current | 10A | 20A | 30A | 40A | 10A | 20A | 30A |
| Maximum PV Input KW | 130W (12V) | 260W (12V) | 390W (12V) | 520W (12V) | 260W (24V) | 520W (24V) | 780W (24V) |
| 260W (24V) | 520W (24V) | 780W (24V) | 1040W (24V) | 520W (48V) | 1040W (48V) | 1560W (48V) | |
| No-load Current(DC) | <0.05A | ||||||
| Power Source | Battery or Solar Panel | ||||||
| Charge Mode | MPPT Charge Mode | ||||||
| Load Capacity | Multi Mode | ||||||
| Display | LCD | ||||||
| Display Parameter | Battery: voltage, electricity, current, power, cumulative power generation, current power generation, equipment address; Photo-voltaic power, voltage, current; Load: mode, power, current, fault code: Temperature: temperature, temperature code, etc. | ||||||
| Protection | Solar battery anti-reverse charging protection, battery open-circuit protection, battery reverse connection protection, overload protection, etc. | ||||||
| Heat Dissipation | Aluminum Heat Dissipation | ||||||
| Range of working temperature | -20~+ 55°CJ35〜85%RH(No Condensation) | ||||||
| Optional | USB Charge,RS232RS485/GPRS Communication | ||||||
| Netweisht Gross Weight | 0.7-0.8KG0.9-1KG | ||||||
| Product SizePackaging Size | 131.9*145.5*61.Smm'196*180*109 | ||||||
Solar anti-reverse charging: In the case of poor light such as at night, the voltage of the battery may be higher than the terminal voltage of the solar cell array. The controller has an anti-reverse charging circuit to prevent the battery from reverse charging the solar cell.
Reverse battery connection protection: When the battery is reversely connected, the controller will not work and no display will be displayed. An internal fuse protects the controller circuit. If the battery does not work properly after connecting the positive and negative poles of the battery correctly, just replace the fuse.
Battery open circuit protection: After long-term use, the battery may have an open circuit or poor contact. The controller will protect the device itself from damage when the battery is open circuited. Please check the wiring connections regularly.
overvoltage and Load overload protection: When the battery voltage reaches the overvoltage point, the controller will disconnect the photovoltaic charging circuit. The controller load will automatically cut off the circuit in case of overload.
Power failure protection: When the controller is working normally, when the battery falls off or the lithium battery protection board is protecting, the controller will stabilize the photovoltaic voltage at the equipment working voltage point to prevent equipment damage.
Lightning protection: Lightning protection refers to the last level of protection necessary for equipment. For lightning-prone areas, it is necessary to use a multi-level lightning protection system composed of special lightning protection devices. If the user has this requirement, it is necessary to increase the corresponding power distribution system and cost, which should be stated when ordering.
Jiangsu Shenghuang New Energy Technology Co..Ltd. is located in Wuxi Liangxi district Jinshan North science and Technology Industrial Park, is a factory commitment to wind generators, solar monitoring system, wind and solar complementary monitoring system, photovoltaic system, wind and solar complementary controller,inverter,Gel battery, Lithium Battery Development and integrated application of green energy saving and environmental protection technology enterprises.
