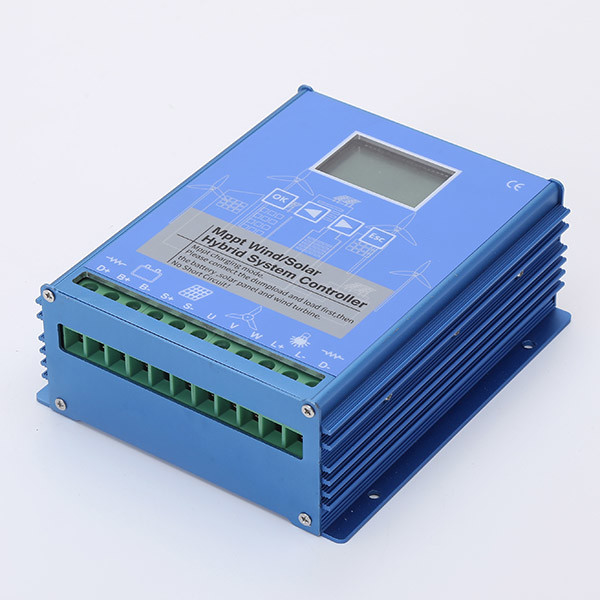

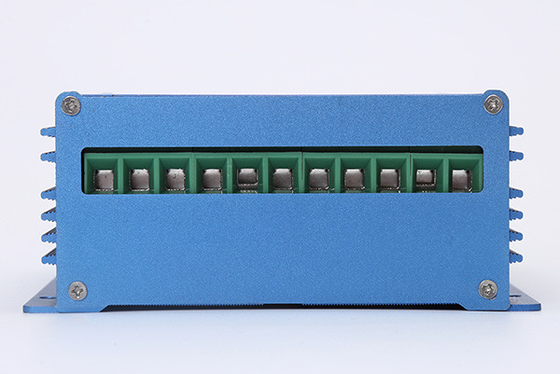

12V 24V 800W MPPT Based Solar Charge Controller MPPT Hybrid Controller

12V 24V 800W MPPT Based Solar Charge Controller MPPT Hybrid Controller
12V 24V 800W MPPT Based Solar Charge Controller MPPT Hybrid Controller 12V 24V 800W MPPT Based Solar Charge Controller MPPT Hybrid Controller

Large Image :  12V 24V 800W MPPT Based Solar Charge Controller MPPT Hybrid Controller

Product Details:
Place of Origin: China-Jiangsu Province
Brand Name: Jiangsu Shenghuang
Certification: CE
Model Number: 800W
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: To Be Negotiated
Packaging Details: Carton Packaging
Delivery Time: 15-20 Working Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 800 Sets Per Month

12V 24V 800W MPPT Based Solar Charge Controller MPPT Hybrid Controller

Product Name: 12V MPPT Solar Charge Controller Rated Voltage: 12V 24V
Rated Current: 10A 20A 40A Warranty: 5 Years
Type: MPPT CE Certification: Yes
High Light:

800W MPPT Based Solar Charge Controller


24V MPPT Hybrid Controller


12V MPPT Hybrid Controller

12V 24V 800W MPPT Solar Charge Controller Hybrid With Wind Power Generation CE Certification


Product Feature

SECM series solar MPPT controllers are intelligent controllers specially designed for small off-grid photovoltaic power generation systems. Based on the advanced MPPT control algorithm design, this series of products adopts an integrated all-cast aluminum heat dissipation shell, which is elegant, economical and practical.


As the name suggests, hybrid systems combine two or more modes of power generation, often using renewable technologies such as solar photovoltaic (PV) and wind turbines. Hybrid systems provide a high level of energy security through hybrid power generation and are often combined with storage systems (batteries, fuel cells) or small fossil fuel generators to ensure maximum power supply reliability and safety.


A hybrid energy system consists of multiple power generating devices or systems. The term "hybrid" is a biological term now used in science and technology to refer to the mixing of two or more genetically distinct systems.


You probably have a hybrid car where you have both gasoline and electric power. Similarly, genetically distinct power generation systems or energy sources, such as solar, wind, biomass, geothermal, marine, hydro, and diesel, can be used for hybrid power generation.


It depends on the availability of the resource and the technical ability of the person installing it in the most efficient way. The economics of such a hybrid system should be well understood and should be economically profitable to justify its sustainability.





Rated Voltage 12V/24V 12V/24VAuto 48V24V/48VAuto
PV Maximum Input 80V 130V
Rated Current 10A 20A 30A 40A 10A 20A 30A
Maximum PV Input KW 130W (12V) 260W (12V) 390W (12V) 520W (12V) 260W (24V) 520W (24V) 780W (24V)
260W (24V) 520W (24V) 780W (24V) 1040W (24V) 520W (48V) 1040W (48V) 1560W (48V)
No-load Current(DC) <0.05A
Power Source Battery or Solar Panel
Charge Mode MPPT Charge Mode
Load Capacity Multi Mode
Display LCD
Display Parameter Battery: voltage, electricity, current, power, cumulative power generation, current power generation, equipment address; Photo-voltaic power, voltage, current; Load: mode, power, current, fault code: Temperature: temperature, temperature code, etc.
Protection Solar battery anti-reverse charging protection, battery open-circuit protection, battery reverse connection protection, overload protection, etc.
Heat Dissipation Aluminum Heat Dissipation
Range of working temperature -20~+ 55°CJ3585%RH(No Condensation)
Optional USB Charge,RS232RS485/GPRS Communication
Netweisht Gross Weight 0.7-0.8KG0.9-1KG
Product SizePackaging Size 131.9*145.5*61.Smm'196*180*109



12V 24V 800W MPPT Based Solar Charge Controller MPPT Hybrid Controller 0


Solar anti-reverse charging: In the case of poor light such as at night, the voltage of the battery may be higher than the terminal voltage of the solar cell array. The controller has an anti-reverse charging circuit to prevent the battery from reverse charging the solar cell.


Reverse battery connection protection: When the battery is reversely connected, the controller will not work and no display will be displayed. An internal fuse protects the controller circuit. If the battery does not work properly after connecting the positive and negative poles of the battery correctly, just replace the fuse.


Battery open circuit protection: After long-term use, the battery may have an open circuit or poor contact. The controller will protect the device itself from damage when the battery is open circuited. Please check the wiring connections regularly.


overvoltage and Load overload protection: When the battery voltage reaches the overvoltage point, the controller will disconnect the photovoltaic charging circuit. The controller load will automatically cut off the circuit in case of overload.


Power failure protection: When the controller is working normally, when the battery falls off or the lithium battery protection board is protecting, the controller will stabilize the photovoltaic voltage at the equipment working voltage point to prevent equipment damage.


Lightning protection: Lightning protection refers to the last level of protection necessary for equipment. For lightning-prone areas, it is necessary to use a multi-level lightning protection system composed of special lightning protection devices. If the user has this requirement, it is necessary to increase the corresponding power distribution system and cost, which should be stated when ordering.
